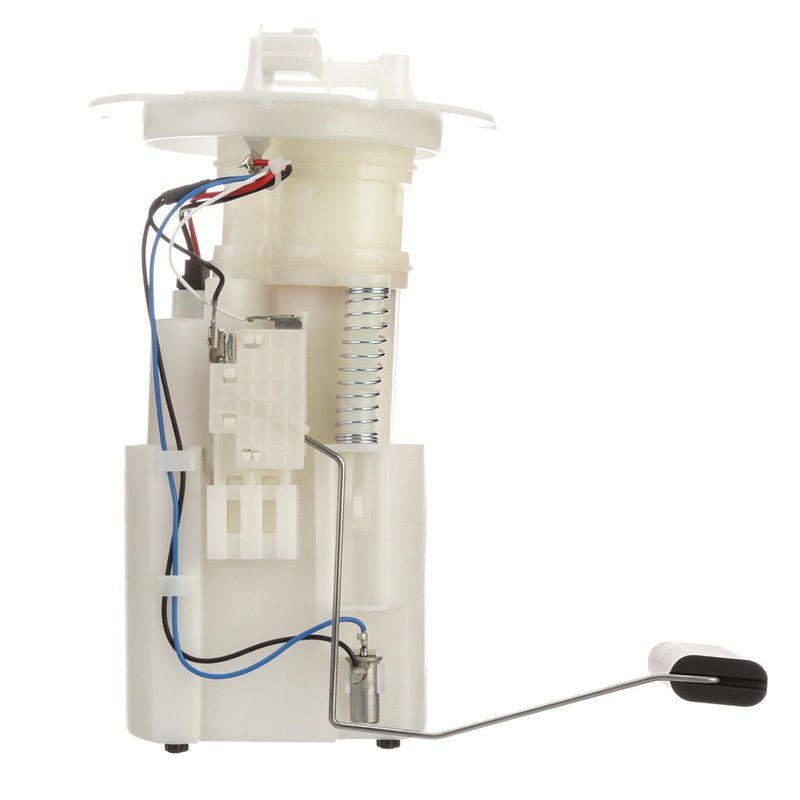

Delphi FG1086 Fuel Pump Module Assembly

Delphi FG1086 Fuel Pump Module Assembly Overview

The Delphi FG1086 fuel pump module assembly is designed specifically for the Infiniti G35, providing reliable fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures consistent performance with integrated components for a streamlined installation.

• Compatible with Infiniti G35 models
• 12.0 Volt electric fuel pump with 26 GPH average flow rating
• Includes fuel level sender assembly with float arm
• Internal strainer inlet and quick connect outlet (0.375 inch diameter)
• Regulator and gasket/seal included for proper sealing and pressure control
• Blade-type male terminals with 5 terminal quantity for secure electrical connections
• System pressure rated at 51 psi with maximum pressure of 80 psi
• Standard replacement grade part for dependable operation

Technical Details and Features

The Delphi FG1086 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet with a 0.375-inch outside diameter, facilitating efficient fuel flow and easy installation. The module includes a regulator to maintain system pressure at 51 psi, with a maximum pressure rating of 80 psi, ensuring stable fuel delivery under various operating conditions.

Electrical connections are made via five blade-type male terminals, providing secure and reliable contact. The fuel level sender assembly with float arm is integrated into the module, offering accurate fuel level readings for the Infiniti G35. The pump draws an average current of 8 amps and delivers an average flow rate of 26 gallons per hour, suitable for the vehicle's fuel demands.

Applications and Problem Resolution

• Replaces faulty or failing fuel pump modules in Infiniti G35 vehicles
• Resolves issues with inconsistent fuel pressure or delivery
• Corrects inaccurate fuel level readings caused by damaged sender units
• Eliminates fuel leaks with included gasket and seal components
• Addresses electrical connection problems with robust blade terminals

Installation Notes and Tips

Installation of the Delphi FG1086 fuel pump module assembly requires removal of the fuel tank to access the in-tank module. Ensure the vehicle's battery is disconnected before beginning work to prevent electrical hazards. Use the included gasket or seal to prevent fuel leaks and verify that all electrical terminals are securely connected. The quick connect outlet simplifies fuel line attachment, but confirm proper seating to avoid leaks. Follow the vehicle manufacturer's service manual for detailed removal and installation procedures.

Quality Assurance and Warranty

This Delphi fuel pump module assembly is a standard replacement part manufactured to meet OEM specifications for the Infiniti G35. It undergoes rigorous testing to ensure consistent performance and durability. While specific warranty details may vary, Delphi parts typically come with a limited warranty covering defects in materials and workmanship. Refer to the product documentation or supplier for exact warranty terms.
