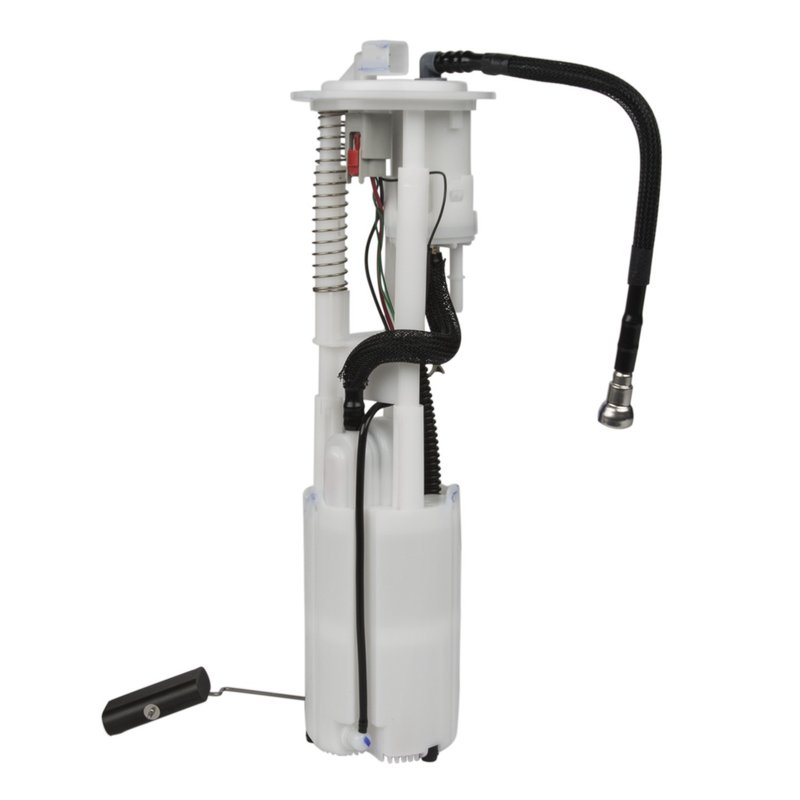

Delphi FG1091 Fuel Pump Module Assembly - Left

Delphi Fuel Pump Module Assembly Overview

The Delphi FG1091 fuel pump module assembly is designed for reliable fuel delivery in select Cadillac and Chevrolet vehicles. Engineered as an in-tank electric fuel pump, it supports gas fuel systems with integrated components to ensure consistent performance.

• Compatible with Cadillac Corvette and Chevrolet XLR models
• 12.0 Volt electric fuel pump with a maximum pressure of 80 psi
• Includes fuel level sender assembly and internal strainer for accurate fuel measurement and filtration
• Features a female quick connect outlet with 0.375 inch outside diameter
• Equipped with a regulator and gasket/seal for secure installation
• Blade-type male terminals with four connections for reliable electrical interface
• Average flow rating of 45 and system pressure of 58 psi

Technical Details and Specifications

The Delphi FG1091 fuel pump module assembly operates at 12 volts and is designed specifically for gasoline fuel systems. It features an internal strainer inlet and a female quick connect outlet, ensuring clean fuel delivery and easy connection. The pump includes a regulator to maintain consistent pressure up to 80 psi, with a system pressure rating of 58 psi. Electrical connections are made via four blade-type male terminals, supporting stable current draw averaging 9 amps. The fuel level sender assembly is integrated, providing accurate fuel level readings for the vehicle’s dashboard. This module is intended for in-tank installation on the left side of the fuel tank.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Cadillac Corvette
• Chevrolet XLR

Use the Delphi FG1091 to replace faulty or worn fuel pump modules in these models, ensuring proper fuel delivery and system pressure.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel pressure drops affecting engine performance and fuel efficiency
• Fuel contamination from inadequate filtration leading to injector clogging
• Electrical connection failures causing pump malfunction

Installation Notes and Tips

When installing the Delphi FG1091 fuel pump module assembly, ensure the following:

• Verify compatibility with your Cadillac Corvette or Chevrolet XLR model year and fuel system
• Use the included gasket or seal to prevent fuel leaks
• Handle the fuel level sender assembly carefully to avoid damage
• Confirm all electrical connections are secure on the four blade-type terminals
• Follow vehicle-specific service manual instructions for in-tank fuel pump replacement

Quality Assurance and Warranty

The Delphi FG1091 is a standard replacement grade fuel pump module assembly manufactured to meet OEM specifications. It includes a fuel pump module with float arm, seal, and instruction sheet for proper installation. Delphi products undergo rigorous testing to ensure durability and performance. Warranty coverage details should be confirmed with the parts provider or vehicle manufacturer.
