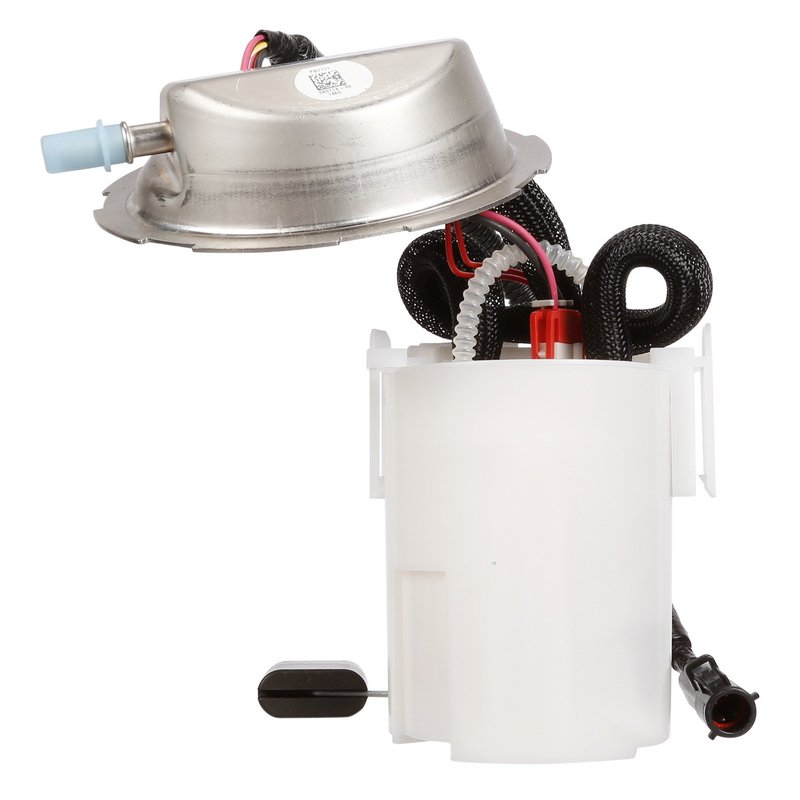

Delphi FG1111 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford Focus

The Delphi FG1111 fuel pump module assembly is designed specifically for Ford Focus models requiring a dependable in-tank fuel delivery solution. This electric fuel pump module ensures consistent fuel pressure and flow for optimal engine performance.

• Compatible with Ford Focus fuel systems
• Electric pump type with 13.0 voltage rating
• Includes fuel level sender assembly with float arm
• Maximum pressure rating of 78 psi and system pressure of 60 psi
• Internal strainer and quick connect outlet for efficient fuel filtration and connection
• Comes with gasket and seal for secure installation
• Four male pin terminals for reliable electrical connection

Technical Details of Delphi FG1111 Fuel Pump Module

This fuel pump module assembly features a 0.375-inch outlet outside diameter and a single quick connect outlet type, designed for seamless integration with the Ford Focus fuel system. The pump operates at an average current draw of 10 amps and delivers an average flow rating of 14 liters per hour, supporting consistent fuel delivery under various driving conditions. The internal strainer and included fuel level sender assembly help maintain fuel cleanliness and accurate fuel level readings. The module is designed for gasoline fuel type and includes a regulator to maintain system pressure at 60 psi, with a maximum pressure capacity of 78 psi.

Common Applications and Problem Resolution

• Replaces faulty or failing fuel pump modules in Ford Focus vehicles
• Resolves issues with inconsistent fuel pressure or engine stalling
• Addresses fuel level sender failures causing inaccurate fuel gauge readings
• Fixes fuel delivery interruptions due to clogged or damaged internal strainers
• Improves overall fuel system reliability and engine performance

Installation Notes and Tips

Installation of the Delphi FG1111 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the gasket and seal included in the package are properly seated to prevent fuel leaks. The four male pin terminals should be connected securely to the vehicle’s wiring harness. Use caution when handling the quick connect outlet to avoid damage. Follow the vehicle manufacturer’s service manual for detailed installation procedures and safety precautions.

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for fit, form, and function. The FG1111 is a standard replacement grade part, providing reliable performance for Ford Focus fuel systems. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
