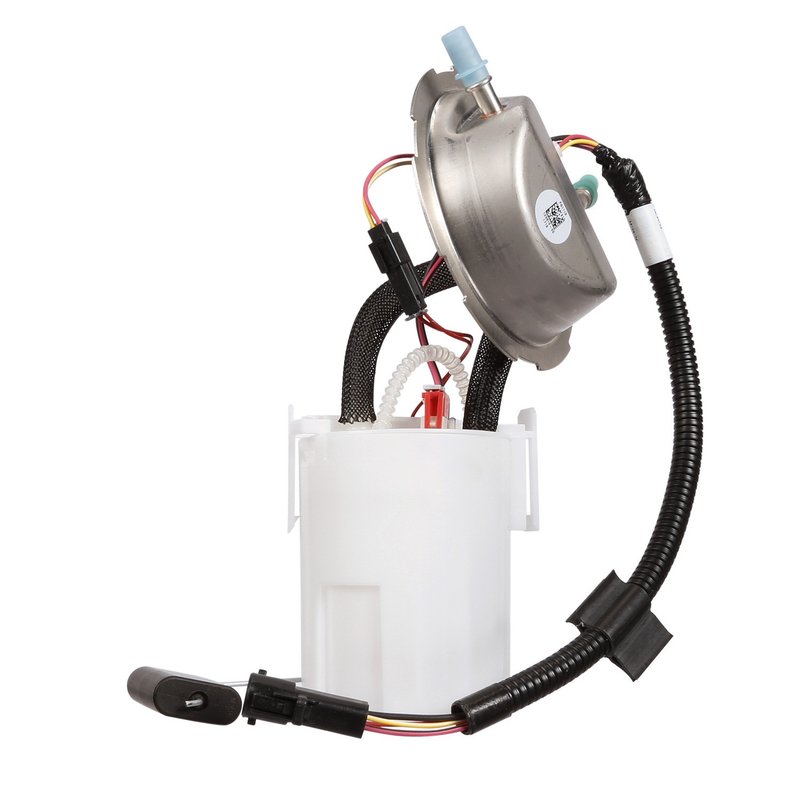

Delphi FG1113 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford Focus

The Delphi FG1113 fuel pump module assembly is designed specifically for Ford Focus models requiring a dependable in-tank fuel delivery solution. This electric fuel pump module ensures consistent fuel pressure and flow, supporting optimal engine performance.

• Compatible with Ford Focus fuel systems
• Electric pump type with 13.0 voltage rating
• Includes fuel level sender assembly with float arm
• Maximum pressure rating of 78 psi and system pressure of 55 psi
• Internal strainer and quick connect outlet for efficient fuel filtration and connection
• Four male pin terminals for secure electrical connections
• Comes with gasket and seal for proper installation
• Standard replacement grade for reliable performance

Technical Details of Delphi FG1113 Fuel Pump Module

This fuel pump module assembly operates at 13 volts and is designed for gasoline fuel systems. It features an internal strainer inlet type and a quick connect outlet with a 0.375-inch outside diameter, ensuring compatibility with Ford Focus fuel lines. The module includes a regulator to maintain consistent fuel pressure up to 78 psi, with a system pressure rating of 55 psi. The assembly contains four male pin terminals, providing secure electrical connections and an average current draw of 10 amps. Resistance values range from 180 ohms when empty to 10 ohms when full, supporting accurate fuel level readings through the included fuel level sender assembly. The package includes the fuel pump module with float arm, seal, and an instruction sheet for installation guidance.

Applications and Problem Resolution

• Replaces faulty or failing fuel pump modules in Ford Focus vehicles
• Addresses issues with inconsistent fuel pressure or flow
• Resolves fuel level sender malfunctions affecting gauge accuracy
• Eliminates fuel delivery interruptions caused by clogged strainers
• Prevents engine performance problems related to fuel supply

Installation Notes and Tips

Installation of the Delphi FG1113 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure all electrical connections use the four-pin male terminals provided. Replace the included gasket and seal to prevent fuel leaks. Follow the instruction sheet carefully to maintain proper orientation of the float arm and secure the quick connect outlet. Verify system pressure after installation to confirm correct operation.

Quality Assurance and Warranty

Delphi provides this fuel pump module assembly as a standard replacement part, meeting OEM specifications for Ford Focus vehicles. The product includes a fuel level sender assembly and internal strainer to ensure durability and reliable performance. While specific warranty details are not provided here, Delphi parts typically come with manufacturer-backed quality assurance to support long-term use.
