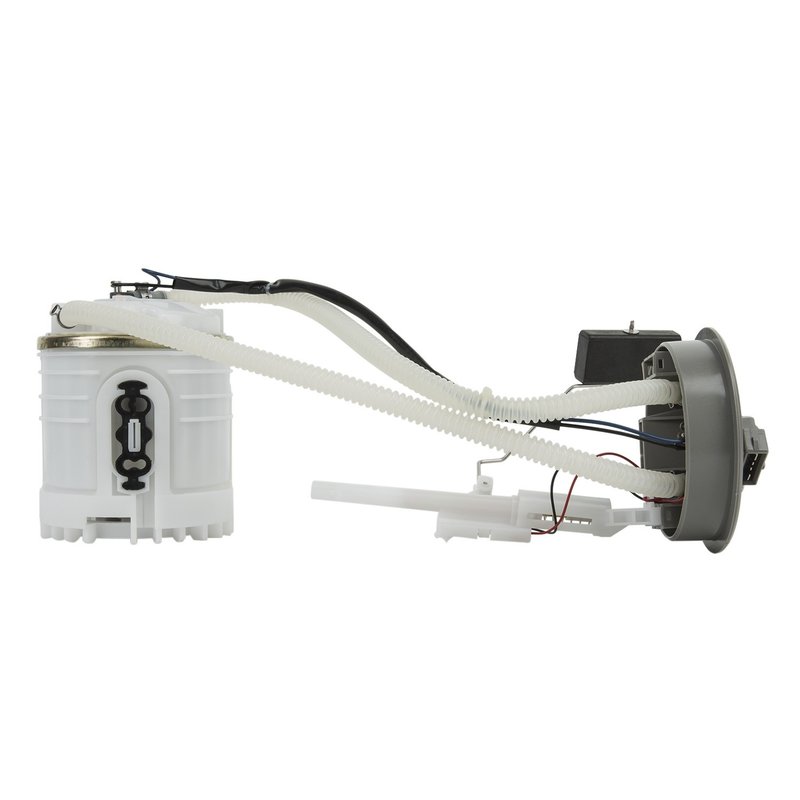

Delphi FG1122 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Volkswagen Vehicles

The Delphi FG1122 fuel pump module assembly is designed specifically for select Volkswagen models including the Cabrio, Corrado, Golf, Jetta, and Passat. This in-tank electric fuel pump ensures consistent fuel delivery and supports optimal engine performance for gas-powered vehicles.

• Electric fuel pump module assembly with internal strainer
• Compatible with Volkswagen Cabrio, Corrado, Golf, Jetta, and Passat
• 12.0 Volt operation with blade-type male terminals (4 terminals)
• Fuel outlet hose diameter of 0.375 inches with two outlets
• Includes fuel level sender assembly with float arm
• Average flow rating of 26 liters per hour and system pressure of 44 psi
• Standard replacement grade with internal strainer and no regulator included

Product Details and Specifications

The Delphi FG1122 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet type and a hose outlet type with two outlets, each having an outside diameter of 0.375 inches. The pump draws an average current of 5 amps and delivers a flow rating of 26 liters per hour, maintaining a system pressure of 44 psi and a maximum pressure rating of 99 psi. The module includes a fuel level sender assembly with a float arm to provide accurate fuel level readings. The terminal configuration consists of four male blade terminals, ensuring secure electrical connections. This assembly is intended for in-tank installation and does not include a regulator, gasket, or lock ring.

Compatible Volkswagen Models and Applications

This fuel pump module assembly is compatible with the following Volkswagen models:

• Volkswagen Cabrio
• Volkswagen Corrado
• Volkswagen Golf
• Volkswagen Jetta
• Volkswagen Passat

It is designed to replace the original equipment fuel pump module in these vehicles, supporting proper fuel delivery and engine performance.

Common Issues Addressed by the Delphi FG1122 Fuel Pump

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings due to faulty sender assembly
• Reduced engine performance caused by insufficient fuel pressure
• Fuel pump noise or electrical connection problems
• Fuel system contamination affecting pump operation

Installation Notes and Tips

When installing the Delphi FG1122 fuel pump module assembly, ensure the vehicle’s fuel system is depressurized and the battery is disconnected to prevent electrical hazards. This module is designed for in-tank installation and requires careful handling of the internal strainer and float arm. Verify the terminal connections match the vehicle’s wiring harness and confirm the outlet hose diameter compatibility. Follow the included instruction sheet for proper installation procedures and torque specifications. It is recommended to inspect the fuel tank and clean any debris before installation to prolong pump life.

Quality Assurance and Warranty Information

Delphi provides a standard replacement grade fuel pump module assembly engineered to meet OEM specifications. The FG1122 part number undergoes rigorous testing to ensure reliable performance and durability. While specific warranty terms may vary, Delphi products typically include a limited warranty covering defects in materials and workmanship. Consult product documentation or authorized sources for detailed warranty coverage.
