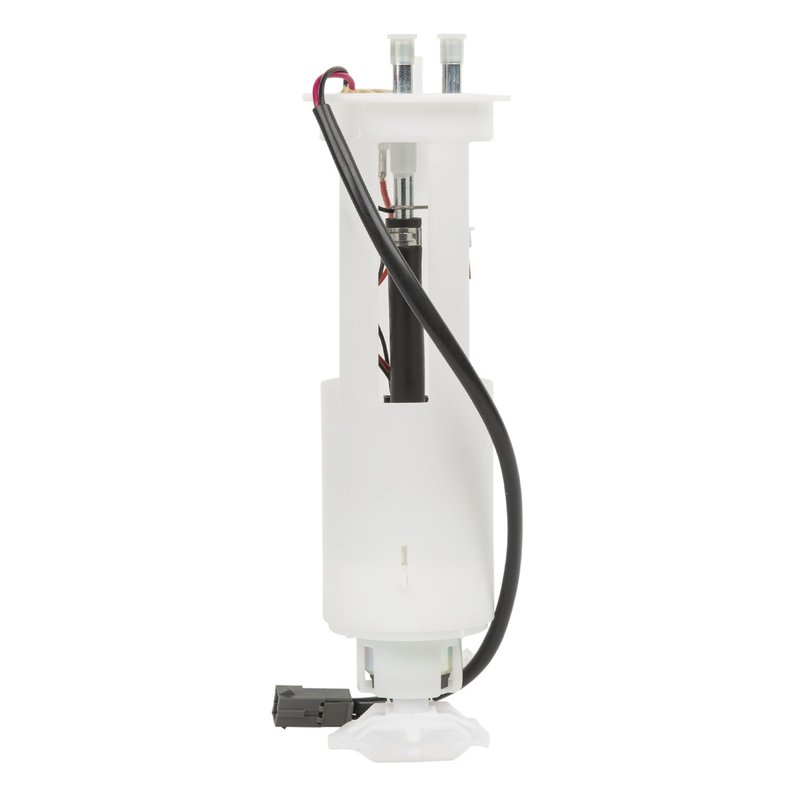

Delphi FG1123 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Volvo Vehicles

The Delphi FG1123 fuel pump module assembly is designed specifically for Volvo C70, S70, and V70 models. This in-tank electric fuel pump ensures consistent fuel delivery and supports optimal engine performance for gasoline-powered vehicles.

• Electric fuel pump module assembly with internal strainer
• Compatible with Volvo C70, S70, and V70 models
• 12.0 Volt operation with blade-type male terminals (2 terminals)
• Maximum pressure rating of 80 psi and system pressure of 51 psi
• Quick connect outlet type with 0.313 inch outside diameter
• Includes strainer but excludes regulator, gasket, lock ring, and fuel level sender assembly
• Average flow rating of 26 and average current draw of 5 amps

Technical Details and Specifications

The Delphi FG1123 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet type to prevent debris from entering the fuel system, enhancing durability and reliability. The pump uses a quick connect outlet with two outlets, each having an outside diameter of 0.313 inches, facilitating straightforward installation and secure fuel line connections. The blade-type male terminals (two in quantity) provide reliable electrical connectivity. This electric pump module supports a maximum pressure of 80 psi and maintains a system pressure of 51 psi, suitable for the fuel delivery requirements of Volvo C70, S70, and V70 models.

Applications and Problem Resolution

This fuel pump module assembly is intended for use in the fuel delivery system of compatible Volvo vehicles. It addresses several common fuel system issues, including:

• Inconsistent fuel pressure causing engine performance problems
• Fuel pump failure leading to engine stalling or no-start conditions
• Fuel contamination due to lack of proper filtration
• Electrical connection issues affecting pump operation
• Wear and tear from prolonged use in original fuel pump modules

Installation Notes and Tips

Installation of the Delphi FG1123 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. Use appropriate tools to disconnect the quick connect outlets and blade terminals carefully. Since the assembly does not include a gasket, lock ring, or fuel level sender assembly, verify the condition of these components and replace them if necessary. Follow the vehicle manufacturer’s service manual for torque specifications and safety precautions.

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet standard replacement grade specifications, ensuring reliable performance and compatibility with Volvo C70, S70, and V70 models. While this product does not include a fuel level sender assembly or regulator, it is engineered to maintain consistent fuel delivery under normal operating conditions. Warranty coverage details should be confirmed at the point of purchase or with the manufacturer.
