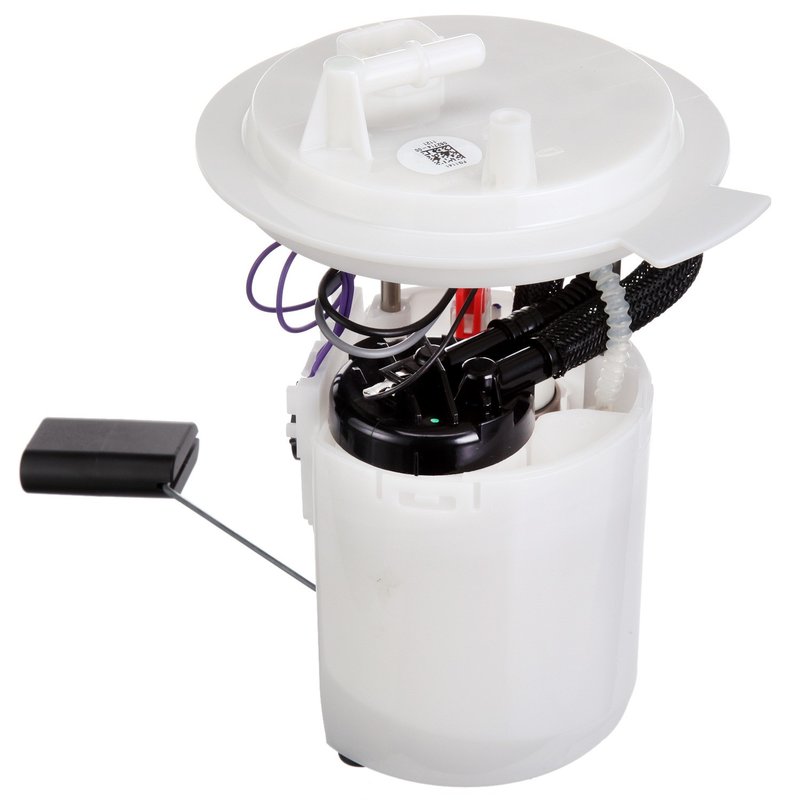

Delphi FG1141 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford, Lincoln, and Mercury

The Delphi FG1141 fuel pump module assembly is designed for precise fuel delivery in select Ford Fusion, Lincoln MKZ, and Mercury Milan models. This in-tank electric fuel pump ensures consistent pressure and flow for optimal engine performance.

Key Features of Delphi FG1141 Fuel Pump Module

• 12-volt electric pump with a maximum pressure of 62 psi
• Includes fuel level sender assembly with float arm for accurate fuel gauge readings
• Internal strainer inlet and quick connect outlet with 0.375-inch outside diameter
• Regulator and gasket/seal included for secure installation
• Four male pin terminals for reliable electrical connections
• Average flow rating of 20 and average current draw of 10 amps
• Standard replacement grade designed for gas fuel systems

Detailed Description of the Delphi FG1141 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG1141) is engineered as a direct replacement for in-tank fuel pumps in Ford Fusion, Lincoln MKZ, and Mercury Milan vehicles. The electric pump operates at 12 volts and maintains system pressure up to 59 psi, ensuring steady fuel delivery under various driving conditions. The module includes an internal strainer inlet to filter fuel before it reaches the pump, and a quick connect outlet for efficient fuel line attachment. The integrated fuel level sender assembly with float arm provides accurate fuel level readings to the vehicle’s dashboard. With four male pin terminals, the electrical connections are secure and compatible with factory wiring harnesses. The package also contains a gasket and seal to prevent leaks during installation.

Common Applications and Issues Addressed

• Restores proper fuel pressure and flow in Ford Fusion, Lincoln MKZ, and Mercury Milan
• Resolves fuel gauge inaccuracies caused by faulty sender assemblies
• Eliminates engine hesitation or stalling due to weak or failing fuel pumps
• Prevents fuel leaks with included gasket and seal components
• Replaces worn or damaged in-tank fuel pump modules to maintain engine efficiency

Installation Notes and Tips

• Ensure vehicle compatibility with Ford Fusion, Lincoln MKZ, or Mercury Milan before installation
• Disconnect the battery and relieve fuel system pressure prior to removal
• Handle the fuel pump module carefully to avoid damage to the float arm and electrical terminals
• Use the included gasket and seal to secure a leak-free fit
• Verify all electrical connections are properly seated on the four-pin male terminals

Quality Assurance and Warranty Information

The Delphi FG1141 fuel pump module assembly is manufactured to meet OEM specifications for reliable performance and durability. This standard replacement part undergoes rigorous testing to ensure consistent fuel delivery and accurate fuel level readings. Delphi provides a limited warranty covering defects in materials and workmanship, supporting long-term vehicle operation.
