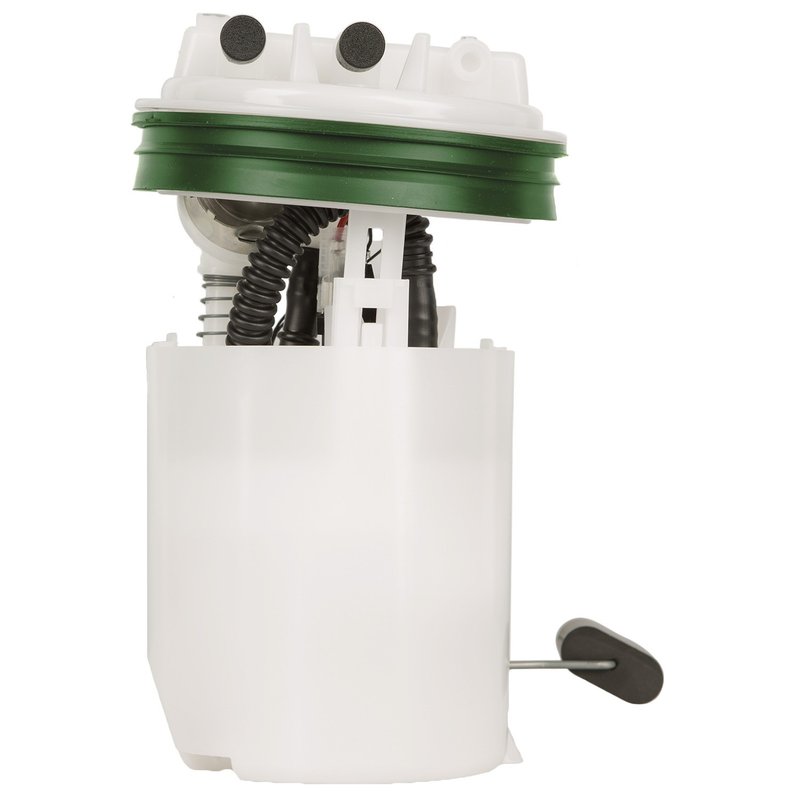

Delphi FG1145 Fuel Pump Module Assembly
| Brand | Delphi FG1145 |
|---|---|
| Average Current Draw | 7 |
| Average Flow Rating | 31 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | Internal |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Maximum Pressure | 94.0 |
| Outlet Outside Diameter | 0.313 |
| Outlet Quantity | 2 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | Yes |
| Resistance Ohms Empty | 120.0 |
| Resistance Ohms Full | 8.0 |
| Strainer Included | Yes |
| System Pressure | 45 psi |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 |
| Fits | Volvo · 10 vehicles |
Standard replacement. OE heritage is built into this fuel pump module assembly.
Electric fuel pump. Delivers 31 average flow rating with 45 psi system pressure.
Complete module. Includes regulator, strainer, gasket, and fuel level sender assembly.
Cross-references Genuine 30630596, Spectra Premium SP5039M and 69744 for the same application. See all 14.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi FG1145 Fuel Pump Module Assembly
The Delphi FG1145 fuel pump module assembly is a standard replacement for select Volvo S40 and Volvo V40 applications from 2000-2004. Built for in-tank gasoline systems, it combines the pump, fuel level sender assembly, regulator, strainer, gasket or seal, and float arm in one service part.
With OE-focused engineering informed by Delphi’s long history supplying automakers, this module is built for direct fuel system service on the Volvo S40 and V40. It is a practical choice when replacing a worn pump, inaccurate fuel level sender, or a module that no longer maintains proper fuel pressure.
Key Features
- Part number FG1145 fuel pump module assembly
- Fits 2000-2004 Volvo S40 and 2000-2004 Volvo V40
- In-tank electric fuel pump for gasoline applications
- Fuel pressure regulator included
- Fuel level sender assembly included
- Strainer and gasket or seal included
- Quick-connect outlet design with 2 outlets
- 12-volt system with blade terminals
- Maximum pressure rating of 94.0
- Average flow rating of 31
- Standard replacement grade
Detailed Description
Delphi FG1145 is engineered as an in-tank fuel pump module assembly for gasoline-powered Volvo S40 and Volvo V40 models. It includes the pump module, float arm, fuel level sender assembly, regulator, and internal strainer to support fuel delivery and tank-level reporting from a single replacement unit. The quick-connect outlet and blade terminal design support service on the original fuel system layout, while the 12-volt electric pump configuration matches the vehicle’s electrical requirements. Delphi’s OE heritage and broad aftermarket coverage are reflected in the component design and application focus. This part cross-references Spectra Premium SP5039M for the same application.
Common Problems This Part Can Address
- Hard starting caused by weak fuel delivery
- Engine stalling from inconsistent fuel pressure
- Fuel gauge readings that no longer match tank level
- Fuel pump noise or intermittent pump operation
- Fuel starvation under load in worn in-tank systems
Installation Notes and Tips
Fits 2000-2004 Volvo S40 and 2000-2004 Volvo V40. Clean the fuel tank before installing the fuel pump to prevent future seal problems, as noted in the fitment information. Verify connector style, outlet routing, and tank condition before installation. Confirm the vehicle uses a gasoline in-tank pump system and compare the original module layout to the FG1145 before service.
Quality Assurance
Delphi builds aftermarket fuel system parts using OE experience and application knowledge developed through decades of supplying original equipment to major automakers. FG1145 is a standard replacement fuel pump module assembly designed to meet the needs of the listed Volvo applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2004 | Volvo | S40 | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2004 | Volvo | V40 | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2003 | Volvo | S40 | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2003 | Volvo | V40 | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2002 | Volvo | S40 | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2002 | Volvo | V40 | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2001 | Volvo | S40 | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2001 | Volvo | V40 | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2000 | Volvo | S40 | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2000 | Volvo | V40 | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
