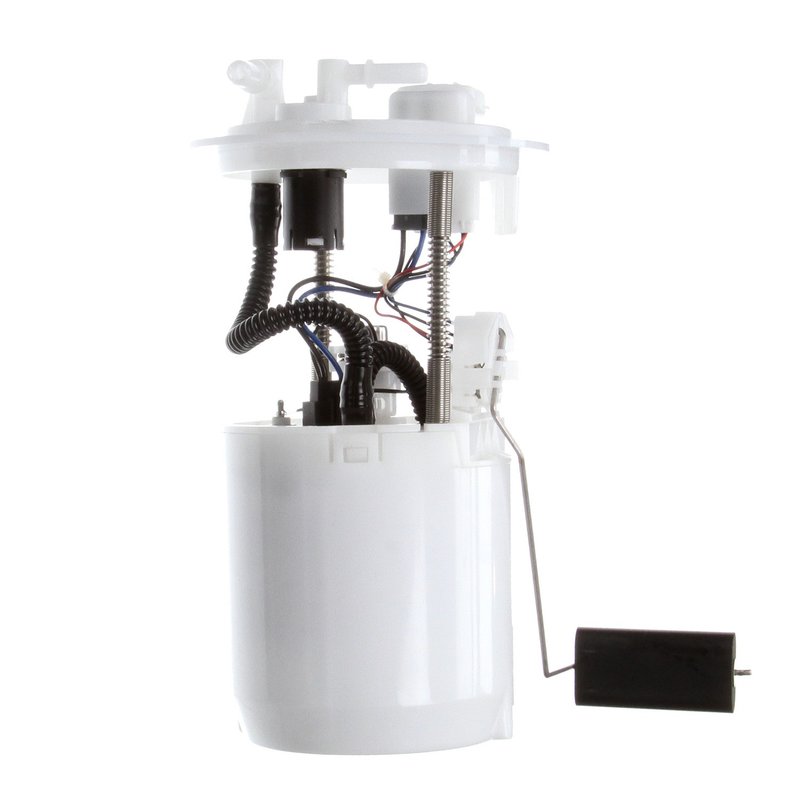

Delphi FG1146 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Nissan Murano

The Delphi FG1146 fuel pump module assembly is designed specifically for Nissan Murano models requiring a dependable in-tank fuel delivery solution. This electric fuel pump module ensures consistent fuel pressure and flow for optimal engine performance.

• Compatible with Nissan Murano vehicles
• 12.0 Volt electric fuel pump with integrated regulator
• Includes fuel level sender assembly with float arm
• Internal strainer inlet and quick connect outlet (0.375 inch diameter)
• Maximum pressure rating of 80 psi and system pressure of 44 psi
• Five male blade terminals for secure electrical connections
• Includes gasket and strainer for proper sealing and filtration

Technical Details and Features

The Delphi FG1146 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal electric pump with an average flow rating of 29 liters per hour and an average current draw of 5 amps. The module includes a fuel pressure regulator to maintain system pressure at 44 psi, with a maximum pressure capacity of 80 psi. The fuel outlet uses a quick connect type with two outlets, each having an outside diameter of 0.375 inches, facilitating straightforward installation and secure fuel line connections.

This module also incorporates a fuel level sender assembly with a float arm, providing accurate fuel level readings. The internal strainer inlet helps prevent contaminants from entering the fuel system, enhancing longevity and reliability. Electrical connections are made via five male blade terminals, ensuring compatibility with the Nissan Murano's wiring harness.

Applications and Problem Resolution

• Replacement for faulty or failing fuel pump modules in Nissan Murano
• Resolves issues with inconsistent fuel pressure or flow
• Addresses fuel level sender malfunctions affecting gauge accuracy
• Prevents fuel contamination with integrated internal strainer
• Eliminates electrical connection problems with secure blade terminals

Installation Notes and Tips

Installation of the Delphi FG1146 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the gasket included is properly seated to prevent fuel leaks. Verify electrical connections match the five male blade terminals on the module. Use caution when handling fuel lines and connectors, especially the quick connect outlets, to avoid damage. Follow vehicle-specific service manual instructions for safe and correct installation procedures.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for fit, form, and function. The FG1146 is a standard replacement grade part designed for reliable operation in Nissan Murano vehicles. It includes a gasket and strainer to ensure proper sealing and filtration. Warranty coverage details should be confirmed with the point of purchase or Delphi directly, as coverage may vary.
