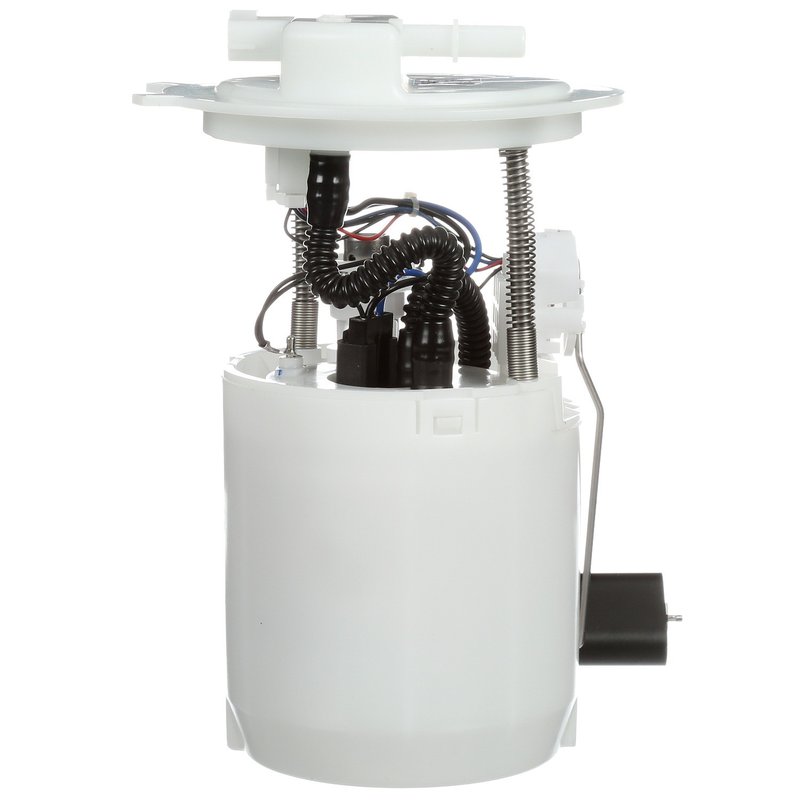

Delphi FG1149 Fuel Pump Module Assembly

Delphi FG1149 Fuel Pump Module Assembly Overview

The Delphi FG1149 fuel pump module assembly is designed specifically for Nissan Cube and Nissan Versa models. This in-tank electric fuel pump module ensures reliable fuel delivery and accurate fuel level readings, making it a suitable replacement for standard fuel system maintenance.

• Compatible with Nissan Cube and Nissan Versa vehicles
• Electric in-tank fuel pump with integrated fuel level sender assembly
• Includes regulator, internal strainer, and gasket for proper sealing
• Operates at 13.0 volts with a system pressure of 51 psi
• Features a quick connect outlet with 0.375 inch outside diameter
• Blade-type male terminals with 5 terminal quantity for secure electrical connections
• Average flow rating of 20 and average current draw of 7 amps

Technical Details and Specifications

The Delphi FG1149 fuel pump module assembly is engineered to meet the fuel delivery requirements of Nissan Cube and Versa models. It operates at a voltage of 13.0 volts and maintains a system pressure of 51 psi, with a maximum pressure rating of 80 psi. The pump type is electric and includes an internal strainer to prevent debris from entering the fuel system. The outlet is designed as a quick connect type with a 0.375 inch outside diameter, facilitating straightforward installation and secure fuel line connection.

This module also includes a fuel level sender assembly with resistance values ranging from 80 ohms when empty to 5 ohms when full, providing accurate fuel level readings. The assembly comes with a gasket or seal to ensure a proper fit and prevent leaks. The terminal type is blade with male gender and includes five terminals, supporting reliable electrical connections.

Applications and Common Issues Addressed

• Replacement for failing or noisy fuel pumps in Nissan Cube and Versa
• Resolves inconsistent fuel pressure or delivery problems
• Fixes inaccurate fuel gauge readings due to faulty sender assembly
• Addresses fuel leaks caused by worn seals or gaskets
• Improves engine performance by ensuring steady fuel flow

Installation Notes and Tips

Installation of the Delphi FG1149 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the vehicle’s battery is disconnected before beginning work to avoid electrical hazards. Use the included gasket or seal to prevent fuel leaks and verify that the quick connect outlet is securely attached to the fuel line. Check all blade terminals for proper connection and avoid damaging the float arm during installation. Follow the vehicle manufacturer’s service manual for torque specifications and safety precautions.

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The FG1149 is a standard replacement grade part designed to provide reliable operation within the specified parameters. This product includes a fuel level sender assembly and necessary seals to ensure proper performance. Warranty coverage details should be confirmed with the point of purchase or Delphi’s official documentation.
