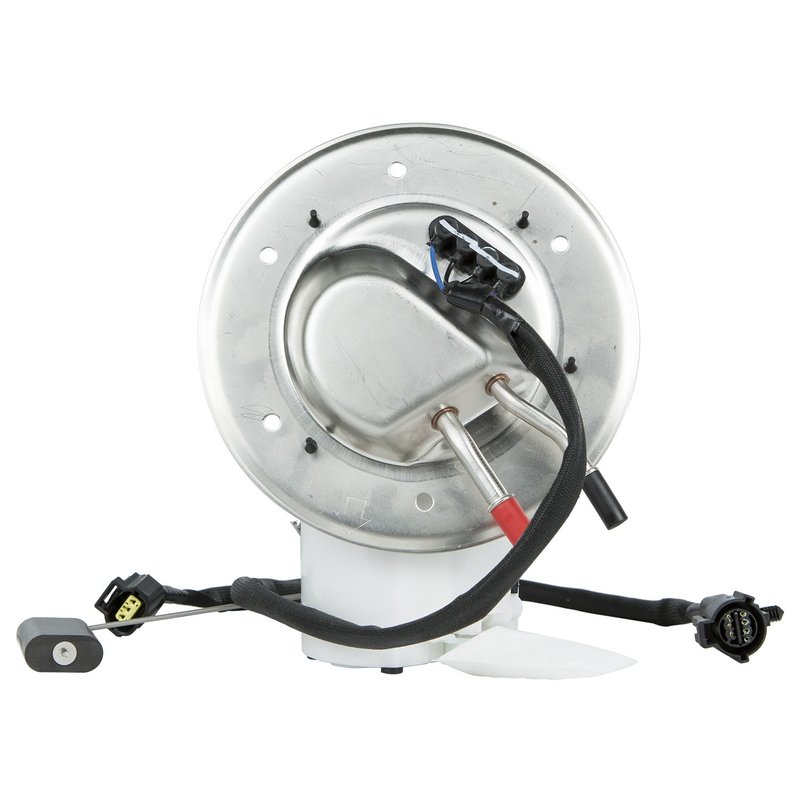

Delphi FG1151 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford Mustang

The Delphi FG1151 fuel pump module assembly is designed specifically for Ford Mustang models requiring a dependable in-tank electric fuel pump. Engineered to deliver consistent fuel flow and accurate fuel level readings, this module supports optimal engine performance and fuel efficiency.

• Electric fuel pump with 12.0 voltage operation
• In-tank design with external strainer for fuel filtration
• Includes fuel level sender assembly with float arm
• Quick connect outlet with 0.375 inch outside diameter
• Supports gas fuel type with a system pressure of 44 psi
• Seven female pin terminals for secure electrical connections
• Includes gasket or seal and strainer for installation readiness
• Average flow rating of 21 and maximum pressure of 80 psi

Detailed Product Description

The Delphi FG1151 fuel pump module assembly is a standard replacement part designed for Ford Mustang vehicles. This electric pump operates at 12 volts and is engineered to maintain a system pressure of 44 psi, with a maximum pressure rating of 80 psi. The module features an in-tank installation with an external strainer inlet type, ensuring clean fuel delivery and protecting the pump from contaminants. The outlet is a quick connect type with an outside diameter of 0.375 inches and includes two outlets for efficient fuel flow.

Equipped with seven female pin terminals, the module provides reliable electrical connections. The fuel level sender assembly with float arm is included, allowing accurate fuel level monitoring. Resistance values range from 15 ohms when empty to 160 ohms when full, supporting precise fuel gauge readings. The package contains the fuel pump module assembly, float arm, clips, and an instruction sheet for proper installation guidance.

Applications and Problem Solving

• Replaces faulty or failing fuel pump modules in Ford Mustang models
• Resolves inconsistent fuel pressure or flow issues
• Fixes inaccurate fuel level readings due to sender assembly failure
• Addresses fuel contamination problems with included external strainer
• Eliminates electrical connection issues with secure pin terminals

Installation Notes and Tips

Installation requires removal of the fuel tank to access the in-tank fuel pump module. Ensure all electrical connections are clean and secure, matching the seven female pin terminals. Replace the gasket or seal included in the package to prevent fuel leaks. Follow the instruction sheet carefully to avoid damage to the float arm and strainer during installation.

Quality Assurance and Warranty

The Delphi FG1151 is a standard replacement grade fuel pump module assembly manufactured to meet OEM specifications for Ford Mustang vehicles. It undergoes rigorous testing to ensure consistent fuel delivery and accurate fuel level readings. While specific warranty details are not provided, Delphi products typically adhere to industry standards for reliability and durability.
