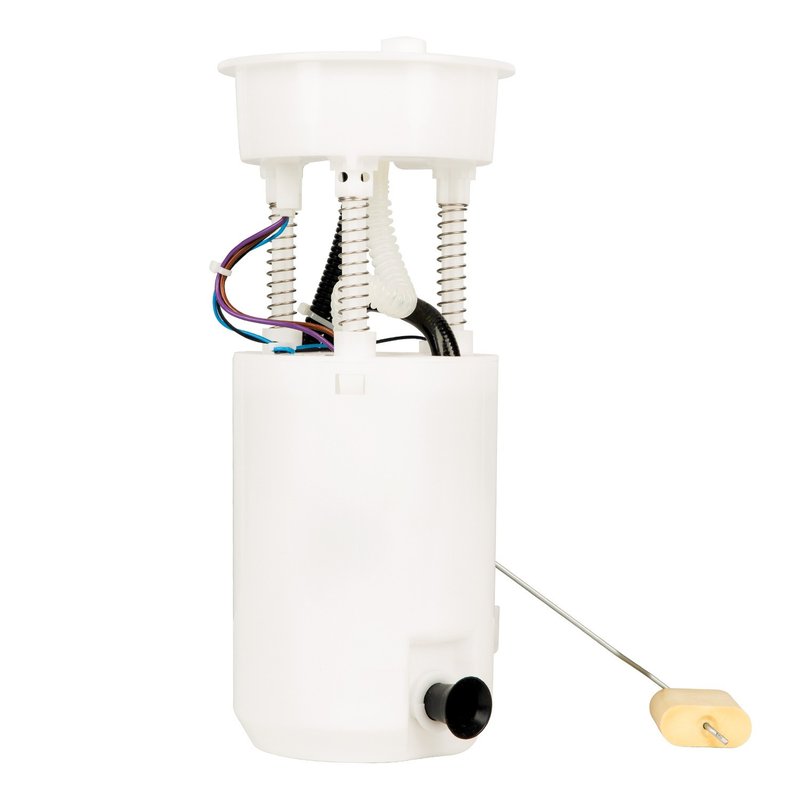

Delphi FG1162 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Mercedes-Benz ML Series

The Delphi FG1162 fuel pump module assembly is designed specifically for Mercedes-Benz ML55 AMG, ML320, and ML430 models. This in-tank electric fuel pump ensures consistent fuel delivery and accurate fuel level readings for optimal engine performance.

• Electric fuel pump with 12.0V operation
• Compatible with gasoline fuel systems
• Includes internal strainer and fuel level sender assembly
• Maximum pressure rating of 80 psi with system pressure at 58 psi
• Quick connect outlet with 0.375 inch outside diameter
• Four blade-type male terminals for secure electrical connections
• Comes with gasket, seal, and lock ring for proper installation
• Average flow rating of 21 liters per hour and average current draw of 8 amps

Technical Details and Features

The Delphi FG1162 fuel pump module assembly is engineered as a standard replacement part for select Mercedes-Benz ML models. It features an internal strainer inlet type and a quick connect outlet type with two outlets, ensuring efficient fuel flow and filtration. The pump operates at 12 volts and maintains a maximum pressure of 80 psi, with a system pressure of 58 psi to meet the demands of the vehicle's fuel system. The assembly includes a fuel level sender assembly with resistance values ranging from 3 ohms (full) to 200 ohms (empty), providing accurate fuel gauge readings. The four blade-type male terminals facilitate reliable electrical connections, while the included gasket, seal, and lock ring help secure the module within the fuel tank.

Compatible Vehicles and Applications

• Mercedes-Benz ML55 AMG fuel pump replacement
• Fuel pump module for Mercedes-Benz ML320
• Replacement fuel pump assembly for Mercedes-Benz ML430
• Designed for in-tank installation in gasoline fuel systems
• Ideal for addressing fuel delivery and fuel level sensor issues

Installation Notes and Tips

When installing the Delphi FG1162 fuel pump module assembly, ensure the vehicle's battery is disconnected to prevent electrical hazards. The included lock ring and gasket should be properly seated to avoid fuel leaks. Verify that the four blade terminals are securely connected and that the quick connect outlets are firmly attached to the fuel lines. It is recommended to follow the vehicle manufacturer's service manual for specific removal and installation procedures to maintain system integrity.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. This FG1162 assembly is a standard replacement part backed by Delphi's quality standards. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Always consult the product documentation or supplier for exact warranty terms.
