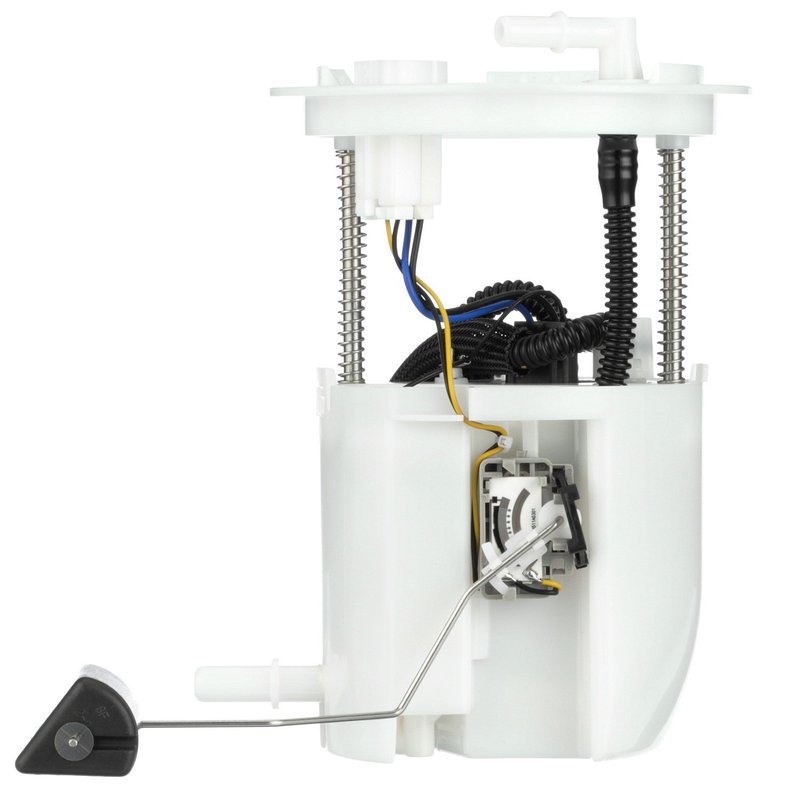

Delphi FG1168 Fuel Pump Module Assembly - Left

Reliable Fuel Pump Module Assembly for Ford Edge and Lincoln MKX

The Delphi FG1168 fuel pump module assembly is designed to provide consistent fuel delivery for your Ford Edge or Lincoln MKX. Engineered as a direct replacement, this in-tank electric fuel pump ensures proper fuel flow and pressure to maintain engine performance.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with 12.0-volt systems for gas fuel types
• Includes internal strainer and gasket for secure installation
• Quick connect outlet with 0.375 inch outside diameter
• Blade-type male terminals with four connections
• Average flow rating of 25 gallons per hour and system pressure of 65 psi

Technical Specifications and Features

The Delphi FG1168 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet to simplify installation and ensure clean fuel delivery. The pump delivers an average flow rating of 25 gallons per hour and maintains a system pressure of 65 psi, with a maximum pressure rating of 109 psi. The assembly includes a fuel level sender assembly with resistance values ranging from 10 ohms (full) to 180 ohms (empty), providing accurate fuel level readings. The four blade-type male terminals support reliable electrical connections, and the included gasket ensures a proper seal within the fuel tank.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Ford Edge (various model years)
• Lincoln MKX (various model years)

Designed specifically for in-tank installation on the left side, the FG1168 is a standard replacement part that meets OEM specifications for these models.

Common Issues Addressed by the Delphi FG1168 Fuel Pump

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings due to faulty sender assembly
• Low fuel pressure causing engine performance issues
• Fuel pump noise or electrical connection problems
• Clogged fuel strainer affecting fuel flow

Installation Notes and Tips

When installing the Delphi FG1168 fuel pump module assembly, ensure the vehicle’s battery is disconnected to prevent electrical hazards. The included gasket should be properly seated to avoid fuel leaks. Verify that the quick connect outlet and blade terminals are securely attached. Since this is an in-tank pump, handle the fuel tank carefully to prevent damage. Follow the vehicle manufacturer’s service manual for specific removal and installation procedures.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet industry standards for durability and performance. The FG1168 is a standard replacement grade part that includes a fuel level sender assembly and strainer for comprehensive functionality. While specific warranty terms may vary, Delphi typically offers coverage against defects in materials and workmanship to ensure reliability in your Ford Edge or Lincoln MKX.
