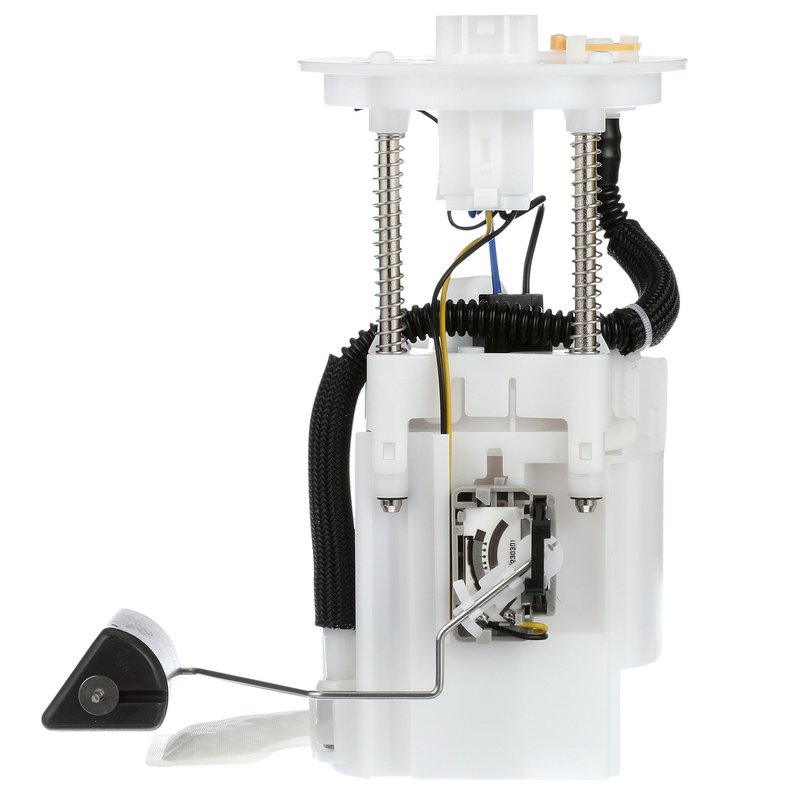

Delphi FG1170 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Toyota Camry

The Delphi FG1170 fuel pump module assembly is designed specifically for Toyota Camry models requiring a dependable in-tank fuel delivery solution. This electric fuel pump module ensures consistent fuel pressure and flow, supporting optimal engine performance.

• Compatible with Toyota Camry fuel systems
• 12.0 Volt electric pump with 18 GPH average flow rating
• Includes fuel level sender assembly with float arm
• Internal strainer and quick connect outlet for efficient fuel filtration and connection
• Regulator and gasket included for proper sealing and pressure control
• Standard replacement grade with 4-pin male terminals
• Designed for gasoline fuel type with a maximum pressure of 94 psi

Technical Details and Features

The Delphi FG1170 fuel pump module assembly operates at 12 volts and is engineered for gasoline fuel systems in Toyota Camry vehicles. It features an internal strainer inlet and a quick connect outlet with a 0.313-inch outside diameter, ensuring secure and leak-free fuel delivery. The module includes a fuel level sender assembly with a float arm, providing accurate fuel level readings. The regulator is integrated to maintain system pressure at 44 psi, with a maximum pressure rating of 94 psi. The pump draws an average current of 7 amps and delivers an average flow rate of 18 gallons per hour, supporting efficient engine operation. The assembly comes with a gasket for proper sealing and uses four male pin terminals for electrical connections.

Applications and Problem Resolution

• Replaces faulty or failing fuel pump modules in Toyota Camry models
• Resolves issues with inconsistent fuel pressure or flow
• Fixes inaccurate fuel level readings due to sender assembly failure
• Addresses fuel delivery interruptions caused by clogged strainers
• Eliminates electrical connection problems with reliable terminal design

Installation Notes and Tips

Installation of the Delphi FG1170 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. Use the included gasket to create a proper seal and prevent fuel leaks. Verify that the four-pin male terminals are securely connected to the vehicle’s wiring harness. Follow the vehicle manufacturer’s service manual for torque specifications and safety precautions during installation.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for fit, form, and function. The FG1170 is a standard replacement grade part designed for durability and reliable performance in Toyota Camry vehicles. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
