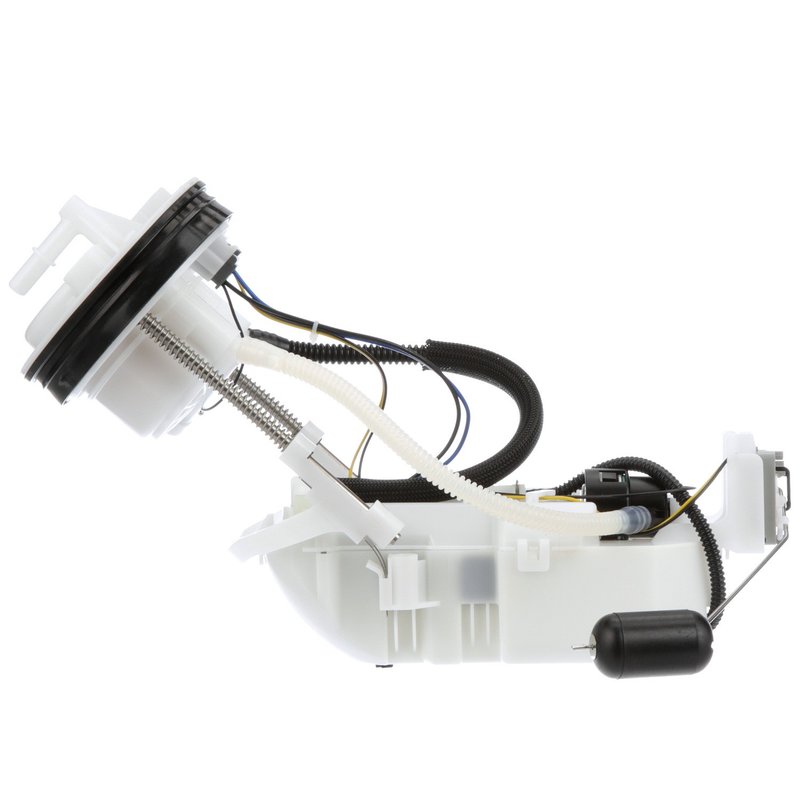

Delphi FG1184 Fuel Pump Module Assembly - Left

Delphi Fuel Pump Module Assembly Overview

The Delphi FG1184 Fuel Pump Module Assembly is designed for reliable fuel delivery in select Acura and Honda vehicles. Engineered as an in-tank electric fuel pump, it ensures consistent fuel pressure and flow for optimal engine performance in models like the Honda Accord Crosstour and Acura TL.

• 12.0 Volt electric fuel pump with integrated regulator
• Compatible with gasoline fuel systems
• Includes fuel level sender assembly with float arm
• Internal strainer and quick connect outlet for efficient fuel filtration and connection
• Maximum pressure rating of 94 psi and system pressure of 58 psi
• Blade-type male terminals with four connections
• Comes with gasket, lock ring, and installation instructions

Technical Specifications and Features

The FG1184 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features a 0.375-inch outlet outside diameter with a quick connect outlet type, facilitating straightforward installation and secure fuel line connection. The internal strainer and included external strainer inlet help prevent contaminants from entering the fuel system, protecting engine components. The module includes a fuel level sender assembly with a float arm, providing accurate fuel level readings for the vehicle’s gauge. With a maximum pressure of 94 psi and a system pressure of 58 psi, this pump maintains consistent fuel delivery under various operating conditions. The blade-type male terminals (four in total) ensure reliable electrical connections, while the included gasket and lock ring support a secure and leak-free installation.

Compatible Vehicles and Applications

This Delphi FG1184 fuel pump module assembly is compatible with specific Acura and Honda models, including the Honda Accord Crosstour, Crosstour, and Acura TL. It is designed as a direct replacement part to restore proper fuel delivery and fuel level sensing in these vehicles. Using this module helps address fuel system issues related to fuel delivery and measurement accuracy.

• Resolves fuel delivery interruptions or inconsistent fuel pressure
• Corrects inaccurate fuel gauge readings due to faulty sender assembly
• Replaces worn or damaged in-tank fuel pump modules
• Prevents engine performance issues caused by clogged strainers or fuel contamination
• Addresses electrical connection problems with blade-type terminals

Installation Notes and Tips

Installation of the Delphi FG1184 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the vehicle’s battery is disconnected before beginning work to avoid electrical hazards. Use the included gasket and lock ring to secure the module and prevent fuel leaks. Verify that the quick connect outlet is properly seated to maintain fuel system integrity. Follow the provided instruction sheet carefully for torque specifications and terminal connections. It is recommended to inspect the fuel tank and lines for debris or damage during installation.

Quality Assurance and Warranty

Delphi manufactures the FG1184 fuel pump module assembly to meet or exceed OEM standards for fit, form, and function. This standard replacement grade part undergoes rigorous testing to ensure durability and reliable performance in compatible Acura and Honda vehicles. The product includes a warranty that covers defects in materials and workmanship, providing confidence in its long-term operation when installed correctly.
