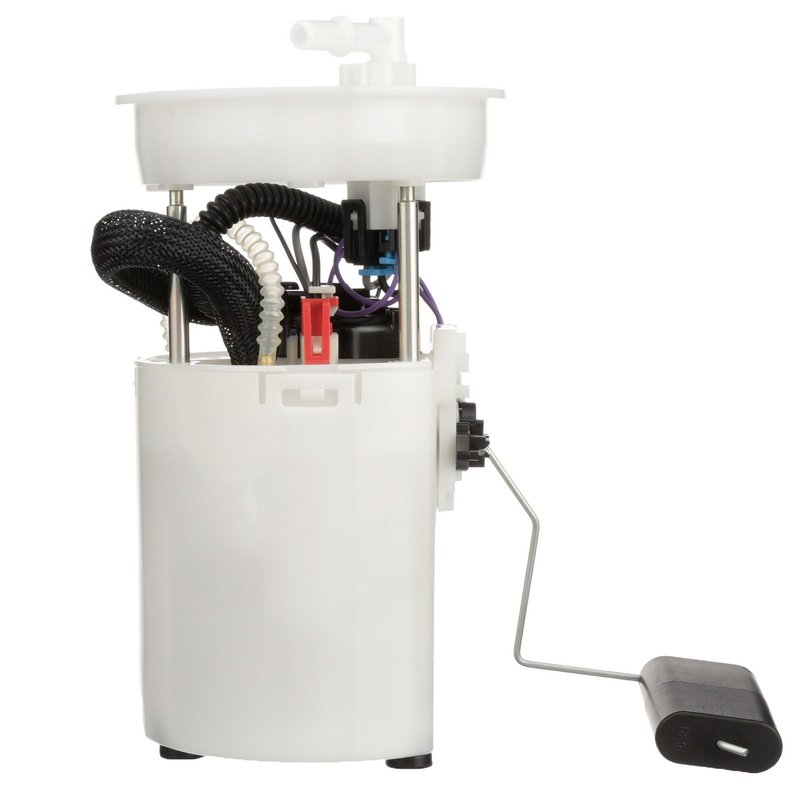

Delphi FG1185 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Honda Odyssey

The Delphi FG1185 fuel pump module assembly is designed specifically for Honda Odyssey models, providing reliable fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures consistent performance with integrated components for a seamless fit and function.

Key Features of Delphi FG1185 Fuel Pump Module

• 12.0 Volt electric fuel pump with a maximum pressure of 109 psi
• Includes regulator, internal strainer, and fuel level sender assembly
• Outlet outside diameter of 0.375 inches with quick connect outlet type
• Equipped with a blade terminal type, 4 male terminals for secure electrical connections
• Comes with gasket, seal, and lock ring for proper installation
• Average flow rating of 21 and system pressure of 58 psi for optimal fuel delivery
• Designed for gasoline fuel type, compatible with Honda Odyssey fuel systems

Detailed Description of the Delphi FG1185 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG1185) is engineered as a standard replacement for the Honda Odyssey's fuel delivery system. The module is an in-tank electric pump that features an internal strainer to prevent debris from entering the fuel system. It includes a fuel level sender assembly with resistance values ranging from 780 ohms (empty) to 20 ohms (full), providing accurate fuel gauge readings. The quick connect outlet and blade terminals simplify installation and ensure a secure connection. The assembly also includes a regulator to maintain consistent fuel pressure and a lock ring to secure the module within the fuel tank.

Common Applications and Issues Addressed

• Restores proper fuel pressure and flow in Honda Odyssey models
• Resolves fuel gauge inaccuracies caused by faulty sender assemblies
• Eliminates fuel delivery interruptions due to clogged or damaged pump modules
• Prevents engine stalling and hesitation related to fuel supply problems
• Replaces worn or leaking fuel pump modules to maintain system integrity

Installation Notes and Tips

• Ensure the vehicle is depressurized and battery disconnected before installation
• Use the included gasket, seal, and lock ring to prevent fuel leaks
• Verify electrical connections match the 4-blade male terminals for proper fit
• Handle the internal strainer carefully to avoid damage during installation
• Consult the Honda Odyssey service manual for specific removal and installation procedures

Quality Assurance and Warranty

The Delphi FG1185 fuel pump module assembly is manufactured to meet OEM specifications for the Honda Odyssey. It undergoes rigorous testing to ensure durability and reliable performance under normal operating conditions. This standard replacement part includes all necessary components for installation and is backed by Delphi's quality standards. Please refer to Delphi's warranty policy for coverage details.
