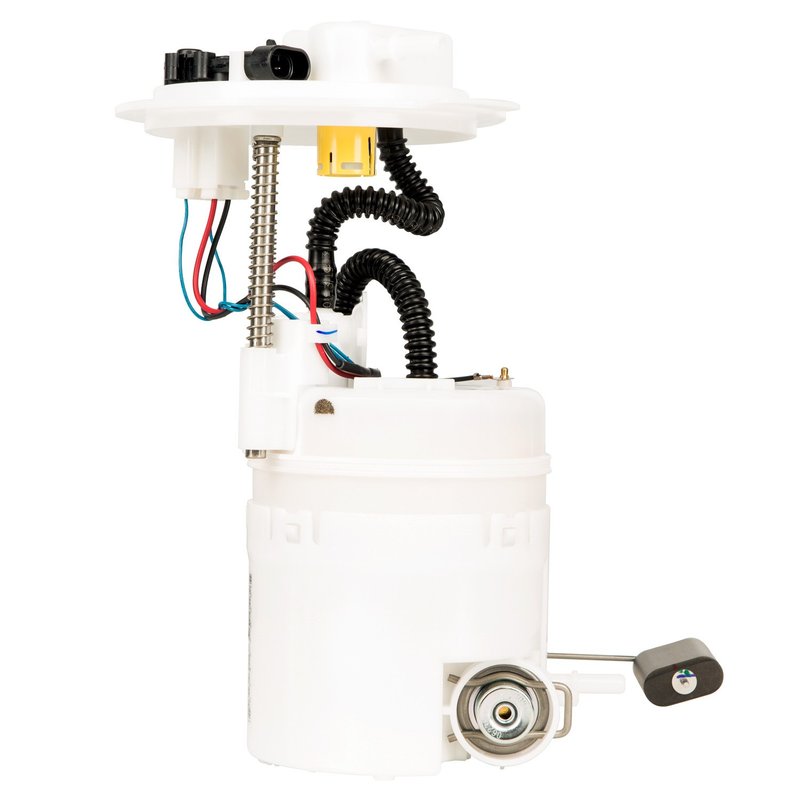

Delphi FG1189 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Hyundai Santa Fe and Kia Sorento

The Delphi FG1189 fuel pump module assembly is designed to provide consistent fuel delivery for Hyundai Santa Fe and Kia Sorento models. This in-tank electric fuel pump ensures optimal engine performance by maintaining precise fuel pressure and flow.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with gasoline fuel systems for Hyundai Santa Fe and Kia Sorento
• Includes internal strainer and regulator for clean, regulated fuel flow
• Operates at 12 volts with a system pressure of 51 psi and maximum pressure of 80 psi
• Features quick connect outlet with 0.313 inch outside diameter and blade-type male terminals (4 terminals)
• Average flow rating of 19 liters per hour and average current draw of 8 amps
• Includes vapor pressure sensor for accurate fuel system monitoring

Technical Details and Performance Specifications

The Delphi FG1189 fuel pump module assembly is engineered for standard replacement applications in Hyundai Santa Fe and Kia Sorento vehicles. It operates on a 12.0-volt electrical system and is designed for gasoline fuel types. The pump features an internal strainer inlet and a quick connect outlet with two outlets measuring 0.313 inches in diameter. The assembly includes a fuel level sender assembly with a float arm, allowing accurate fuel level readings. The regulator is integrated to maintain system pressure at 51 psi, with a maximum pressure rating of 80 psi. The pump’s resistance varies from 93 ohms when empty to 6 ohms when full, ensuring reliable electrical performance. The blade-type male terminals (four in total) provide secure electrical connections. This module also includes a vapor pressure sensor to support fuel system diagnostics.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Hyundai Santa Fe (gasoline models)
• Kia Sorento (gasoline models)

It is designed to replace the original in-tank fuel pump module, restoring proper fuel delivery and fuel level sensing functions.

Common Issues Addressed by Delphi FG1189 Fuel Pump Module

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel gauge readings due to faulty fuel level sender
• Fuel pressure fluctuations affecting engine performance
• Fuel pump noise or failure from worn internal components
• Fuel contamination due to clogged or damaged strainer

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to prevent electrical hazards
• Verify compatibility with your Hyundai Santa Fe or Kia Sorento model year and engine type
• Handle the fuel pump module carefully to avoid damage to the float arm and electrical terminals
• Inspect and clean the fuel tank before installing the new module to prevent contamination
• Follow manufacturer instructions included with the product for proper installation and torque specifications

Quality Assurance and Warranty Information

The Delphi FG1189 fuel pump module assembly is manufactured to meet OEM standards for fit, form, and function. It is a standard replacement grade part designed to restore original fuel system performance. The product includes a fuel pump module assembly with float arm and an instruction sheet for installation guidance. While specific warranty details may vary, Delphi typically offers limited warranties covering defects in materials and workmanship. Consult the product documentation or supplier for exact warranty terms.
