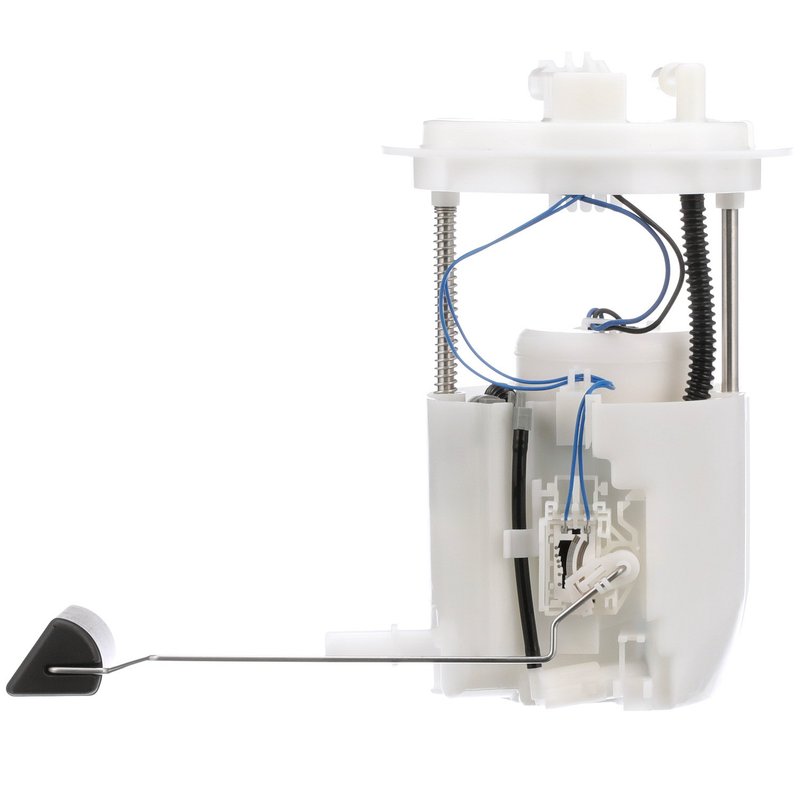

Delphi FG1193 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Jeep Wrangler JK

The Delphi FG1193 fuel pump module assembly is designed specifically for Jeep Wrangler and Wrangler JK models. This in-tank electric fuel pump ensures consistent fuel delivery and reliable performance for gasoline engines requiring a 12-volt system.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Jeep Wrangler and Wrangler JK gasoline engines
• 12.0 volts operating voltage with an average current draw of 8 amps
• Maximum system pressure of 62 psi and average flow rating of 28 gallons per hour
• Includes internal strainer and gasket for secure installation
• Blade-type male terminals with 4 terminal quantity for electrical connections
• Quick connect outlet with 0.375 inch outside diameter
• Standard replacement grade part with included float arm and seal

Technical Details and Specifications

The Delphi FG1193 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems in Jeep Wrangler and Wrangler JK vehicles. It features an internal strainer inlet and a quick connect outlet with a 0.375 inch outside diameter, ensuring efficient fuel flow and filtration. The pump delivers an average flow rating of 28 gallons per hour and maintains a system pressure of 58 psi, with a maximum pressure rating of 62 psi. The assembly includes a fuel level sender assembly with resistance values ranging from 50 ohms (full) to 990 ohms (empty), providing accurate fuel level readings. Electrical connections are made via four male blade terminals, supporting reliable and secure wiring. The package includes the fuel pump module assembly, float arm, gasket, and an instruction sheet for installation guidance.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Jeep Wrangler and Wrangler JK models equipped with gasoline engines requiring a 12-volt electric fuel pump. It is designed as a direct replacement for the original equipment fuel pump module, ensuring proper fit and function.

• Resolves fuel delivery issues such as engine hesitation or stalling
• Addresses fuel level sender malfunctions causing inaccurate gauge readings
• Replaces worn or damaged fuel pump modules to restore fuel system performance
• Eliminates fuel pressure drops affecting engine power and efficiency
• Prevents fuel contamination with the included internal strainer

Installation Notes and Tips

Installation of the Delphi FG1193 fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle is safely supported and fuel system pressure is relieved before beginning. The included gasket should be properly seated to prevent leaks. Electrical connections use blade-type male terminals; verify secure and corrosion-free contacts. Follow the provided instruction sheet carefully to maintain system integrity and safety.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM standards for quality and durability. This standard replacement grade part is backed by Delphi's quality control processes. While specific warranty details may vary, Delphi typically offers coverage against defects in materials and workmanship to ensure reliable operation in Jeep Wrangler and Wrangler JK vehicles.
