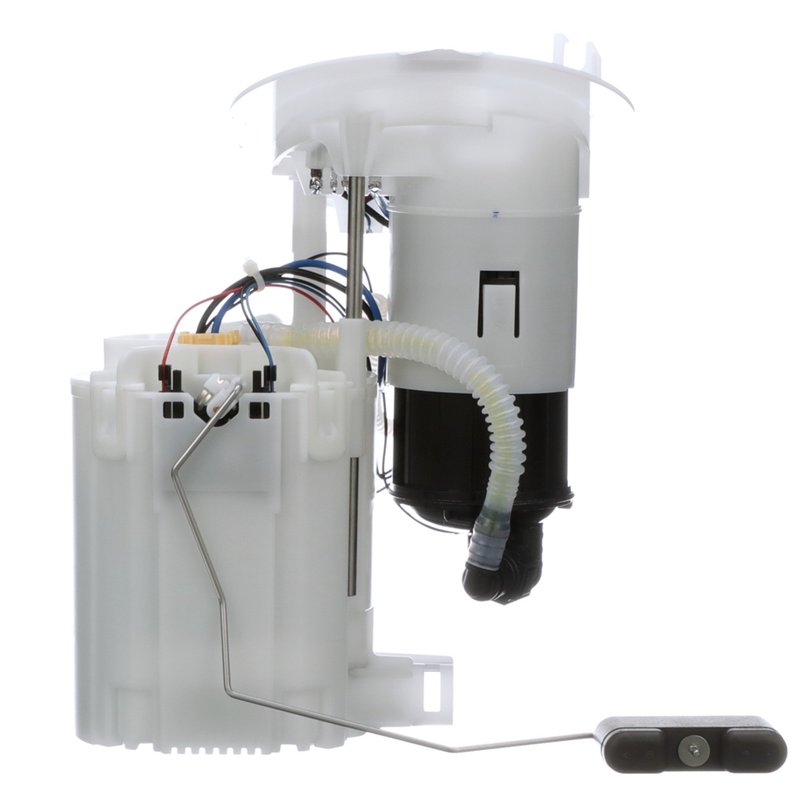

Delphi FG1194 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Audi Vehicles

The Delphi FG1194 fuel pump module assembly is designed to provide consistent fuel delivery for select Audi models. Engineered for compatibility with Audi A4, A4 Quattro, A5, A5 Quattro, RS5, S4, and S5, this in-tank electric fuel pump ensures efficient operation and precise fuel regulation.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Audi A4, A4 Quattro, A5, A5 Quattro, RS5, S4, and S5 models
• 12.0-volt operation with a maximum pressure of 94 psi and system pressure of 58 psi
• Includes internal strainer and regulator for clean fuel delivery
• Quick connect outlet with 0.375-inch outside diameter for easy installation
• Five male blade terminals for secure electrical connections
• Standard replacement grade with an average flow rating of 21 liters per hour

Detailed Product Features and Specifications

The Delphi FG1194 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet type, facilitating efficient fuel flow and filtration. The module includes a fuel level sender assembly with a float arm, allowing accurate fuel level readings. With a maximum pressure rating of 94 psi and a system pressure of 58 psi, this pump maintains consistent fuel delivery under various driving conditions. The assembly has five male blade terminals, ensuring reliable electrical connections, and draws an average current of 9 amps. Resistance values range from 55 ohms when empty to 286 ohms when full, supporting precise fuel level monitoring. This in-tank pump module is a standard replacement part designed to meet OEM specifications for Audi vehicles.

Compatible Audi Models and Common Applications

This fuel pump module assembly is compatible with the following Audi models:

• Audi A4 and A4 Quattro
• Audi A5 and A5 Quattro
• Audi RS5
• Audi S4
• Audi S5

It is commonly used to address issues such as:

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings due to faulty sender assembly
• Low fuel pressure causing engine performance problems
• Fuel pump noise or electrical connection issues
• Clogged or damaged internal strainer affecting fuel flow

Installation Notes and Tips

Installation of the Delphi FG1194 fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. The quick connect outlet and five blade terminals simplify connection, but verify all seals and fittings are secure to prevent leaks. Since the assembly does not include a gasket or lock ring, reuse the original components or source replacements as needed. Follow the included instruction sheet carefully for proper installation procedures and torque specifications.

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet or exceed OEM standards for durability and performance. The FG1194 is a standard replacement grade part backed by Delphi’s quality control processes. While specific warranty terms may vary, Delphi typically offers limited warranties covering defects in materials and workmanship. Refer to the product documentation or contact the parts provider for detailed warranty information.
