DelphiPart #: FG1195

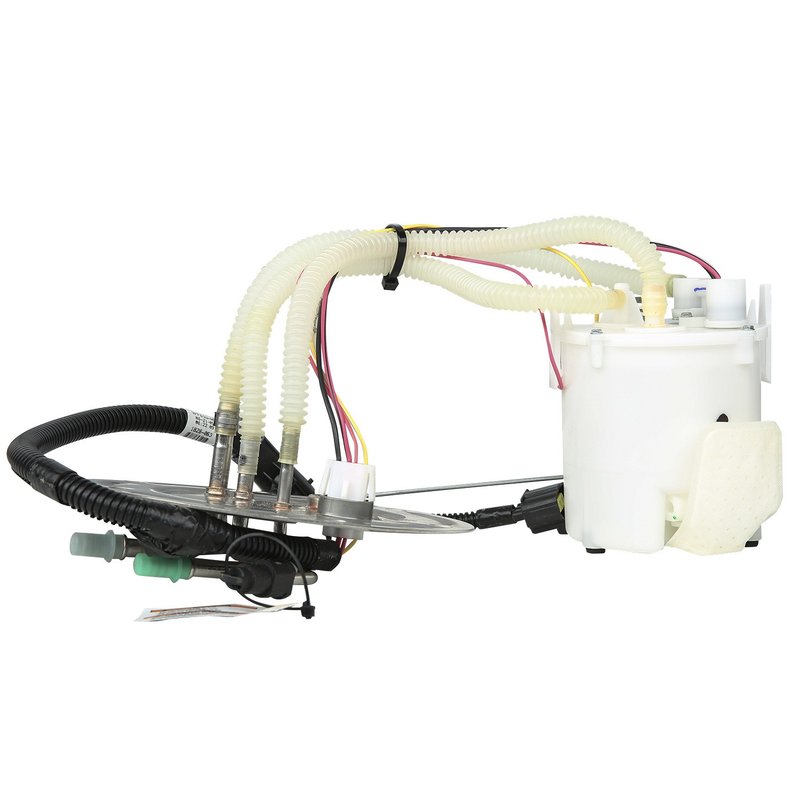

Delphi FG1195 Fuel Pump Module Assembly
⚙️ 37 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$237.89Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Ford, F-250 Super Duty and F-350 Super Duty
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Fuel Pump Module Assembly options
Reliable Fuel Pump Module Assembly for Ford Super Duty Trucks
The Delphi FG1195 fuel pump module assembly is designed specifically for Ford F-250 Super Duty and F-350 Super Duty models. This in-tank electric fuel pump ensures consistent fuel delivery and pressure regulation for optimal engine performance.
- Compatible with Ford F-250 Super Duty and F-350 Super Duty
- 12.0 Volt electric pump with a maximum pressure of 80 psi
- Includes fuel level sender assembly and regulator for accurate fuel monitoring
- Features a 0.375 inch outlet outside diameter with quick connect outlet type
- Equipped with an external strainer and inlet strainer for fuel filtration
- Seven male pin terminals for secure electrical connections
- Comes with gasket and seal for proper installation
- Standard replacement grade with an average flow rating of 21
Technical Details and Specifications
The Delphi FG1195 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It delivers a system pressure of 44 psi with a maximum pressure capacity of 80 psi, ensuring stable fuel flow under various driving conditions. The pump features a 0.375 inch outlet diameter and three quick connect outlets for efficient fuel delivery. The assembly includes a regulator and a fuel level sender assembly with resistance values ranging from 15 ohms (empty) to 160 ohms (full), providing accurate fuel level readings. The external strainer and inlet strainer help maintain fuel cleanliness, protecting the fuel system components. The module is equipped with seven male pin terminals to facilitate reliable electrical connections within the vehicle’s fuel system.
Applications and Common Issues Addressed
- Replacement for failing or noisy fuel pumps in Ford F-250 Super Duty and F-350 Super Duty trucks
- Resolves inconsistent fuel pressure and delivery problems
- Fixes inaccurate fuel level readings due to faulty sender assemblies
- Addresses fuel contamination issues with included strainers
- Eliminates electrical connection failures with secure pin terminals
Installation Notes and Tips
Installation of the Delphi FG1195 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the gasket and seal included in the package are properly seated to prevent fuel leaks. Verify the seven-pin male terminals align correctly with the vehicle’s wiring harness. Use caution when handling the external strainer to avoid damage. Follow the vehicle manufacturer’s service manual for torque specifications and safety precautions during installation.
Quality Assurance and Warranty Information
Delphi provides a standard replacement grade fuel pump module assembly engineered to meet OEM specifications. The FG1195 part number undergoes rigorous testing to ensure durability and reliable performance in Ford F-250 Super Duty and F-350 Super Duty trucks. Warranty coverage details should be confirmed at the point of purchase, typically including protection against manufacturing defects for a specified period.
| Brand | Delphi |
| Part Number | FG1195 |
| Average Current Draw | 9 |
| Average Flow Rating | 21 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | External |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Maximum Pressure | 80.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 3 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | Yes |
| Resistance Ohms Empty | 15.0 |
| Resistance Ohms Full | 160.0 |
| Strainer Included | Yes |
| System Pressure | 44 psi |
| Terminal Gender | Male |
| Terminal Quantity | 7 |
| Terminal Type | Pin |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 |
This part fits 37 vehicles. Search below:
| Year | Make | Model | Body Type | Wheel Base | Position | Notes |
|---|---|---|---|---|---|---|
| 1999 | Ford | F-250 Super Duty | 172.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. | |
| 1999 | Ford | F-250 Super Duty | 158.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. | |
| 1999 | Ford | F-250 Super Duty | 156.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. | |
| 1999 | Ford | F-250 Super Duty | 142.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. | |
| 1999 | Ford | F-250 Super Duty | 137.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. | |
| 1999 | Ford | F-350 Super Duty | Standard Cab Pickup | 176.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Ford | F-350 Super Duty | Extended Cab Pickup | 176.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Ford | F-350 Super Duty | Crew Cab Pickup | 176.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Ford | F-350 Super Duty | Cab & Chassis | 176.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Ford | F-350 Super Duty | Standard Cab Pickup | 172.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Ford | F-350 Super Duty | Extended Cab Pickup | 172.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Ford | F-350 Super Duty | Crew Cab Pickup | 172.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Ford | F-350 Super Duty | Cab & Chassis | 172.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Ford | F-350 Super Duty | Standard Cab Pickup | 165.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Ford | F-350 Super Duty | Extended Cab Pickup | 165.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Ford | F-350 Super Duty | Crew Cab Pickup | 165.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Ford | F-350 Super Duty | Cab & Chassis | 165.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Ford | F-350 Super Duty | Standard Cab Pickup | 162.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Ford | F-350 Super Duty | Extended Cab Pickup | 162.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Ford | F-350 Super Duty | Crew Cab Pickup | 162.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Ford | F-350 Super Duty | Cab & Chassis | 162.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Ford | F-350 Super Duty | Standard Cab Pickup | 156.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Ford | F-350 Super Duty | Extended Cab Pickup | 156.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Ford | F-350 Super Duty | Crew Cab Pickup | 156.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Ford | F-350 Super Duty | Cab & Chassis | 156.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Ford | F-350 Super Duty | Standard Cab Pickup | 142.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Ford | F-350 Super Duty | Extended Cab Pickup | 142.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Ford | F-350 Super Duty | Crew Cab Pickup | 142.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Ford | F-350 Super Duty | Cab & Chassis | 142.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Ford | F-350 Super Duty | Standard Cab Pickup | 141.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Ford | F-350 Super Duty | Extended Cab Pickup | 141.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Ford | F-350 Super Duty | Crew Cab Pickup | 141.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Ford | F-350 Super Duty | Cab & Chassis | 141.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Ford | F-350 Super Duty | Standard Cab Pickup | 137.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Ford | F-350 Super Duty | Extended Cab Pickup | 137.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Ford | F-350 Super Duty | Crew Cab Pickup | 137.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Ford | F-350 Super Duty | Cab & Chassis | 137.0" | N/A | with Aft Axle Tank; with California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
3C3Z 9H307-HA3C3Z 9H307-HB69472953-4020A30301DFG1195E16040E2232ME2314F81Z 9H307-HAP75021MPFS-275PFS-375RE0241SSP1134SP2052M
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
