DelphiPart #: FG1197

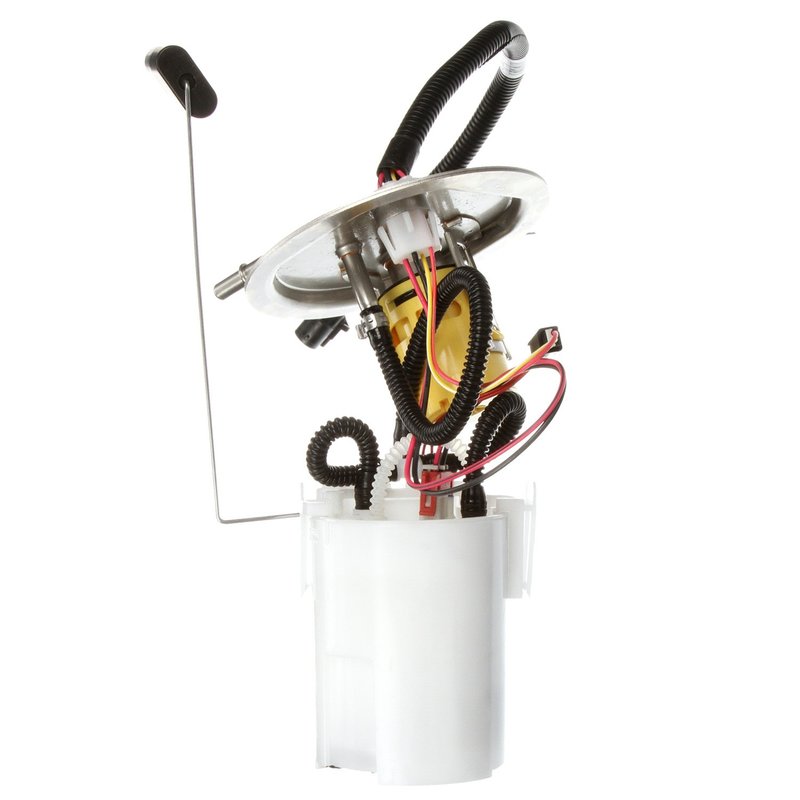

Delphi FG1197 Fuel Pump Module Assembly
⚙️ 70 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$361.35Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Ford, F-250 Super Duty and F-350 Super Duty
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Fuel Pump Module Assembly options
Reliable Fuel Pump Module Assembly for Ford Super Duty Trucks
The Delphi FG1197 fuel pump module assembly is designed specifically for Ford F-250 Super Duty and F-350 Super Duty models. This in-tank electric fuel pump ensures consistent fuel delivery and accurate fuel level readings, supporting optimal engine performance.
- 12.0 Volt electric fuel pump with integrated fuel level sender assembly
- Compatible with gasoline fuel systems for Ford F-250 Super Duty and F-350 Super Duty
- Includes regulator, internal strainer, gasket, and fuel pump module with float arm
- Quick connect outlet with 0.375 inch outside diameter and dual outlet ports
- Standard replacement grade with 44 psi system pressure and 62 psi maximum pressure
- Four male pin terminals with 15 ohms resistance empty and 160 ohms full
- Average current draw of 10 amps and flow rating of 16 gallons per hour
Detailed Product Description
The Delphi FG1197 fuel pump module assembly is engineered for in-tank installation in Ford F-250 Super Duty and F-350 Super Duty trucks. This electric pump operates at 12 volts and is designed for gasoline fuel systems, providing reliable fuel delivery with a system pressure of 44 psi and a maximum pressure rating of 62 psi. The module includes an internal strainer and a fuel level sender assembly with a float arm, ensuring accurate fuel level readings. The quick connect outlet features a 0.375 inch outside diameter and two outlet ports for efficient fuel flow. The assembly comes with a gasket for proper sealing and four male pin terminals for secure electrical connections. Resistance values range from 15 ohms when empty to 160 ohms when full, supporting precise fuel level monitoring. The average current draw is 10 amps, and the pump delivers a flow rating of 16 gallons per hour, suitable for maintaining engine performance under various driving conditions.
Common Applications and Issues Addressed
- Replacement for faulty or failing fuel pump modules in Ford F-250 Super Duty and F-350 Super Duty trucks
- Resolves inconsistent fuel delivery causing engine hesitation or stalling
- Fixes inaccurate fuel gauge readings due to faulty fuel level sender assembly
- Addresses fuel leaks by providing a new gasket and properly sealed module
- Improves fuel system pressure stability for smoother engine operation
Installation Notes and Tips
Installation of the Delphi FG1197 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the fuel system is depressurized before beginning work. Use the included gasket to create a proper seal and prevent leaks. Verify electrical connections match the four male pin terminals and confirm secure quick connect fittings on the outlet ports. Follow vehicle-specific service manual instructions for torque specifications and safety precautions. Testing the fuel pump operation and fuel level sender functionality after installation is recommended to confirm proper performance.
Quality Assurance and Warranty
Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for fit, form, and function. The FG1197 is a standard replacement grade part designed for durability and reliable operation in Ford F-250 Super Duty and F-350 Super Duty trucks. While specific warranty terms may vary, Delphi typically offers coverage against defects in materials and workmanship. Refer to the product documentation or Delphi’s official resources for detailed warranty information.
| Brand | Delphi |
| Part Number | FG1197 |
| Average Current Draw | 10 |
| Average Flow Rating | 16 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | Internal |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Maximum Pressure | 62.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 2 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | Yes |
| Resistance Ohms Empty | 15.0 |
| Resistance Ohms Full | 160.0 |
| Strainer Included | Yes |
| System Pressure | 44 psi |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Pin |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 |
This part fits 70 vehicles. Search below:
| Year | Make | Model | Submodel | Body Type | Wheel Base | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2007 | Ford | F-250 Super Duty | 172.4" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | ||
| 2007 | Ford | F-250 Super Duty | 158.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | ||
| 2007 | Ford | F-250 Super Duty | 137.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | ||
| 2007 | Ford | F-350 Super Duty | XLT | Standard Cab Pickup | 172.4" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | XLT | Extended Cab Pickup | 172.4" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | XLT | Crew Cab Pickup | 172.4" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | XL | Standard Cab Pickup | 172.4" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | XL | Extended Cab Pickup | 172.4" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | XL | Crew Cab Pickup | 172.4" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | Lariat | Extended Cab Pickup | 172.4" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | Lariat | Crew Cab Pickup | 172.4" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | King Ranch | 172.4" | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. | |
| 2007 | Ford | F-350 Super Duty | XLT | Standard Cab Pickup | 158.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | XLT | Extended Cab Pickup | 158.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | XLT | Crew Cab Pickup | 158.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | XL | Standard Cab Pickup | 158.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | XL | Extended Cab Pickup | 158.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | XL | Crew Cab Pickup | 158.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | Lariat | Extended Cab Pickup | 158.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | Lariat | Crew Cab Pickup | 158.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | XLT | Standard Cab Pickup | 137.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | XLT | Extended Cab Pickup | 137.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | XLT | Crew Cab Pickup | 137.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | XL | Standard Cab Pickup | 137.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | XL | Extended Cab Pickup | 137.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2007 | Ford | F-350 Super Duty | XL | Crew Cab Pickup | 137.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-250 Super Duty | XLT | 172.4" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |
| 2006 | Ford | F-250 Super Duty | XL | 172.4" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |
| 2006 | Ford | F-250 Super Duty | Lariat | 172.4" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |
| 2006 | Ford | F-250 Super Duty | King Ranch | 172.4" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |
| 2006 | Ford | F-250 Super Duty | XLT | 158.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |
| 2006 | Ford | F-250 Super Duty | XL | 158.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |
| 2006 | Ford | F-250 Super Duty | Lariat | 158.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |
| 2006 | Ford | F-250 Super Duty | XLT | 137.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |
| 2006 | Ford | F-250 Super Duty | XL | 137.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |
| 2006 | Ford | F-350 Super Duty | XLT | Standard Cab Pickup | 172.4" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | XLT | Extended Cab Pickup | 172.4" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | XLT | Crew Cab Pickup | 172.4" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | XL | Standard Cab Pickup | 172.4" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | XL | Extended Cab Pickup | 172.4" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | XL | Crew Cab Pickup | 172.4" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | Lariat | Extended Cab Pickup | 172.4" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | Lariat | Crew Cab Pickup | 172.4" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | King Ranch | 172.4" | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. | |
| 2006 | Ford | F-350 Super Duty | XLT | Standard Cab Pickup | 158.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | XLT | Extended Cab Pickup | 158.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | XLT | Crew Cab Pickup | 158.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | XL | Standard Cab Pickup | 158.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | XL | Extended Cab Pickup | 158.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | XL | Crew Cab Pickup | 158.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | Lariat | Extended Cab Pickup | 158.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | Lariat | Crew Cab Pickup | 158.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | XLT | Standard Cab Pickup | 137.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | XLT | Extended Cab Pickup | 137.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | XLT | Crew Cab Pickup | 137.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | XL | Standard Cab Pickup | 137.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | XL | Extended Cab Pickup | 137.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2006 | Ford | F-350 Super Duty | XL | Crew Cab Pickup | 137.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
| 2005 | Ford | F-250 Super Duty | 172.4" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | ||
| 2005 | Ford | F-250 Super Duty | 158.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | ||
| 2005 | Ford | F-250 Super Duty | 137.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | ||
| 2005 | Ford | F-350 Super Duty | Standard Cab Pickup | 172.4" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |
| 2005 | Ford | F-350 Super Duty | Extended Cab Pickup | 172.4" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |
| 2005 | Ford | F-350 Super Duty | Crew Cab Pickup | 172.4" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |
| 2005 | Ford | F-350 Super Duty | Standard Cab Pickup | 158.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |
| 2005 | Ford | F-350 Super Duty | Extended Cab Pickup | 158.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |
| 2005 | Ford | F-350 Super Duty | Crew Cab Pickup | 158.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |
| 2005 | Ford | F-350 Super Duty | Standard Cab Pickup | 137.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |
| 2005 | Ford | F-350 Super Duty | Extended Cab Pickup | 137.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |
| 2005 | Ford | F-350 Super Duty | Crew Cab Pickup | 137.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
5C3Z 9H307-AE66064691756C3Z 9H307-AAA33109CFG1197E2344ME2386M2520807P76230P76651MPFS-306RE0923SSP1150SP2304M
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
