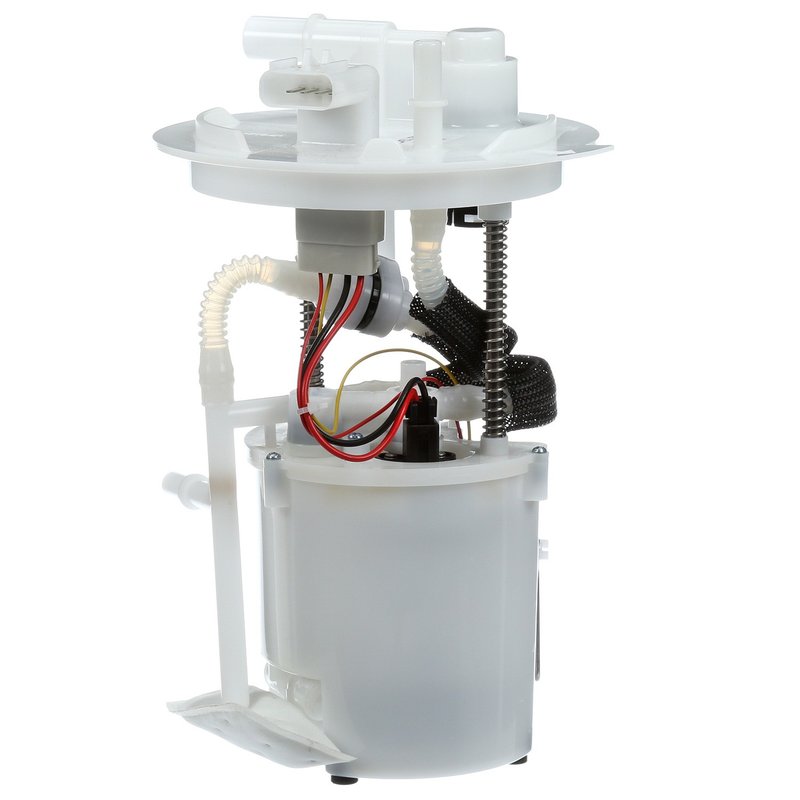

Delphi FG1200 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford Freestyle

The Delphi FG1200 fuel pump module assembly is designed specifically for the Ford Freestyle, providing consistent fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures optimal performance and compatibility with your vehicle's fuel system.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Ford Freestyle models
• 12.0 Volt operation with a maximum pressure of 94 psi
• Includes regulator, gasket, and external strainer for efficient fuel filtration
• Quick connect outlet with 0.375 inch outside diameter and dual outlet ports
• Blade-type male terminals with four connections for secure wiring
• Average flow rating of 26 and system pressure of 39 psi

Technical Details and Features

The Delphi FG1200 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an in-tank electric pump with an external strainer inlet type to ensure clean fuel delivery. The module includes a built-in regulator to maintain consistent fuel pressure up to 94 psi, supporting the Ford Freestyle's fuel system requirements. The assembly comes with a gasket and strainer to prevent contaminants from entering the fuel system, and the quick connect outlet type simplifies installation. The four blade-type male terminals provide reliable electrical connections, while the included fuel level sender assembly offers accurate fuel gauge readings. This standard replacement part draws an average current of 7 amps and delivers an average flow rating of 26, meeting the operational demands of the Ford Freestyle.

Common Applications and Problem Resolution

• Replaces faulty or failing fuel pump modules in Ford Freestyle vehicles
• Resolves inconsistent fuel pressure or delivery issues
• Fixes inaccurate fuel level readings caused by a malfunctioning sender
• Addresses fuel contamination problems with included strainer and gasket
• Eliminates electrical connection failures with secure blade terminals

Installation Notes and Tips

Installation of the Delphi FG1200 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the vehicle is depressurized before beginning work. The included gasket should be properly seated to prevent fuel leaks. Connect the four blade-type male terminals securely to avoid electrical issues. The quick connect outlet ports facilitate hose attachment, but verify all connections are tight. Follow the provided instruction sheet carefully to maintain safety and proper installation procedures.

Quality Assurance and Warranty

Delphi manufactures the FG1200 fuel pump module assembly to meet standard replacement part specifications, ensuring reliable performance and durability. The product includes a fuel level sender assembly and necessary seals for a complete replacement solution. While specific warranty details are not provided, Delphi parts typically adhere to industry quality standards and are backed by manufacturer support for fitment and function.
