Delphi FG1201 Fuel Pump Module Assembly

Delphi FG1201 Fuel Pump Module Assembly Overview

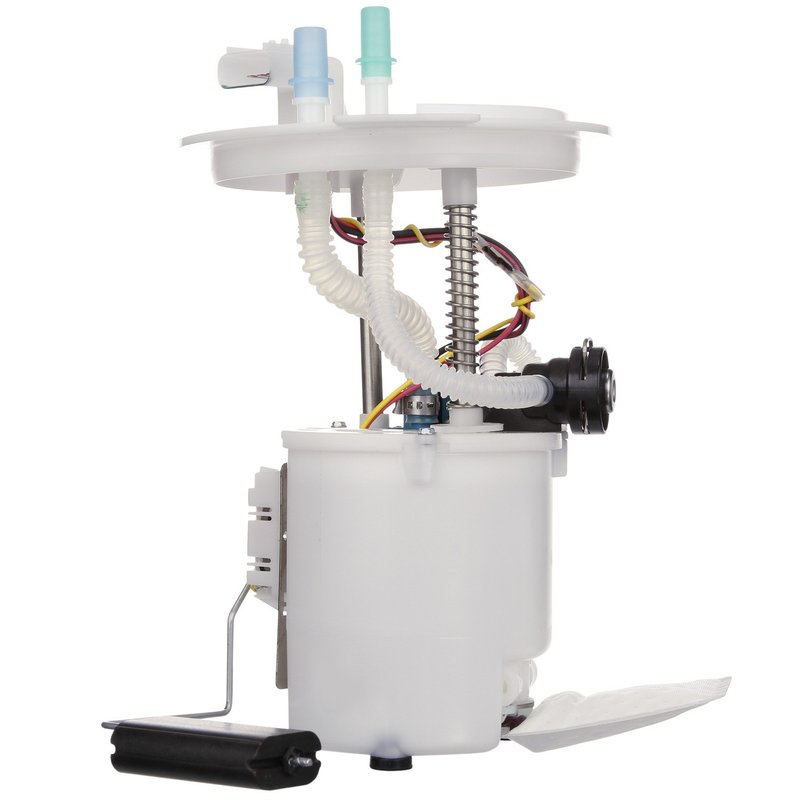

The Delphi FG1201 fuel pump module assembly is designed specifically for Ford Freestar vehicles, providing reliable fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures consistent performance with integrated components for efficient operation.

• Compatible with Ford Freestar models
• 12.0 Volt electric pump with a maximum pressure of 94 psi
• Includes fuel level sender assembly with float arm
• Equipped with external strainer and quick connect outlets
• Regulator and gasket/seal included for secure installation
• Blade-type male terminals with 4-terminal configuration
• Average flow rating of 26 gallons per hour and system pressure of 51 psi

Technical Details and Features

The Delphi FG1201 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features a 0.375-inch outlet outside diameter with two quick connect outlets for efficient fuel flow. The module includes an external strainer on the inlet side to protect the pump from debris, and a regulator to maintain consistent fuel pressure up to 94 psi. The assembly comes with a gasket or seal to ensure a leak-free installation inside the fuel tank. The blade-type male terminals, totaling four, provide secure electrical connections with resistance values ranging from 15 ohms when empty to 160 ohms when full, supporting accurate fuel level readings. The average current draw is 7 amps, and the pump delivers an average flow rate of 26 gallons per hour, suitable for maintaining optimal engine performance in Ford Freestar vehicles.

Applications and Problem Resolution

• Replaces faulty or failing fuel pump modules in Ford Freestar models
• Resolves inconsistent fuel pressure issues affecting engine performance
• Fixes inaccurate fuel gauge readings due to faulty sender assemblies
• Addresses fuel delivery interruptions caused by clogged strainers
• Eliminates leaks with included gasket and seal components

Installation Notes and Tips

Installation of the Delphi FG1201 fuel pump module assembly requires removal of the fuel tank to access the in-tank module. Ensure all electrical connections use the blade-type male terminals provided, and verify the correct orientation of the float arm for accurate fuel level readings. Replace the gasket or seal during installation to prevent fuel leaks. Use caution when handling fuel lines with quick connect outlets to avoid damage. It is recommended to follow the vehicle manufacturer’s service manual for detailed installation procedures and safety precautions.

Quality Assurance and Warranty

This Delphi fuel pump module assembly is a standard replacement part manufactured to meet OEM specifications for Ford Freestar vehicles. It includes a fuel level sender assembly and is tested for electrical and mechanical reliability. While specific warranty details are not provided, Delphi products typically come with a limited warranty covering defects in materials and workmanship. For warranty information, refer to Delphi’s official documentation or contact authorized service providers.
