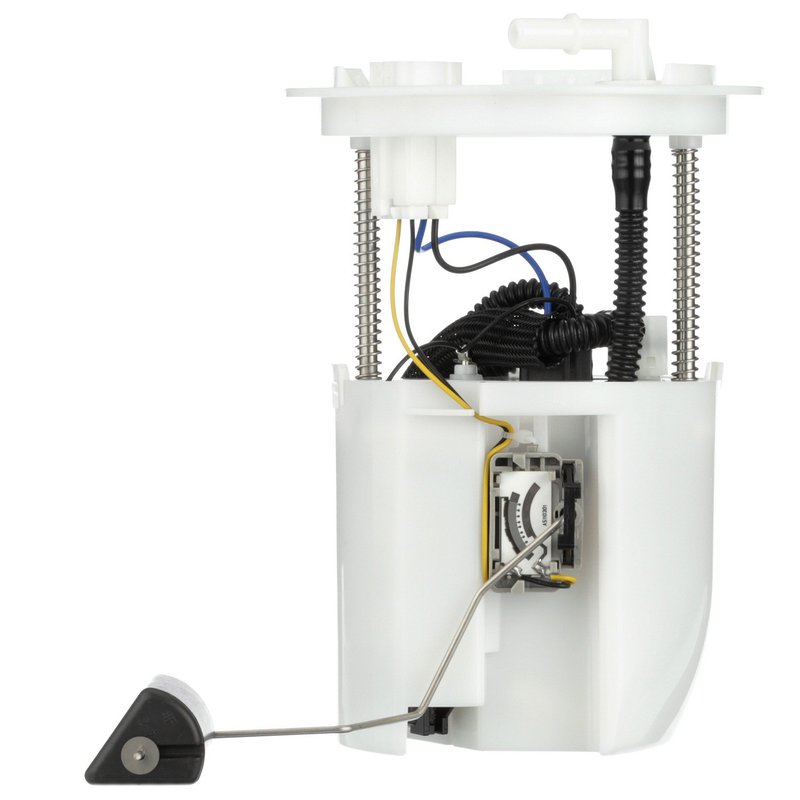

Delphi FG1206 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford Edge and Lincoln MKX

The Delphi FG1206 fuel pump module assembly is designed to provide consistent fuel delivery for your Ford Edge or Lincoln MKX. This in-tank electric fuel pump ensures optimal performance with integrated components for a seamless fit and function.

• 12.0 Volt electric fuel pump module assembly
• Compatible with gas fuel systems for Ford Edge and Lincoln MKX
• Includes fuel level sender assembly with float arm
• Internal strainer inlet and quick connect outlet (0.375 inch diameter)
• Maximum pressure rating of 94 psi with system pressure at 65 psi
• Four male pin terminals for secure electrical connection
• Includes regulator, gasket, and strainer for complete installation
• Standard replacement grade with average flow rating of 26

Technical Details and Features

The Delphi FG1206 fuel pump module assembly operates at 12 volts and is engineered for gas fuel systems in Ford Edge and Lincoln MKX models. It features an internal strainer inlet and a quick connect outlet with a 0.375-inch outside diameter, ensuring efficient fuel flow and filtration. The module includes a fuel level sender assembly with a float arm, providing accurate fuel level readings. The pump maintains a maximum pressure of 94 psi and a system pressure of 65 psi, supporting stable fuel delivery under various driving conditions. Electrical connections are made via four male pin terminals, designed for reliable and secure attachment. The assembly also comes with a regulator and gasket to ensure proper sealing and pressure regulation within the fuel system.

Applications and Problem Solving

• Replaces faulty or failing fuel pump modules in Ford Edge and Lincoln MKX
• Resolves inconsistent fuel pressure or delivery issues
• Fixes inaccurate fuel level readings due to sender assembly failure
• Addresses fuel system leaks with included gasket and seal
• Improves engine performance by maintaining proper fuel flow and pressure

Installation Notes and Tips

Installation of the Delphi FG1206 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. Use the included gasket and seal to prevent leaks and verify all electrical connections are secure with the four-pin male terminals. Follow the vehicle manufacturer’s service manual for torque specifications and safety precautions. The quick connect outlet simplifies fuel line attachment, but confirm proper seating to avoid fuel leaks.

Quality Assurance and Warranty

Delphi provides a standard replacement grade fuel pump module assembly designed to meet OEM specifications for Ford Edge and Lincoln MKX models. Each unit undergoes quality control testing to ensure reliable operation and durability. The FG1206 part number is backed by Delphi’s warranty coverage, offering protection against defects in materials and workmanship under normal use conditions.
