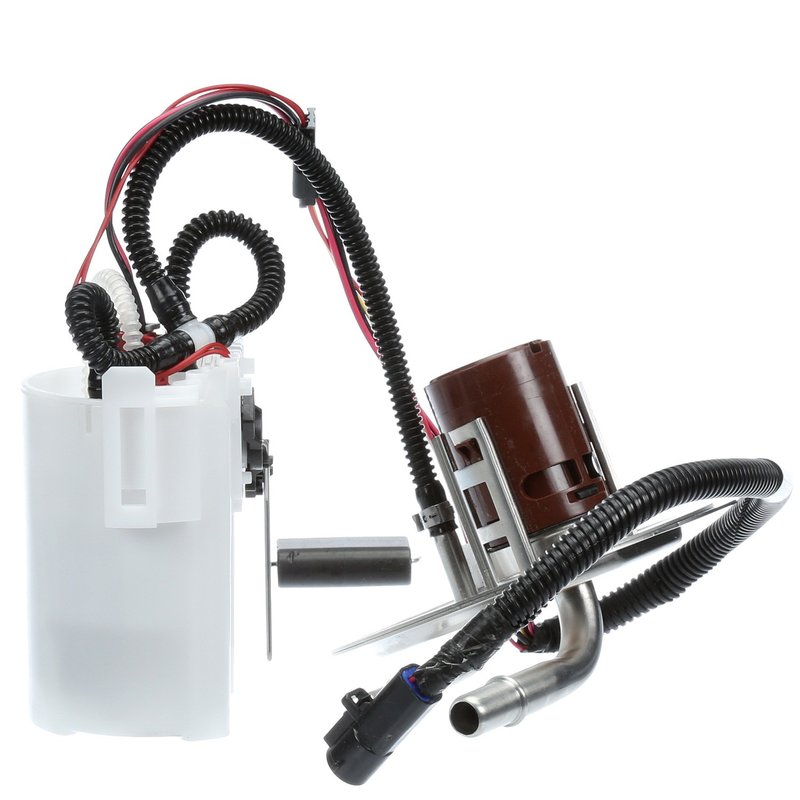

Delphi FG1208 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG1208 Fuel Pump Module Assembly is designed for reliable fuel delivery in Ford F-250 Super Duty and F-350 Super Duty trucks. This in-tank electric fuel pump module ensures consistent fuel pressure and flow for gas-powered engines, supporting optimal vehicle performance.

• Compatible with Ford F-250 Super Duty and F-350 Super Duty models
• 12.0 Volt electric pump with a maximum pressure of 65 psi
• Includes fuel level sender assembly with float arm
• Internal strainer inlet and quick connect outlet with 0.375 inch diameter
• Regulator and gasket/seal included for secure installation
• Four male pin terminals for electrical connection
• Average flow rating of 16 and system pressure of 44 psi
• Standard replacement grade with package contents including clips, screws, and washer

Technical Details and Features

The Delphi FG1208 fuel pump module assembly operates at 12 volts and is engineered for gas fuel systems. It features an internal strainer inlet and a quick connect outlet with a 0.375-inch outside diameter, facilitating efficient fuel flow and easy installation. The module includes a regulator to maintain system pressure up to 65 psi and a fuel level sender assembly with a float arm for accurate fuel measurement. Electrical connections are made via four male pin terminals, ensuring secure and reliable power delivery. The pump’s resistance varies from 180 ohms when empty to 10 ohms when full, with an average current draw of 10 amps and a flow rating of 16, supporting consistent engine performance under various conditions.

Compatible Vehicles and Applications

This fuel pump module assembly is specifically compatible with Ford F-250 Super Duty and F-350 Super Duty trucks. It is designed to replace the original in-tank fuel pump module in gas-powered engines, restoring proper fuel delivery and system pressure.

• Resolves fuel delivery issues such as engine sputtering or stalling
• Addresses low fuel pressure or inconsistent fuel flow problems
• Replaces faulty fuel level sender assemblies for accurate fuel gauge readings
• Eliminates fuel pump noise caused by worn or damaged components
• Prevents engine performance issues related to fuel starvation

Installation Notes and Tips

Installation of the Delphi FG1208 fuel pump module assembly requires removal of the fuel tank to access the in-tank module. Ensure the vehicle’s battery is disconnected before beginning work to avoid electrical hazards. Use the included gasket or seal to prevent leaks and secure the module with the provided clips, screws, and washer. Verify all electrical connections are properly seated on the four male pin terminals. After installation, check for fuel leaks and confirm proper fuel pressure and gauge operation before vehicle operation.

Quality Assurance and Warranty

The Delphi FG1208 is a standard replacement grade fuel pump module assembly manufactured to meet OEM specifications. It includes a regulator and internal strainer to maintain fuel system integrity. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Refer to the product documentation or supplier for exact warranty terms.
