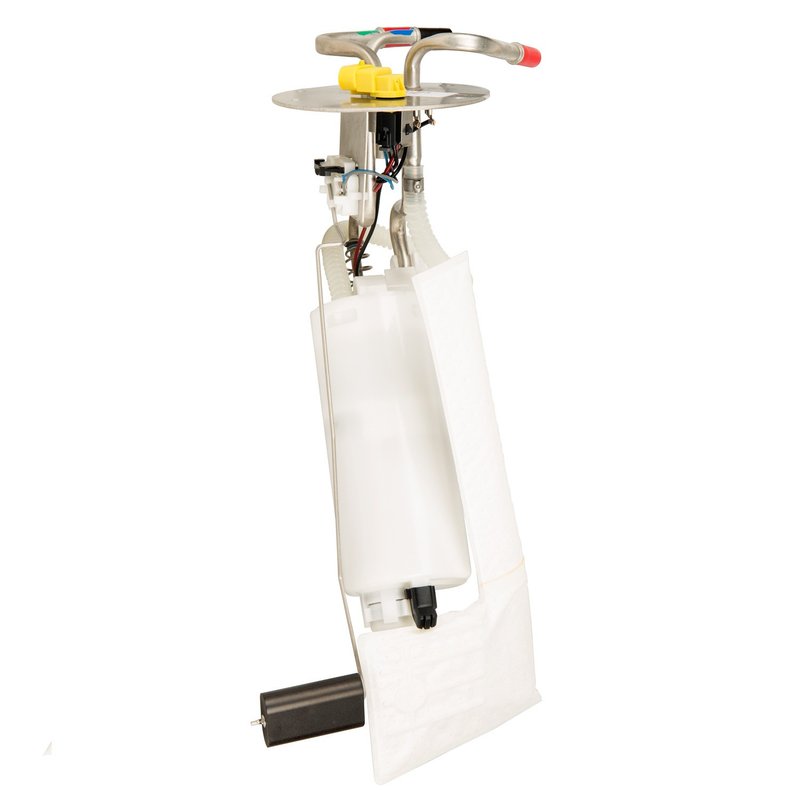

Delphi FG1213 Fuel Pump Module Assembly - Left

Reliable Fuel Pump Module Assembly for Chevrolet Corvette

The Delphi FG1213 fuel pump module assembly is designed specifically for Chevrolet Corvette models requiring a dependable in-tank fuel delivery solution. Engineered to meet standard replacement specifications, this electric fuel pump module ensures consistent fuel flow and accurate fuel level readings.

• Electric fuel pump with 12.0 voltage operation
• Compatible with gasoline fuel systems
• Includes fuel level sender assembly with float arm
• External strainer inlet type with included strainer
• Quick connect outlet with 0.375 inch outside diameter
• Four male blade terminals for secure electrical connection
• System pressure rated at 51 psi with maximum pressure of 80 psi
• Average flow rating of 60 liters per hour and average current draw of 8 amps
• Gasket or seal included for proper installation
• Standard replacement grade for reliable performance

Technical Details and Specifications

The Delphi FG1213 fuel pump module assembly is an in-tank electric pump designed to deliver consistent fuel pressure and flow for Chevrolet Corvette vehicles. It operates at 12 volts and supports gasoline fuel types. The module features a quick connect outlet with a 0.375 inch outside diameter and three outlets to ensure efficient fuel delivery. The fuel pump includes an external strainer inlet to protect the pump from debris, and a strainer is included in the package. The assembly comes with four male blade terminals, providing a secure electrical connection. It does not include a regulator or lock ring but does come with a gasket or seal to ensure a proper fit and prevent leaks. The fuel level sender assembly with float arm is integrated, allowing accurate fuel level monitoring. The system pressure is rated at 51 psi, with a maximum pressure capacity of 80 psi, supporting optimal engine performance.

Compatible Applications and Common Issues Addressed

This fuel pump module assembly is compatible with Chevrolet Corvette models requiring part number FG1213. It is designed to replace faulty or worn fuel pump modules and resolve issues such as:

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel level readings on the dashboard
• Fuel pump noise or irregular operation
• Low fuel pressure affecting engine performance
• Fuel leaks due to damaged seals or gaskets

Installation Notes and Tips

When installing the Delphi FG1213 fuel pump module assembly, ensure the vehicle’s battery is disconnected to prevent electrical hazards. Carefully remove the old fuel pump module from the in-tank position on the left side, taking care not to damage the fuel tank or lines. Replace the gasket or seal included with the new module to prevent leaks. Connect the four male blade terminals securely and verify the quick connect outlet fittings are properly seated. Follow the included instruction sheet for detailed installation steps and torque specifications. After installation, check for fuel leaks and proper fuel pressure before starting the engine.

Quality Assurance and Warranty Information

Delphi provides this FG1213 fuel pump module assembly as a standard replacement part manufactured to meet OEM specifications. The product includes a fuel level sender assembly and is tested for consistent flow and pressure ratings. While specific warranty details may vary, Delphi parts typically come with a limited warranty covering defects in materials and workmanship. Consult the product documentation or supplier for exact warranty terms.
