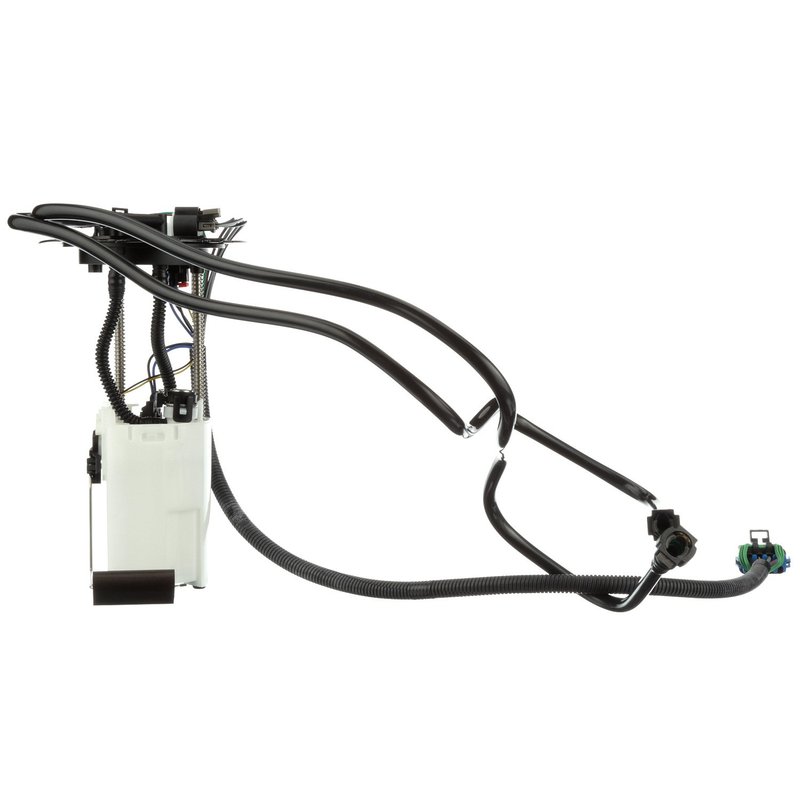

Delphi FG1214 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet Cobalt and Saturn Ion

The Delphi FG1214 fuel pump module assembly is designed to provide consistent fuel delivery for your Chevrolet Cobalt or Saturn Ion. Engineered for gas-powered vehicles, this in-tank electric fuel pump module ensures optimal performance and fuel system reliability.

• 12.0 Volt electric fuel pump with a maximum pressure of 80 psi
• Includes fuel level sender assembly with float arm for accurate fuel measurement
• Equipped with regulator and vapor pressure sensor for efficient fuel management
• Female quick connect outlet with 0.375 inch outside diameter and two outlet ports
• Seven blade-type female terminals for secure electrical connections
• External strainer inlet and included strainer for fuel filtration
• Comes with gasket and seal to ensure leak-free installation
• Standard replacement grade suitable for Chevrolet Cobalt and Saturn Ion models

Technical Details and Features

The Delphi FG1214 fuel pump module assembly operates at 12 volts and is designed specifically for gasoline fuel systems. It features an electric pump type with an average flow rating of 40 liters per hour and a system pressure of 50 psi, supporting efficient fuel delivery under various driving conditions. The module includes a built-in regulator and vapor pressure sensor to maintain consistent fuel pressure and monitor fuel vapor emissions. The assembly has seven female blade terminals, ensuring reliable electrical connectivity, and comes with a gasket and seal to prevent leaks during installation. The external strainer inlet helps filter contaminants before fuel enters the pump, extending the life of the fuel system components.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the Chevrolet Cobalt and Saturn Ion models, making it a suitable replacement part for these vehicles. The FG1214 part number corresponds to a direct fit for these models, ensuring proper installation and function without modification.

• Resolves fuel delivery issues such as engine stalling or hesitation
• Addresses fuel level sender failures causing inaccurate fuel gauge readings
• Replaces faulty regulators to maintain proper fuel system pressure
• Eliminates fuel leaks with included gasket and seal components
• Improves fuel filtration with integrated external strainer

Installation Notes and Tips

When installing the Delphi FG1214 fuel pump module assembly, ensure the vehicle’s fuel tank is properly drained and depressurized to avoid fuel spillage. Verify the electrical connections match the seven female blade terminals and confirm the fuel lines connect securely to the female quick connect outlets. Use the included gasket and seal to prevent leaks and follow the vehicle manufacturer’s torque specifications for mounting. It is recommended to inspect the fuel tank for debris before installation to prevent premature pump wear.

Quality Assurance and Warranty

Delphi manufactures the FG1214 fuel pump module assembly to meet standard replacement grade specifications, ensuring reliable performance and durability. The product includes a fuel level sender assembly and is tested for consistent flow and pressure ratings. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult the product documentation for exact warranty terms.
