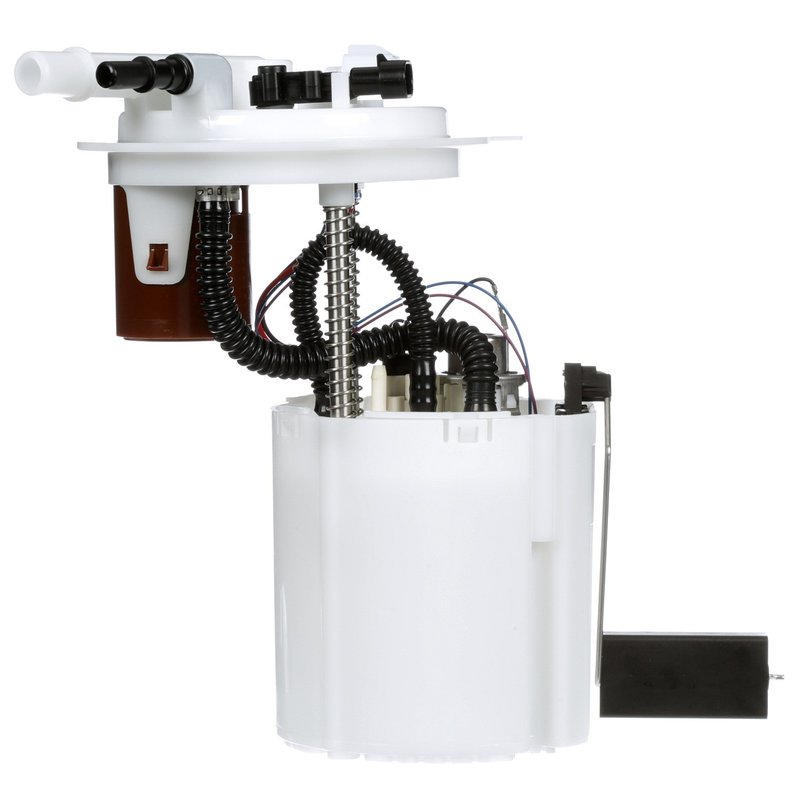

Delphi FG1219 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Chevrolet HHR

The Delphi FG1219 fuel pump module assembly is designed specifically for Chevrolet HHR models, providing reliable fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures consistent performance with integrated components for efficient operation.

Key Features of Delphi FG1219 Fuel Pump Module

• Voltage: 12.0V electric pump suitable for gas fuel systems
• Includes fuel pressure regulator and vapor pressure sensor for optimal fuel management
• In-tank design with external strainer and quick connect outlet (0.375 inch diameter)
• Fuel level sender assembly with float arm included for precise fuel gauge readings
• Four male blade terminals with 9A average current draw and 26 GPH flow rating
• System pressure rated at 58 psi with maximum pressure up to 80 psi
• Comes with gasket/seal and instruction sheet for installation

Detailed Description of the Delphi FG1219 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG1219) is engineered for use in Chevrolet HHR vehicles requiring a standard replacement fuel pump. The module features an electric pump designed to operate at 12 volts, delivering an average flow rate of 26 gallons per hour. It includes a built-in fuel pressure regulator and vapor pressure sensor to maintain consistent fuel system pressure and emissions control. The assembly is equipped with an external strainer inlet and a quick connect outlet with a 0.375-inch outside diameter, ensuring secure and efficient fuel flow. The fuel level sender assembly with float arm provides accurate fuel level readings, supported by resistance values ranging from 40 ohms (full) to 250 ohms (empty). The module’s four male blade terminals facilitate straightforward electrical connections, while the included gasket and seal help ensure a proper fit and prevent leaks.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Chevrolet HHR models
• Resolves inconsistent fuel pressure or fuel delivery problems
• Fixes inaccurate fuel gauge readings due to faulty sender assembly
• Addresses fuel system leaks with included gasket and seal
• Improves engine performance by maintaining proper fuel pressure

Installation Notes and Tips

• Designed as an in-tank fuel pump module; ensure proper tank access before installation
• Verify electrical connections match the four male blade terminals
• Use the included gasket and seal to prevent fuel leaks during installation
• Follow the instruction sheet carefully for correct assembly and mounting
• Check fuel system pressure after installation to confirm proper operation

Quality Assurance and Warranty Information

The Delphi FG1219 fuel pump module assembly is a standard replacement part manufactured to meet OEM specifications for Chevrolet HHR vehicles. It undergoes rigorous testing to ensure durability and reliable performance under normal operating conditions. Delphi provides a limited warranty covering defects in materials and workmanship, supporting confidence in the product’s quality and longevity.
