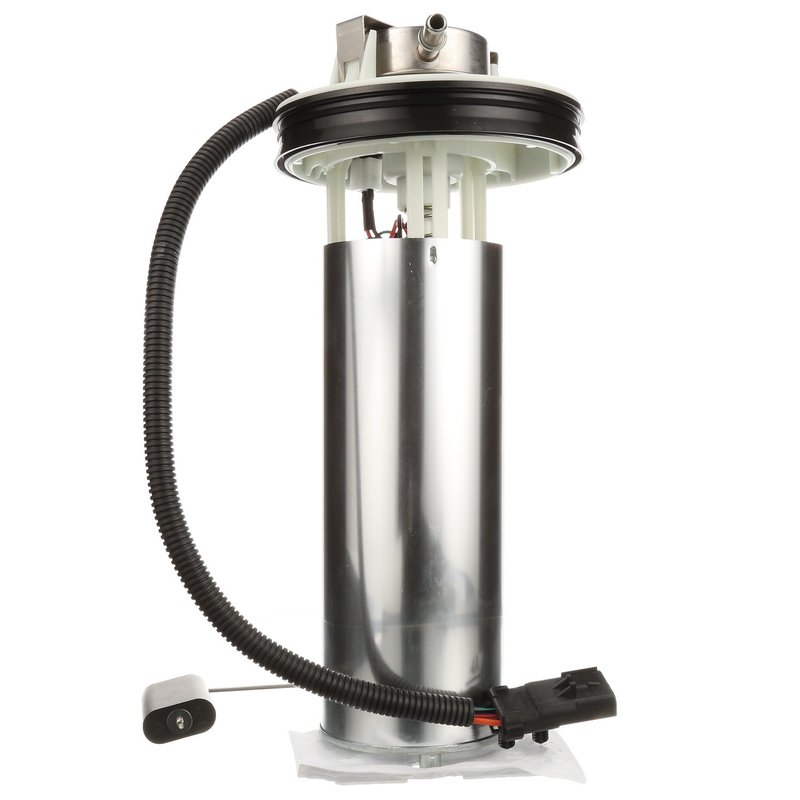

Delphi FG1221 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Jeep Wrangler

The Delphi FG1221 fuel pump module assembly is designed specifically for Jeep Wrangler models requiring a reliable in-tank electric fuel pump. Engineered to deliver consistent fuel flow and pressure, this module ensures optimal engine performance and fuel efficiency.

Key Features of Delphi FG1221 Fuel Pump Module

• 12.0 Volt electric fuel pump with integrated regulator
• Maximum pressure rating of 51 psi and system pressure of 44 psi
• Includes fuel level sender assembly with float arm for accurate fuel gauge readings
• Blade-type male terminals with four connections for secure electrical fit
• External strainer inlet and quick connect outlet with 0.375 inch diameter
• Compatible with gasoline fuel type and designed for in-tank installation
• Includes gasket and seal for proper installation and leak prevention
• Average flow rating of 45 liters per hour and average current draw of 6 amps

Detailed Description

The Delphi FG1221 fuel pump module assembly is a standard replacement part engineered for Jeep Wrangler vehicles. This electric pump module features a built-in fuel pressure regulator to maintain consistent fuel delivery at a maximum pressure of 51 psi, supporting engine demands under various driving conditions. The module includes a fuel level sender assembly with a float arm, providing accurate fuel level readings to the vehicle’s dashboard. The pump’s external strainer inlet and quick connect outlet (0.375 inch diameter) facilitate efficient fuel filtration and secure hose connections. Designed for gasoline fuel systems, this in-tank pump module operates at 12 volts and features blade-type male terminals with four connections, ensuring compatibility with the Wrangler’s electrical system. The included gasket and seal help maintain a tight fit and prevent leaks during installation.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Jeep Wrangler models
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel gauge readings due to faulty fuel level sender
• Addresses fuel delivery interruptions from clogged or damaged strainers
• Prevents fuel leaks with included gasket and seal components

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to avoid electrical hazards
• Verify compatibility with Jeep Wrangler model year and fuel system specifications
• Inspect and clean the fuel tank prior to installation to prevent contamination
• Use proper tools to avoid damaging the quick connect outlet and terminals
• Follow Delphi’s installation instructions included with the module assembly

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The FG1221 is a standard replacement grade part backed by Delphi’s quality control processes. While specific warranty terms may vary, Delphi typically offers coverage against defects in materials and workmanship to ensure reliable operation in Jeep Wrangler vehicles.
