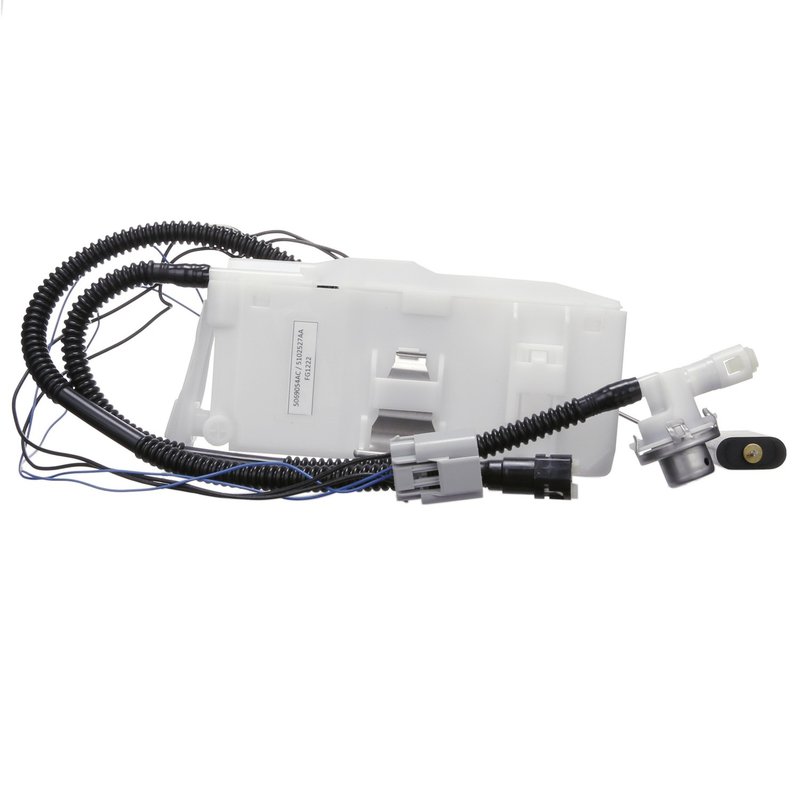

Delphi FG1222 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Jeep Liberty

The Delphi FG1222 fuel pump module assembly is designed specifically for Jeep Liberty models, providing consistent fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures optimal engine performance and fuel efficiency.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with 12.0-volt systems and gasoline fuel type
• Includes regulator, gasket, and external strainer for reliable operation
• Female quick connect outlet with 0.375-inch outside diameter
• Four female blade terminals for secure electrical connections
• Maximum system pressure of 60 psi with average flow rating of 26
• Designed for in-tank installation with external strainer inlet

Detailed Product Features and Specifications

The Delphi FG1222 fuel pump module assembly is engineered to meet the fuel delivery requirements of Jeep Liberty vehicles. Operating at 12 volts, this electric pump module supports gasoline fuel systems and includes a built-in fuel level sender assembly for accurate tank readings. The module features a female quick connect outlet with a 0.375-inch outside diameter and two outlet ports to ensure efficient fuel flow. It comes equipped with a regulator to maintain system pressure up to 60 psi and an external strainer to protect the pump from contaminants. The four female blade terminals provide secure electrical connections, while the included gasket ensures a proper seal during installation.

Common Applications and Problem Resolution

• Restores proper fuel pressure and flow in Jeep Liberty fuel systems
• Replaces faulty or failing fuel pump modules causing engine stalling or hesitation
• Resolves inaccurate fuel level readings with integrated sender assembly
• Eliminates fuel delivery interruptions due to clogged strainers or damaged seals
• Addresses electrical connection issues with reliable blade terminal design

Installation Notes and Tips

Installation of the Delphi FG1222 fuel pump module assembly requires removal of the fuel tank for in-tank access. Ensure the gasket and seal included with the module are properly seated to prevent leaks. Verify electrical connections match the four female blade terminals and confirm the fuel lines connect securely to the female quick connect outlets. Follow all safety precautions when working with fuel systems, including depressurizing the fuel system before removal.

Quality Assurance and Warranty Information

Delphi manufactures the FG1222 fuel pump module assembly to meet standard replacement quality requirements. Each unit undergoes rigorous testing to ensure consistent fuel delivery and durability. The product includes a fuel level sender assembly and is backed by Delphi's quality standards. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
