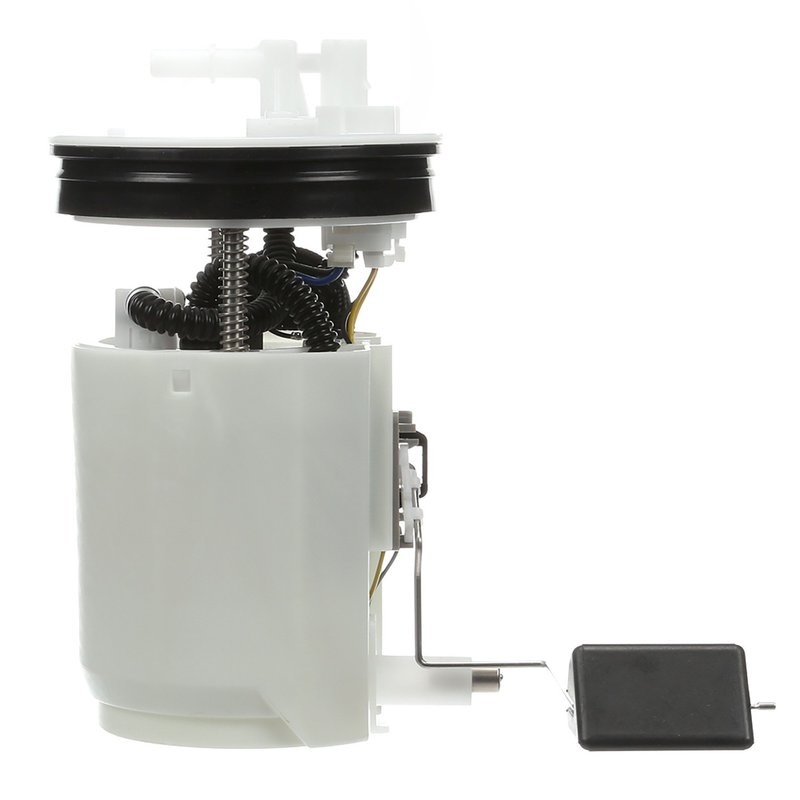

Delphi FG1223 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chrysler, Dodge, and Mitsubishi

The Delphi FG1223 fuel pump module assembly is designed to provide consistent fuel delivery for select Chrysler, Dodge, and Mitsubishi vehicles. Engineered for in-tank installation, this electric fuel pump module ensures efficient fuel flow and accurate fuel level readings for models like the Eclipse, Galant, Sebring, and Stratus.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with gas fuel systems, operating at 12 volts
• Includes regulator, external strainer, and gasket for secure installation
• Quick connect outlet with 0.375 inch outside diameter and dual outlet ports
• Designed for in-tank mounting with blade-type male terminals (5 terminals)
• System pressure rated at 44 psi with maximum pressure up to 94 psi
• Average flow rating of 35 liters per hour and average current draw of 7 amps

Technical Details and Features

The Delphi FG1223 fuel pump module assembly is a standard replacement part engineered for gas-powered vehicles requiring reliable fuel delivery. It features a 12.0-volt electric pump with a built-in fuel pressure regulator and an external strainer inlet to protect the fuel system from contaminants. The module includes a fuel level sender assembly with resistance values ranging from 110 ohms (empty) to 5 ohms (full), providing accurate fuel gauge readings. The quick connect outlet type with two outlet ports and a 0.375-inch outside diameter ensures compatibility with factory fuel lines. The assembly comes with a gasket or seal to maintain a secure and leak-free installation. This module is designed specifically for in-tank installation and uses blade-type male terminals with five connections for proper electrical interfacing.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following makes and models:

• Chrysler Sebring
• Dodge Stratus
• Mitsubishi Eclipse
• Mitsubishi Galant

It is ideal for replacing worn or failing fuel pump modules in these vehicles to restore proper fuel pressure and flow.

Common Issues Addressed by Delphi FG1223

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel pressure drops affecting engine performance and fuel efficiency
• Fuel pump noise or overheating from worn internal components
• Contaminant ingress causing clogging or damage to fuel system

Installation Notes and Tips

• Ensure the vehicle’s battery is disconnected before installation to prevent electrical hazards
• Verify compatibility with your specific Chrysler, Dodge, or Mitsubishi model and year
• Use the included gasket or seal to prevent fuel leaks during installation
• Handle the fuel pump module carefully to avoid damaging the strainer or electrical terminals
• Follow manufacturer instructions for proper torque specifications and electrical connections

Quality Assurance and Warranty

The Delphi FG1223 fuel pump module assembly is manufactured to meet OEM standards for fit, form, and function. It undergoes rigorous testing to ensure reliable operation under normal driving conditions. This part is offered as a standard replacement with a limited warranty covering defects in materials and workmanship. For detailed warranty terms, refer to the product documentation or contact the manufacturer.
