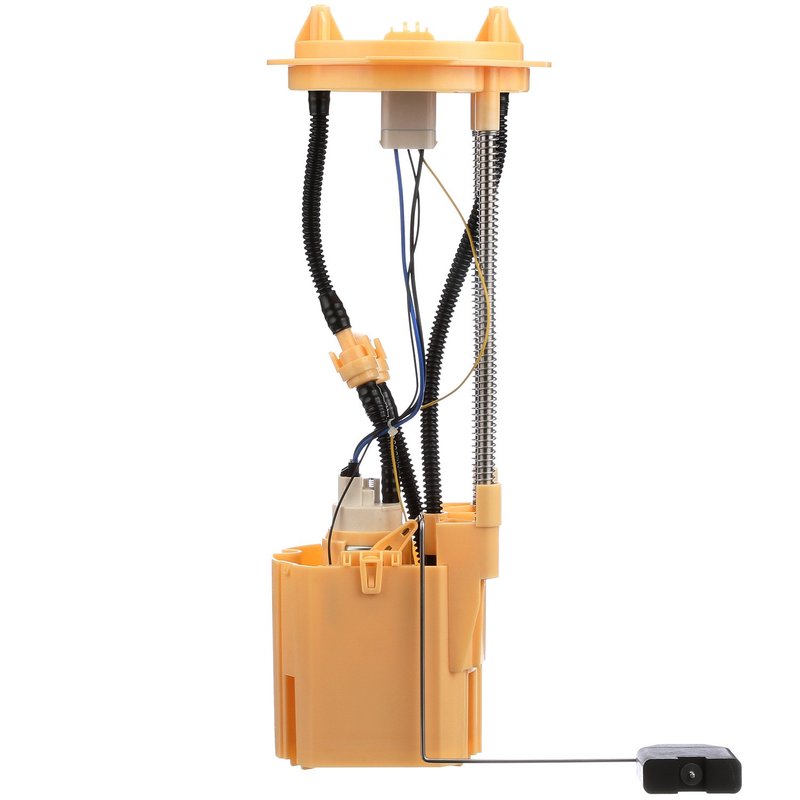

Delphi FG1224 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Dodge Ram 2500 and 3500

The Delphi FG1224 fuel pump module assembly is designed specifically for Dodge Ram 2500 and Ram 3500 diesel models. This in-tank electric fuel pump ensures consistent fuel delivery and accurate fuel level readings, supporting optimal engine performance.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with 12.0-volt electrical systems
• Designed for diesel fuel applications
• Includes external strainer and gasket for secure installation
• Quick connect outlet with 0.375-inch outside diameter
• Four male blade terminals for reliable electrical connections
• Average flow rating of 50 liters per hour and system pressure of 11 psi

Technical Specifications and Features

The Delphi FG1224 fuel pump module assembly operates at 12 volts and is engineered for diesel fuel systems in Dodge Ram 2500 and Ram 3500 trucks. It features an external strainer inlet type and a quick connect outlet with two outlets measuring 0.375 inches in diameter. The pump delivers an average flow rating of 50 liters per hour and maintains a system pressure of 11 psi, supporting efficient fuel delivery under various operating conditions. The module includes a fuel level sender assembly with resistance values ranging from 220 ohms (empty) to 20 ohms (full), providing accurate fuel level monitoring. The assembly comes with a gasket or seal to ensure a tight fit and prevent leaks during installation.

Applications and Problem Resolution

This fuel pump module assembly is compatible with Dodge Ram 2500 and Ram 3500 diesel trucks and is intended for use as a standard replacement part. It addresses common fuel system issues such as:

• Inconsistent fuel delivery causing engine hesitation or stalling
• Faulty fuel level readings leading to inaccurate dashboard gauges
• Fuel pump failure resulting in no-start conditions
• Leaks due to worn or missing seals and gaskets
• Electrical connection problems from damaged terminals

Installation Notes and Tips

Installation of the Delphi FG1224 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the gasket or seal included is properly seated to prevent fuel leaks. The four male blade terminals should be connected securely to the vehicle’s wiring harness. Use caution when handling the external strainer to avoid damage. Verify the quick connect outlets are firmly attached to the fuel lines. Follow all safety protocols when working with fuel system components.

Quality Assurance and Warranty

Delphi manufactures the FG1224 fuel pump module assembly to meet standard replacement part specifications, ensuring reliable performance and durability. The product includes a fuel level sender assembly and is tested for consistent flow and pressure ratings. While specific warranty details are not provided here, Delphi products typically come with manufacturer-backed warranties covering defects in materials and workmanship. Consult the product documentation or manufacturer for exact warranty terms.
