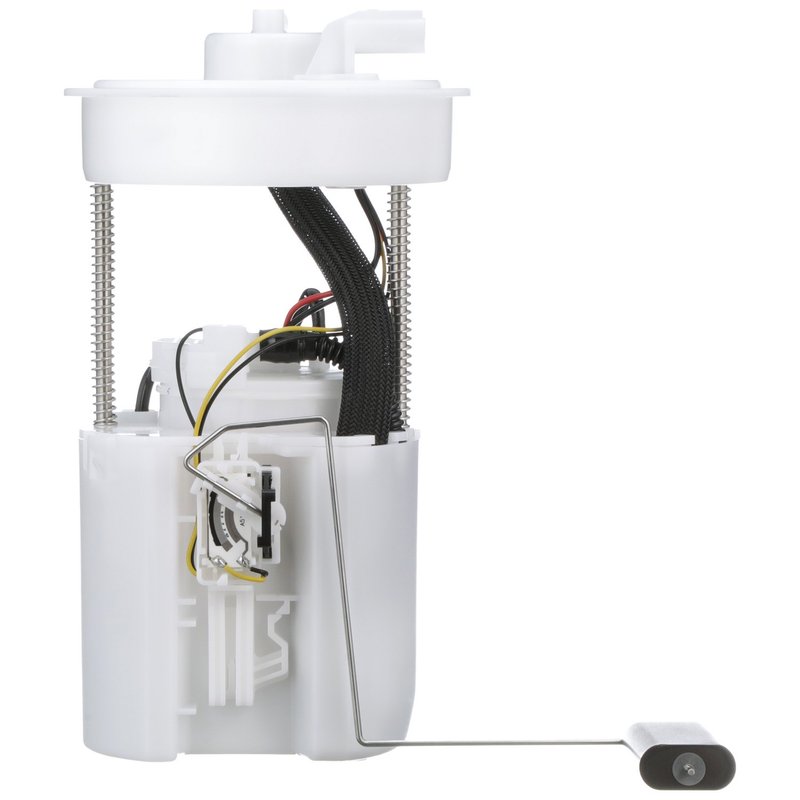

Delphi FG1225 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG1225 fuel pump module assembly is designed specifically for Chrysler PT Cruiser vehicles. This in-tank electric fuel pump ensures reliable fuel delivery with integrated components to maintain optimal engine performance.

• 12.0 Volt electric fuel pump with a maximum pressure of 94 psi
• Includes regulator, internal strainer, and gasket for secure installation
• Quick connect outlet with 0.375 inch outside diameter for efficient fuel flow
• Blade-type male terminals with four connections for stable electrical contact
• Standard replacement grade designed for gas fuel systems

Technical Details and Features

The Delphi FG1225 fuel pump module assembly operates at an average current draw of 7 amps and delivers an average flow rating of 35 liters per hour. It features an internal strainer inlet and a quick connect outlet to ensure clean fuel delivery and ease of installation. The module includes a fuel pressure regulator to maintain system pressure at 58 psi, supporting consistent engine operation. The assembly comes with a gasket or seal to prevent leaks but does not include a lock ring or fuel level sender assembly. The resistance values range from 70 ohms when empty to 1050 ohms when full, indicating the electrical characteristics of the pump.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Chrysler PT Cruiser models requiring a 12-volt electric fuel pump designed for gasoline fuel systems. The part number FG1225 ensures proper fitment and function within the fuel delivery system of these vehicles.

• Resolves fuel delivery interruptions and engine stalling
• Addresses low fuel pressure issues affecting performance
• Replaces faulty or noisy fuel pumps in Chrysler PT Cruiser
• Eliminates fuel leaks with included gasket and seal
• Improves fuel system reliability and efficiency

Installation Notes and Tips

Installation of the Delphi FG1225 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure all electrical connections use the blade-type male terminals provided. Verify the quick connect outlet is securely attached to the fuel line with the 0.375 inch diameter fitting. Replace the gasket or seal during installation to prevent leaks. Follow vehicle-specific service manual instructions for safe and proper installation.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for Chrysler PT Cruiser vehicles. This standard replacement grade part undergoes rigorous testing to ensure durability and performance. While specific warranty details may vary, Delphi products typically include coverage against manufacturing defects to provide confidence in your purchase.
