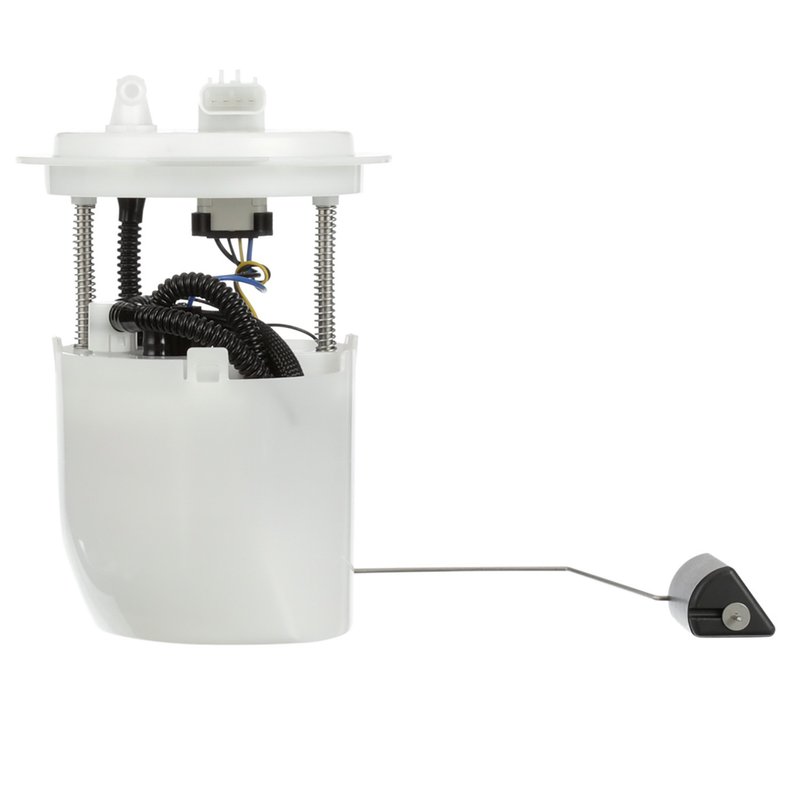

Delphi FG1226 Fuel Pump Module Assembly

Delphi FG1226 Fuel Pump Module Assembly Overview

The Delphi FG1226 fuel pump module assembly is designed specifically for Jeep Wrangler models requiring a reliable in-tank electric fuel pump. Engineered to deliver consistent fuel flow and pressure, this module supports gasoline fuel systems with precise electrical and mechanical specifications.

• Outlet outside diameter: 0.375 inches
• Voltage: 12.0 volts
• Fuel type: Gasoline
• Maximum pressure: 94 psi
• Terminal type: Blade, 4 terminals, male
• Includes gasket and internal strainer
• Quick connect outlet with one outlet port
• In-tank installation with internal strainer and fuel level sender assembly included
• Average current draw: 9 amps, average flow rating: 55 liters per hour
• Standard replacement grade part

Technical Details and Features

The Delphi FG1226 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems in Jeep Wrangler vehicles. It features a blade terminal type with four male terminals, ensuring secure electrical connections. The pump delivers a maximum pressure of 94 psi and maintains a system pressure of 51 psi, supporting efficient fuel delivery under various driving conditions.

This module includes an internal strainer and a fuel level sender assembly with float arm, providing accurate fuel level readings and protecting the pump from debris. The outlet is a quick connect type with a 0.375-inch outside diameter, facilitating straightforward installation and connection to the fuel line. The assembly comes with a gasket to ensure a proper seal within the fuel tank.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Jeep Wrangler models requiring an in-tank electric fuel pump designed for gasoline engines. The Delphi FG1226 is a direct replacement part that supports the fuel delivery system by maintaining proper pressure and flow rates.

• Resolves fuel delivery issues such as engine stalling or hesitation
• Replaces faulty or worn-out fuel pump modules
• Addresses inaccurate fuel level readings due to sender assembly failure
• Prevents fuel contamination with the included internal strainer
• Improves overall fuel system reliability in Jeep Wrangler vehicles

Installation Notes and Tips

Installation of the Delphi FG1226 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the gasket is properly seated to prevent fuel leaks. Verify electrical connections to the blade terminals are secure and free of corrosion. The quick connect outlet simplifies fuel line attachment, but confirm a tight fit to avoid pressure loss. Follow all safety precautions when working with fuel system components.

Quality Assurance and Warranty

The Delphi FG1226 fuel pump module assembly is manufactured to meet standard replacement grade specifications, ensuring reliable performance and durability. It includes a fuel level sender assembly and internal strainer to maintain system integrity. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship.
