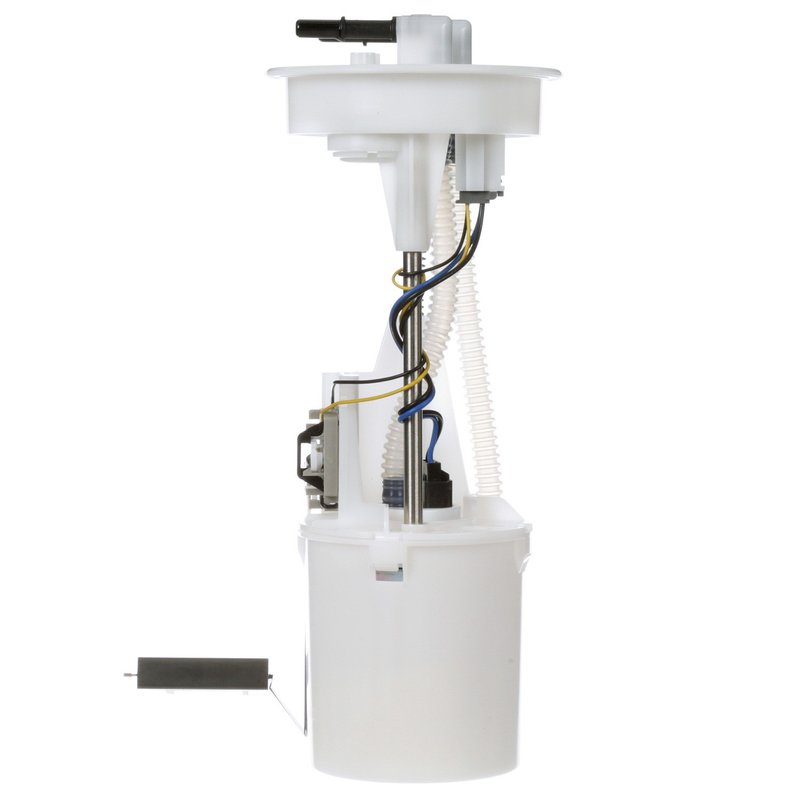

Delphi FG1227 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Land Rover Discovery

The Delphi FG1227 fuel pump module assembly is designed specifically for Land Rover Discovery models, providing consistent fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures optimal performance and compatibility with your vehicle's fuel system.

Key Features of Delphi FG1227 Fuel Pump Module

• 12.0 Volt electric fuel pump with a maximum pressure of 80 psi
• Includes fuel level sender assembly with float arm for precise fuel measurement
• Equipped with an external strainer and inlet strainer to protect the fuel system
• Quick connect outlet type with 0.375 inch outside diameter for easy installation
• Four male blade terminals for secure electrical connections
• Regulator and gasket/seal included for proper sealing and pressure control
• Average flow rating of 45 liters per hour and system pressure of 51 psi

Detailed Description of the Delphi FG1227 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG1227) is engineered for use with gasoline-powered Land Rover Discovery vehicles. The module is an in-tank electric pump designed to maintain consistent fuel pressure and flow, supporting engine performance and efficiency. It features a built-in fuel level sender assembly with a float arm, allowing accurate fuel gauge readings. The pump includes an external strainer and inlet strainer to filter contaminants, helping to extend the life of the fuel system components. The quick connect outlet with a 0.375 inch diameter simplifies installation and ensures a secure fuel line connection. With four male blade terminals, the electrical connections are reliable and straightforward. The included regulator maintains system pressure at 51 psi, while the gasket and seal ensure a tight fit to prevent leaks.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Land Rover Discovery models
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel gauge readings due to faulty fuel level sender
• Prevents fuel leaks with included gasket and seal components
• Improves fuel system reliability by filtering contaminants with integrated strainers

Installation Notes and Tips

• Compatible with Land Rover Discovery fuel systems; verify vehicle year and specifications before installation
• Ensure electrical connections match the four male blade terminals for proper function
• Use the included gasket and seal to prevent fuel leaks during installation
• Handle the float arm carefully to avoid damage to the fuel level sender assembly
• Follow vehicle manufacturer guidelines for in-tank fuel pump replacement procedures

Quality Assurance and Warranty Information

The Delphi FG1227 fuel pump module assembly is a standard replacement part manufactured to meet OEM specifications for Land Rover Discovery vehicles. It undergoes rigorous testing to ensure durability and reliable performance under normal operating conditions. While specific warranty terms may vary, Delphi products typically include a limited warranty covering defects in materials and workmanship. Consult product documentation or your parts provider for detailed warranty information.
