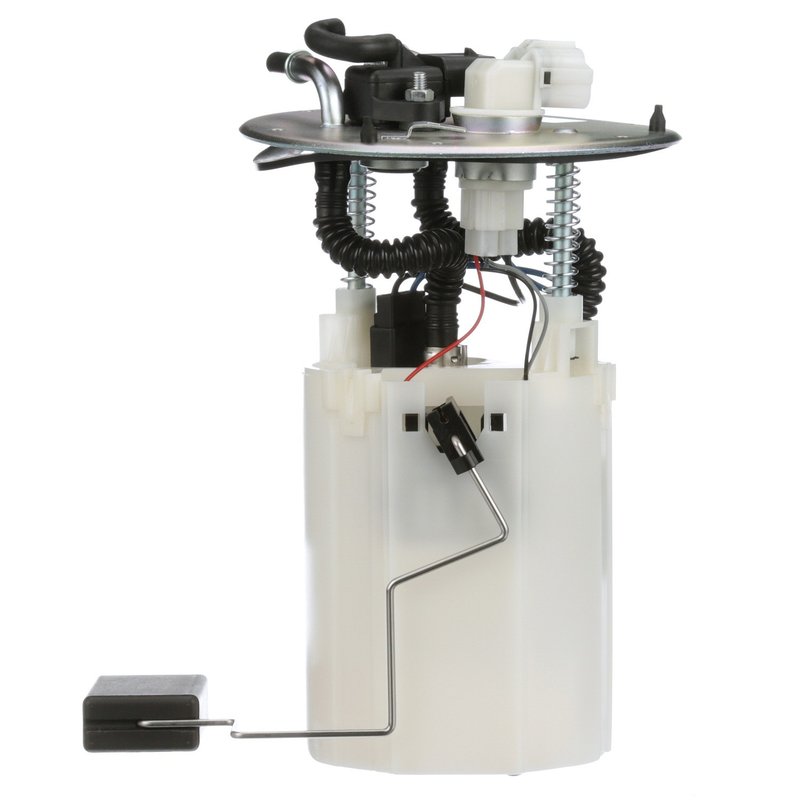

Delphi FG1231 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Kia Rio

The Delphi FG1231 fuel pump module assembly is designed specifically for Kia Rio models, providing consistent fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures optimal engine performance and fuel efficiency.

Key Features of Delphi FG1231 Fuel Pump Module

• 12.0 Volt electric fuel pump with a maximum pressure of 80 psi
• Includes fuel level sender assembly with float arm for precise fuel measurement
• Internal strainer inlet and included strainer for fuel filtration
• Quick connect outlet type with 0.375 inch outside diameter
• Regulator and gasket/seal included for secure installation
• Blade-type male terminals with 5 terminal quantity for reliable electrical connections
• Average flow rating of 35 and system pressure of 44 psi for steady fuel supply
• Compatible with gasoline fuel type and designed as a standard replacement part
• Vapor pressure sensor integrated for emissions control

Detailed Description of the Delphi FG1231 Fuel Pump Module

The Delphi FG1231 fuel pump module assembly is engineered to meet the specific fuel delivery requirements of Kia Rio vehicles. This electric in-tank pump operates at 12 volts and features an internal strainer to prevent contaminants from entering the fuel system. The module includes a fuel level sender assembly with a float arm, providing accurate fuel gauge readings. With a maximum pressure rating of 80 psi and a system pressure of 44 psi, it maintains consistent fuel flow to the engine. The quick connect outlet with a 0.375 inch diameter ensures easy and secure fuel line attachment. The included regulator maintains proper fuel pressure, while the blade-type male terminals with five connections support stable electrical performance. This standard replacement part is designed for gasoline fuel systems and includes a vapor pressure sensor to support emissions compliance.

Common Applications and Issues Addressed

• Restores proper fuel delivery in Kia Rio models experiencing fuel starvation or engine hesitation
• Replaces faulty fuel level sender assemblies causing inaccurate fuel gauge readings
• Solves issues related to clogged or damaged fuel strainers affecting fuel flow
• Addresses electrical connection problems with blade-type terminals ensuring consistent pump operation
• Maintains system pressure to prevent engine performance issues such as stalling or rough idling

Installation Notes and Tips

• Designed as an in-tank fuel pump module; ensure proper handling to avoid damage during installation
• Verify compatibility with Kia Rio model year before installation
• Use included gasket or seal to prevent fuel leaks
• Check electrical connections for secure fit on blade-type male terminals
• Follow vehicle manufacturer’s service manual for safe removal and installation procedures

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. The FG1231 part undergoes rigorous testing to ensure durability and reliable performance in Kia Rio vehicles. This standard replacement fuel pump module assembly includes a warranty that covers defects in materials and workmanship, providing confidence in product quality.
