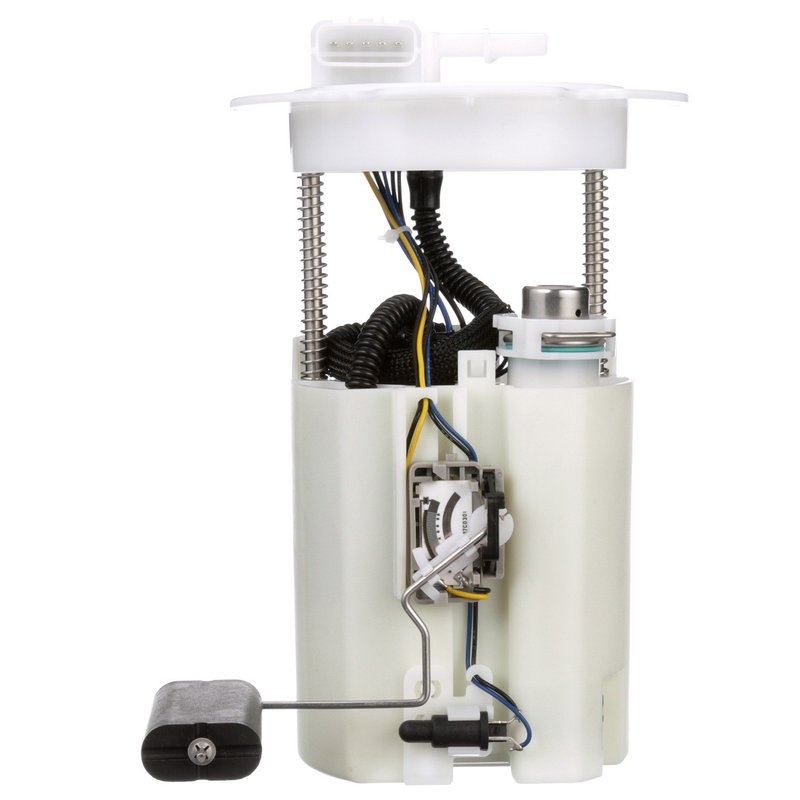

Delphi FG1237 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Nissan Sentra

The Delphi FG1237 fuel pump module assembly is designed specifically for Nissan Sentra models requiring a dependable in-tank fuel delivery solution. This electric fuel pump module ensures consistent fuel flow and pressure to maintain optimal engine performance.

• Outlet outside diameter: 0.375 inches for precise fuel line connection
• Operates on 12.0 volts compatible with standard automotive electrical systems
• Designed for gasoline fuel type applications
• Includes gasket, seal, lock ring, and internal strainer for secure installation and filtration
• Maximum pressure rating of 54 psi with system pressure at 51 psi
• Equipped with a fuel level sender assembly for accurate fuel gauge readings
• Blade-type male terminals with 5 terminal quantity for reliable electrical connections
• Quick connect outlet type with one outlet for efficient fuel delivery
• Average flow rating of 28 liters per hour and average current draw of 5 amps

Detailed Product Description

The Delphi FG1237 fuel pump module assembly is an electric in-tank pump engineered to meet the fuel delivery requirements of Nissan Sentra vehicles. Its internal strainer and included gasket and seal help prevent contaminants from entering the fuel system, protecting engine components. The module’s quick connect outlet and blade-type terminals simplify installation and ensure secure connections. With a maximum pressure of 54 psi and system pressure of 51 psi, this pump maintains consistent fuel flow for smooth engine operation. The integrated fuel level sender assembly provides accurate fuel level readings, supporting the vehicle’s fuel gauge functionality.

Common Applications and Problem Resolution

• Replaces faulty or worn-out fuel pump modules in Nissan Sentra models
• Resolves issues with inconsistent fuel pressure or engine stalling
• Addresses fuel delivery interruptions caused by clogged strainers or damaged seals
• Fixes inaccurate fuel gauge readings due to faulty fuel level sender assemblies
• Eliminates electrical connection problems with blade-type terminals

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to prevent electrical hazards
• Verify compatibility with Nissan Sentra model year and engine specifications
• Use included gasket, seal, and lock ring to secure the module and prevent fuel leaks
• Handle the fuel pump module carefully to avoid damage to the internal strainer and electrical terminals
• Follow manufacturer instructions for proper torque specifications during installation

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet standard replacement grade specifications, ensuring reliable performance and durability. The FG1237 part undergoes rigorous quality control testing to comply with OEM standards. While specific warranty details may vary, Delphi products typically include a limited warranty covering defects in materials and workmanship.
