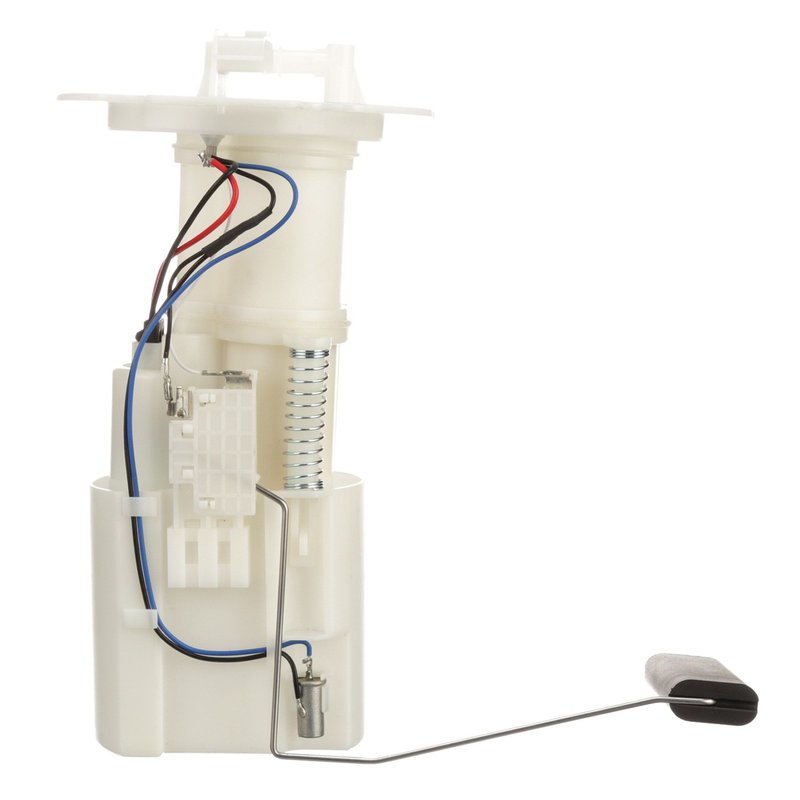

Delphi FG1242 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Infiniti FX35

The Delphi FG1242 fuel pump module assembly is designed specifically for the Infiniti FX35, providing consistent fuel delivery and accurate fuel level readings. This in-tank electric fuel pump ensures optimal performance for gasoline engines requiring a 12-volt power supply.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Infiniti FX35 gasoline models
• 12.0 volts operating voltage with 5 blade terminals (male)
• Maximum pressure rating of 80 psi and system pressure of 51 psi
• Internal strainer inlet and quick connect outlet (0.375 inch diameter)
• Average flow rating of 35 liters per hour and average current draw of 9 amps
• Includes strainer but no regulator, gasket, or lock ring

Detailed Product Description

The Delphi FG1242 fuel pump module assembly is engineered as a standard replacement part for the Infiniti FX35. It features an internal electric pump designed to operate at 12 volts, delivering a steady fuel flow rate of 35 liters per hour. The module includes an internal strainer inlet to filter fuel before it reaches the pump, helping to protect the fuel system from contaminants. The outlet uses a quick connect fitting with a 0.375-inch outside diameter, facilitating straightforward installation and secure fuel line connection.

This fuel pump module assembly also incorporates a fuel level sender assembly with a float arm, providing accurate fuel level readings to the vehicle’s dashboard. The unit is equipped with five male blade terminals for electrical connections, supporting reliable power delivery and signal transmission. The pump operates within a maximum pressure of 80 psi and maintains a system pressure of 51 psi, suitable for the fuel system requirements of the Infiniti FX35.

Common Applications and Issues Resolved

• Replacement for failing or noisy fuel pumps in Infiniti FX35 gasoline models
• Resolves inconsistent fuel delivery causing engine hesitation or stalling
• Fixes inaccurate fuel gauge readings due to faulty fuel level sender
• Addresses fuel system pressure drops affecting engine performance
• Eliminates fuel contamination issues with integrated internal strainer

Installation Notes and Tips

When installing the Delphi FG1242 fuel pump module assembly, ensure the vehicle’s battery is disconnected to prevent electrical hazards. The module is designed for in-tank installation, so proper handling of the fuel tank and fuel lines is essential. Use appropriate tools to disconnect and reconnect the quick connect outlet fitting securely. Verify all electrical connections to the five blade terminals are tight and corrosion-free for optimal operation. Follow the vehicle manufacturer’s service manual for detailed removal and installation procedures.

Quality Assurance and Warranty

Delphi manufactures the FG1242 fuel pump module assembly to meet or exceed OEM specifications for the Infiniti FX35. This standard replacement part undergoes rigorous testing to ensure durability and reliable performance under normal operating conditions. While specific warranty details are not provided here, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult the product documentation or supplier for exact warranty terms.
