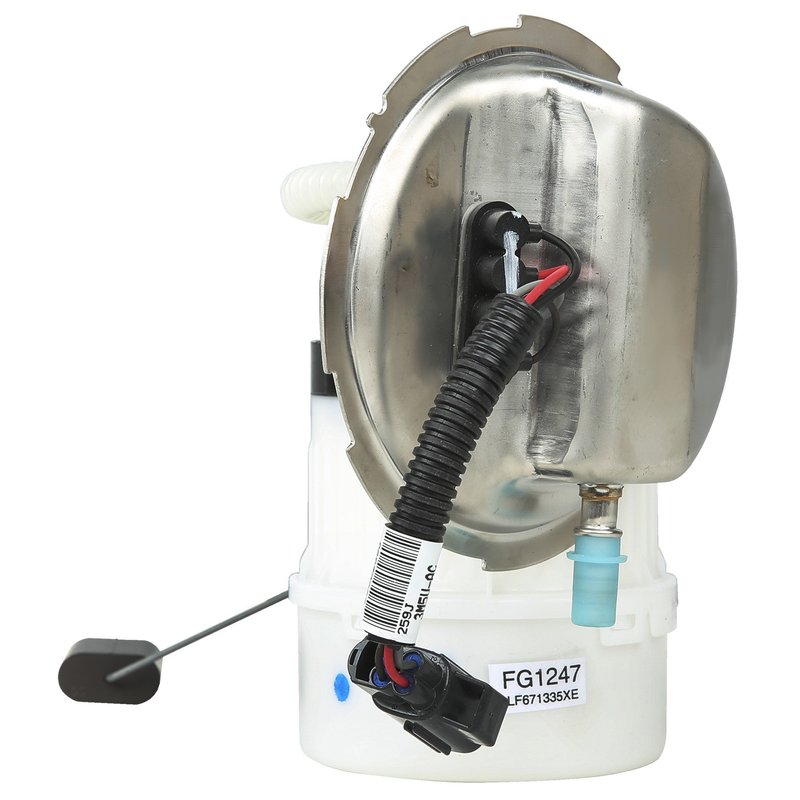

Delphi FG1247 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Mazda 3

The Delphi FG1247 fuel pump module assembly is designed specifically for Mazda 3 vehicles, providing consistent fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures optimal performance and compatibility with your vehicle's fuel system.

Key Features of Delphi FG1247 Fuel Pump Module

• 12.0 Volt electric fuel pump with integrated regulator
• In-tank design with internal strainer for clean fuel intake
• Includes fuel level sender assembly with float arm
• Quick connect outlet with 0.375 inch outside diameter
• Blade-type male terminals, 4 in total for secure electrical connection
• Maximum pressure rating of 94 psi and system pressure of 51 psi
• Average flow rating of 50 liters per hour and average current draw of 7 amps
• Standard replacement grade for reliable performance

Detailed Description of the Delphi FG1247 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG1247) is engineered for use with Mazda 3 models, ensuring precise fitment and function. The electric pump operates at 12 volts and features an internal strainer inlet to prevent debris from entering the fuel system. The module includes a fuel level sender assembly with a float arm, providing accurate fuel gauge readings. The quick connect outlet with a 0.375 inch diameter allows for straightforward installation and secure fuel line connection. With a maximum pressure of 94 psi and a system pressure of 51 psi, this pump module maintains consistent fuel delivery under various driving conditions. The blade-type male terminals (four in total) facilitate reliable electrical connections, supporting the pump’s average current draw of 7 amps and flow rating of 50 liters per hour.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Mazda 3 vehicles
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel level readings due to faulty sender assemblies
• Addresses fuel delivery interruptions from clogged or damaged strainers
• Restores proper electrical connections with blade terminal design

Installation Notes and Tips

• Compatible with Mazda 3 models requiring a 12V in-tank fuel pump module
• Ensure the fuel tank is empty or at a low level before removal
• Handle the float arm carefully to avoid damage during installation
• Verify all electrical connections are secure and terminals are clean
• Check for fuel leaks after installation and before starting the engine

Quality Assurance and Warranty Information

The Delphi FG1247 fuel pump module assembly is manufactured to meet standard replacement grade specifications, ensuring dependable operation and durability. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Always consult the product documentation or supplier for exact warranty terms.
