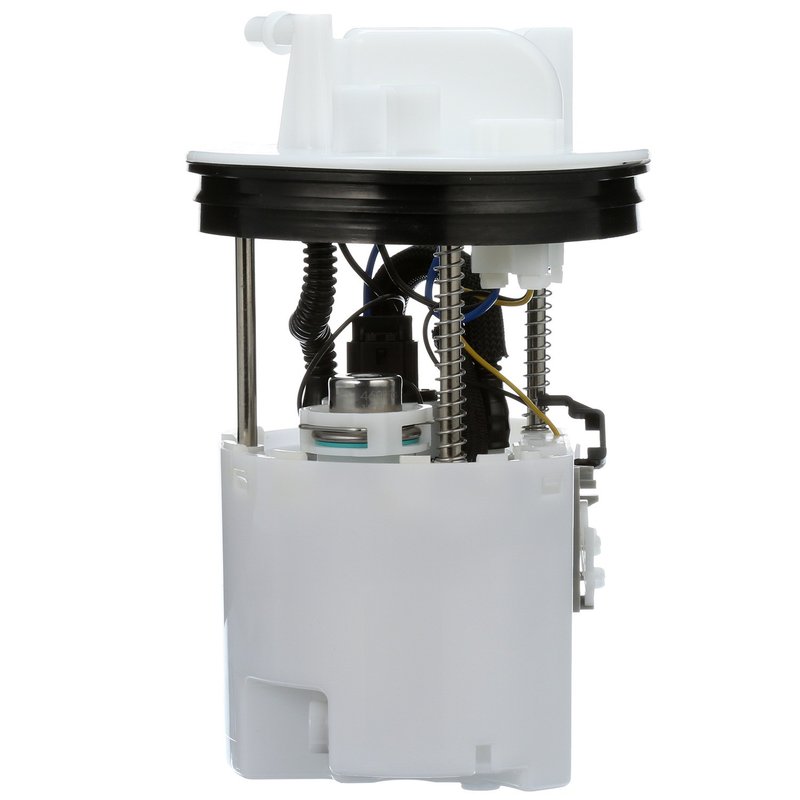

Delphi FG1248 Fuel Pump Module Assembly
OE Quality 60-Day Returns
Delphi

Delphi FG1248 Fuel Pump Module Assembly

Brand Delphi FG1248
Average Current Draw 7
Average Flow Rating 45
Fuel Level Sender Assembly Included No
Fuel Type Gas
Gasket Or Seal Included Yes
In Tank or External In Tank
Inlet Type Strainer
Internal Or External Strainer Internal
Item Grade Standard Replacement
Lock Ring Included No
Maximum Pressure 94.0
Outlet Outside Diameter 0.375
Outlet Quantity 1
Outlet Type Quick Connect
Package Contents Fuel Pump Module Assembly w/o Float Arm, Instruction Sheet
Pump Type Electric
Regulator Included Yes
Resistance Ohms Empty 126.0
Resistance Ohms Full 15.0
Strainer Included Yes
System Pressure 58 psi
Terminal Gender Male
Terminal Quantity 4
Terminal Type Blade
Vapor Pressure Sensor No
Voltage 12.0
Fits Mazda · 2 vehicles

Standard replacement. Direct-fit fuel pump module assembly for straightforward service.

Electric pump. Delivers consistent fuel flow with a 45 average flow rating.

Includes key components. Regulator, gasket, and strainer are included for a complete install.

Cross-references A33076, AJ57-13-35ZA and AJ57-13-35ZB for the same application. See all 7.

$254.29Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $254.29
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Fuel Pump Module Assembly options

Delphi FG1248 Fuel Pump Module Assembly

Delphi FG1248 is an in-tank electric fuel pump module assembly for gas applications, built as a standard replacement for select Mazda 6 models. It includes a built-in regulator, strainer, gasket or seal, and a quick-connect outlet for a direct service replacement.

  • In-tank electric fuel pump module assembly for 12V gas systems
  • Built-in fuel pressure regulator and 58 psi system pressure
  • Maximum pressure rating of 94.0
  • Quick-connect outlet with 0.375 in. outside diameter
  • Internal strainer included for fuel delivery protection
  • Blade terminals, male terminal type, 4 terminals
  • Gasket or seal included for service installation
  • Average flow rating of 45 and average current draw of 7
  • Standard replacement design from Delphi OE heritage

Delphi FG1248 is engineered for fuel delivery service on 2003-2004 Mazda 6 models without roof mounted antenna. It is a fuel pump module assembly without float arm and is built around Delphi’s OE experience supplying automakers with fuel system components. This part cross-references A33076 and E8590M for the same application.

Common Fuel System Issues It Can Address

  • Hard starting caused by weak fuel pressure
  • Engine stalling from inconsistent fuel delivery
  • Loss of power under load from a failing in-tank pump
  • Fuel pressure irregularities in the Mazda 6 fuel system
  • Noise or wear associated with an aging pump module

Installation Notes and Tips

Compatible With 2003-2004 Mazda 6, N/A. The fitment notes specify vehicles without roof mounted antenna. Clean the fuel tank before installation to reduce the risk of contaminating the replacement pump; Delphi recommends fuel tank cleaning kit FC01. Verify electrical connector style, outlet connection, and system pressure requirements before installation.

Quality Assurance

Delphi builds this fuel pump module assembly using OE-based engineering knowledge developed over decades of supplying original equipment to major automakers. FG1248 is a standard replacement part intended to meet the needs of the listed Mazda 6 applications with the included regulator, strainer, and seal components.

Related reading

This part fits 2 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2004Mazda6N/Awithout Roof Mounted Antenna; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2003Mazda6N/Awithout Roof Mounted Antenna; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
Directly replaces or cross-references 7 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
A33076AJ57-13-35ZAAJ57-13-35ZBCFG1248E8590MP76309MSP4028M
