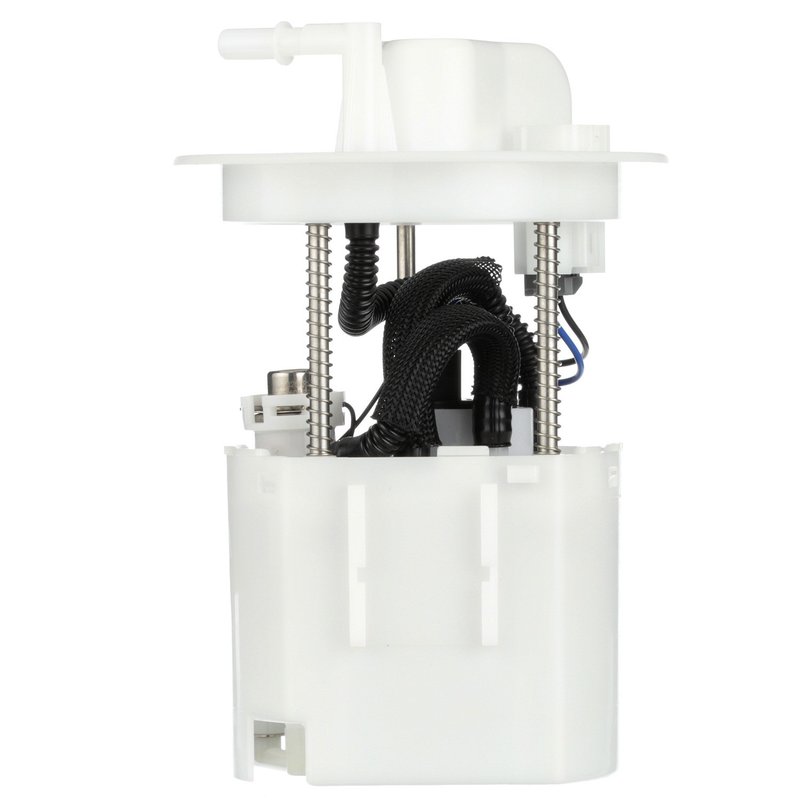

Delphi FG1250 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Mazda RX-8

The Delphi FG1250 fuel pump module assembly is designed specifically for the Mazda RX-8, providing reliable fuel delivery with precise pressure control. This in-tank electric fuel pump ensures consistent performance for gasoline engines requiring a 12-volt power supply.

• Outlet outside diameter: 0.375 inches
• Voltage: 12.0 V
• Fuel type: Gasoline
• Includes fuel pressure regulator
• Maximum pressure rating: 80 psi
• Blade-type terminals, 4 male terminals
• Includes gasket and internal strainer
• Quick connect outlet with one outlet port
• Average current draw: 8 amps
• Average flow rating: 60 liters per hour
• Standard replacement grade

Technical Details and Features

The Delphi FG1250 fuel pump module assembly is an electric, in-tank pump designed to meet the fuel delivery requirements of the Mazda RX-8. It features an internal strainer inlet and a quick connect outlet for efficient fuel flow and easy installation. The included fuel pressure regulator maintains system pressure at 51 psi, with a maximum pressure capacity of 80 psi, ensuring stable fuel supply under various operating conditions. The pump operates on a 12-volt system drawing an average current of 8 amps and delivers a flow rate of approximately 60 liters per hour, suitable for gasoline engines.

Compatible Applications and Common Issues Addressed

• Compatible with Mazda RX-8 models requiring a standard replacement fuel pump module
• Resolves fuel delivery problems such as engine hesitation or stalling
• Addresses low fuel pressure issues affecting engine performance
• Replaces faulty or noisy fuel pumps causing drivability concerns
• Helps correct fuel pump failures due to clogged strainers or worn components

Installation Notes and Tips

Installation of the Delphi FG1250 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the gasket included is properly seated to prevent fuel leaks. The blade-type male terminals should be connected securely to the vehicle’s wiring harness. Use caution when handling fuel lines and connectors, especially the quick connect outlet, to avoid damage. It is recommended to follow Mazda RX-8 factory service procedures for fuel system maintenance and pump replacement.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications and undergo rigorous testing to ensure durability and performance. This FG1250 fuel pump module assembly is a standard replacement part designed to restore proper fuel delivery in the Mazda RX-8. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship.
