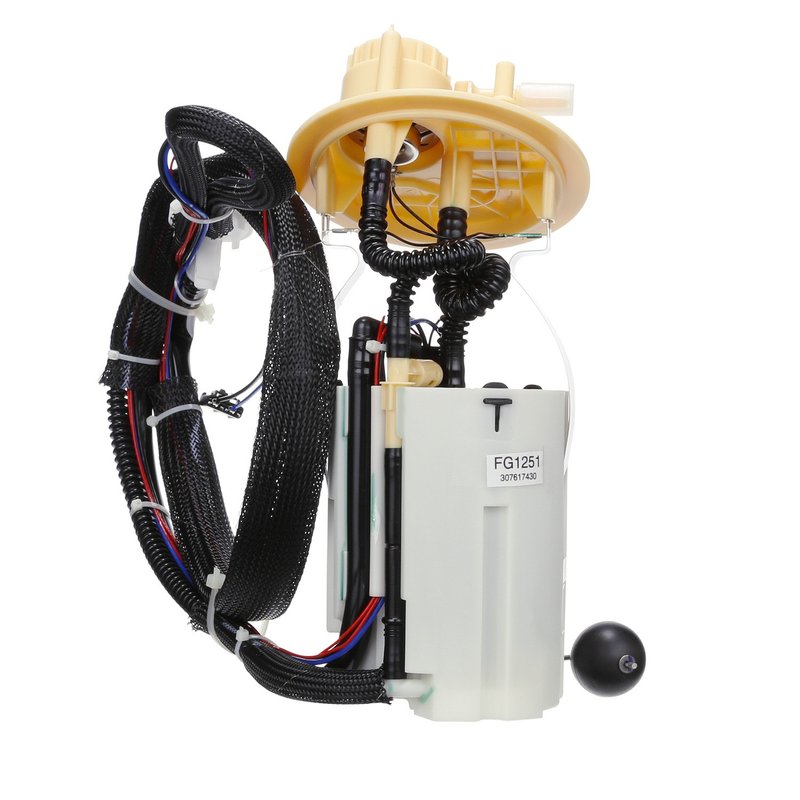

Delphi FG1251 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG1251 fuel pump module assembly is designed for reliable fuel delivery in select Volvo models. Engineered for in-tank installation, this electric fuel pump module supports gas fuel systems and includes a fuel level sender assembly for accurate fuel measurement.

• Compatible with Volvo S60, S80, and V70 models
• 12.0 Volt electric pump with a maximum pressure of 80 psi
• Includes regulator and internal strainer for fuel filtration
• Quick connect outlet with 0.313 inch outside diameter
• Fuel level sender assembly with float arm included
• Blade-type male terminals with two connections
• Average flow rating of 40 liters per hour and system pressure of 51 psi

Technical Details and Features

The Delphi FG1251 fuel pump module assembly operates at 12 volts and is designed specifically for gasoline fuel systems. It features an internal strainer inlet type and a quick connect outlet with three outlets, ensuring efficient fuel flow and filtration. The module includes a regulator to maintain consistent fuel pressure up to 80 psi, supporting optimal engine performance. The blade-type male terminals with two connections provide secure electrical connectivity. Additionally, the fuel level sender assembly with float arm allows for accurate fuel level readings, essential for vehicle fuel management.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Volvo S60, S80, and V70 models. It is intended for use as a standard replacement part in the fuel delivery system, specifically designed for in-tank installation. The FG1251 part number ensures proper fitment and function within these Volvo vehicles, supporting their fuel system requirements.

• Resolves fuel delivery issues such as inconsistent fuel pressure
• Addresses fuel pump failure symptoms including engine stalling or hesitation
• Replaces faulty fuel level sender assemblies for accurate fuel gauge readings
• Improves fuel filtration with the included internal strainer
• Supports stable electrical connections with blade-type terminals

Installation Notes and Tips

Installation of the Delphi FG1251 fuel pump module assembly requires removal of the fuel tank for in-tank access. Ensure the vehicle’s battery is disconnected before beginning installation to prevent electrical hazards. Verify that the quick connect outlets and blade terminals are securely connected to avoid fuel leaks or electrical issues. Follow the included instruction sheet carefully for proper seal placement and float arm adjustment. Professional installation is recommended for optimal results.

Quality Assurance and Warranty

The Delphi FG1251 fuel pump module assembly is manufactured to meet standard replacement part specifications, ensuring reliable performance and durability. The product includes a fuel pump module assembly with float arm, seal, and instruction sheet. While specific warranty details are not provided, Delphi products typically adhere to industry quality standards and are backed by manufacturer support for fitment and function.
