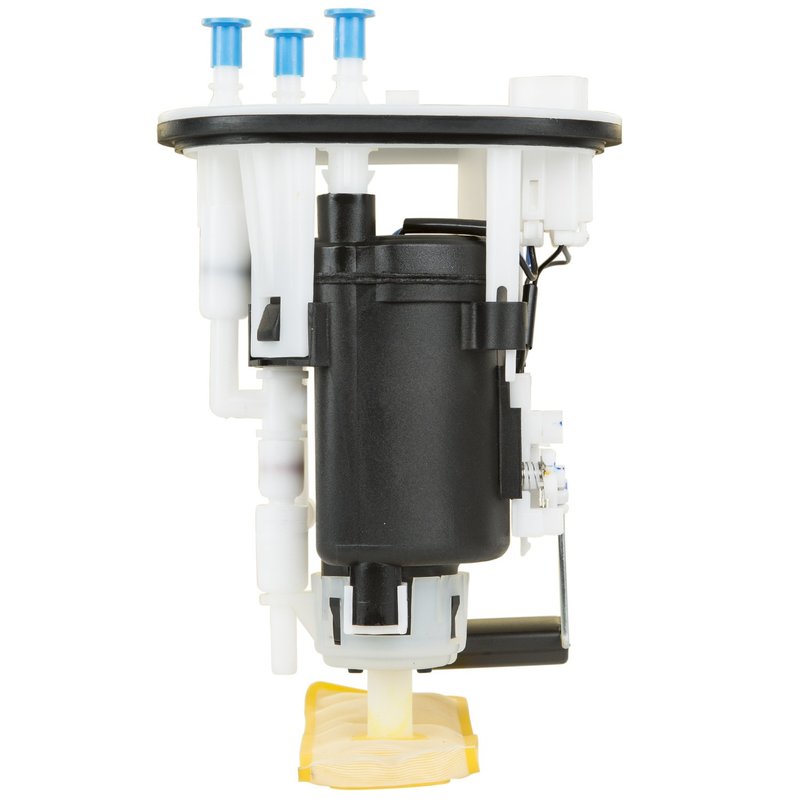

Delphi FG1258 Fuel Pump Module Assembly

Delphi FG1258 Fuel Pump Module Assembly

Delphi FG1258 is an in-tank electric fuel pump module assembly for gas applications, built for 12-volt systems and standard replacement service. It includes the fuel level sender assembly, strainer, gasket or seal, lock ring, and float arm for a complete fuel delivery service on select Hyundai Santa Fe models.

Fits 2003 Hyundai Santa Fe, N/A. Fits 2004-2006 Hyundai Santa Fe, N/A. Delphi FG1258 is a direct-fit fuel pump module assembly for Hyundai Santa Fe fuel system repair where OE-style electrical connection, quick-connect outlet design, and in-tank packaging are required.

Key Features

• In-tank electric fuel pump module assembly for gasoline applications
• 12.0-volt operation with blade terminals and 5-terminal connection
• Maximum pressure rating of 80.0 and system pressure of 44 psi
• Quick-connect outlet design with 3 outlet ports
• Fuel level sender assembly included for accurate tank level reporting
• Strainer, gasket or seal, lock ring, and float arm included
• Standard replacement grade for select Hyundai Santa Fe applications
• Delphi FG1258 cross-references Beck/Arnley 152-0998 and Carter P76405M for the same application

Detailed Description

Delphi FG1258 is engineered as an OE-style fuel pump module assembly for select 2003-2006 Hyundai Santa Fe vehicles. Delphi draws on long-standing OE supply experience, and that background is reflected in the module’s fitment-focused design, electrical configuration, and fuel delivery specifications. The unit is built for in-tank installation, uses an external strainer, and supports gasoline fuel systems with an average flow rating of 40 and average current draw of 8.

This fuel pump module assembly is a practical choice when replacing a worn pump, sender, or module on a Hyundai Santa Fe. The included fuel level sender assembly helps restore fuel gauge operation, while the quick-connect outlet and blade terminals support straightforward integration with the vehicle’s fuel system layout. Delphi FG1258 is also referenced by multiple aftermarket and OE-style part numbers, including Beck/Arnley 152-0998 and Carter P76405M.

Common Problems This Part Can Address

• Hard starting caused by weak fuel delivery
• Engine stalling from inconsistent fuel pressure
• Fuel gauge readings that no longer match tank level
• Low fuel pressure in an in-tank gasoline system
• Noise or wear associated with an aging fuel pump module

Installation Notes and Tips

Before installing a replacement fuel pump module assembly on a 2003-2006 Hyundai Santa Fe, clean the fuel tank to reduce the risk of contamination-related seal problems and premature pump failure. For 2003 Hyundai Santa Fe applications from 01/15/2003, tank cleaning is especially important; Delphi recommends using fuel tank cleaning kit FC01. Confirm the electrical connector, outlet style, and sender resistance requirements before installation.

Quality Assurance

Delphi builds this module using OE heritage and application knowledge developed through decades of supplying automakers. FG1258 is a standard replacement fuel pump module assembly intended to meet the needs of select Hyundai Santa Fe fuel system repairs with OE-style construction and fitment-focused components.
