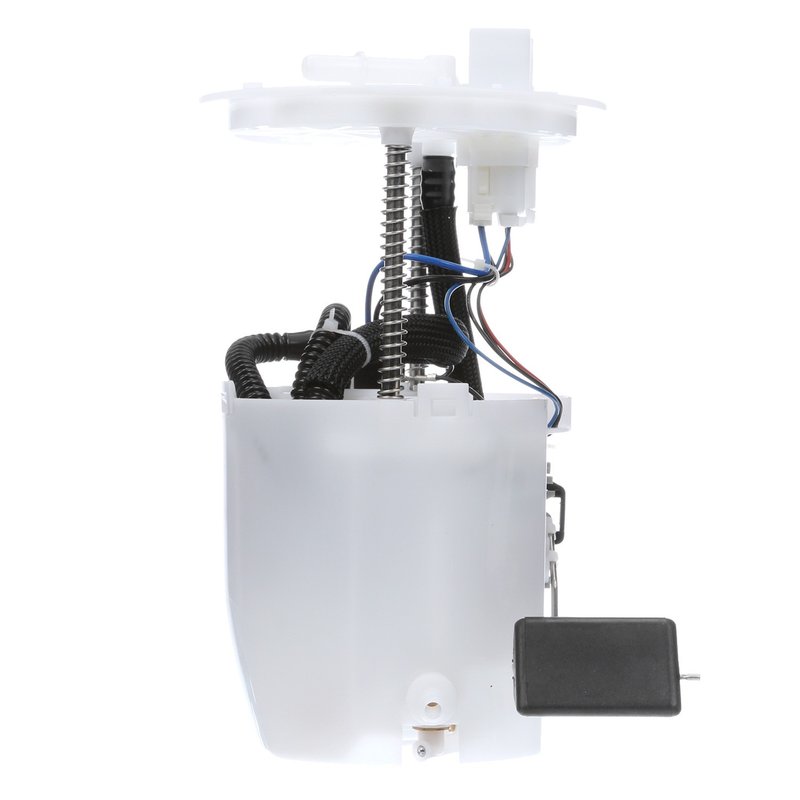

Delphi FG1265 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Mitsubishi Eclipse and Galant

The Delphi FG1265 fuel pump module assembly is designed specifically for Mitsubishi Eclipse and Galant models. This in-tank electric fuel pump ensures consistent fuel delivery and accurate fuel level readings, supporting optimal engine performance.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with gasoline fuel systems in Mitsubishi Eclipse and Galant
• 12.0-volt operation with a maximum pressure of 80 psi and system pressure of 44 psi
• Includes regulator, internal strainer, gasket, and seal for secure installation
• Blade-type male terminals with 5 terminal quantity for reliable electrical connections
• Quick connect outlet with 0.375-inch outside diameter for efficient fuel flow
• Average flow rating of 55 and average current draw of 8 amps

Technical Details of Delphi FG1265 Fuel Pump Module Assembly

The Delphi FG1265 is an electric in-tank fuel pump module assembly engineered for gas-powered Mitsubishi Eclipse and Galant vehicles. It features an internal strainer inlet and a quick connect outlet to maintain clean fuel delivery and ease of installation. The module includes a fuel level sender assembly with resistance values ranging from 7 ohms (full) to 45 ohms (empty), providing accurate fuel gauge readings. The pump operates at 12 volts with a maximum pressure rating of 80 psi and a system pressure of 44 psi, ensuring consistent fuel supply under various driving conditions. The assembly comes with a regulator, gasket, and seal to maintain system integrity and prevent leaks. The blade-type male terminals with five connections support secure electrical interfacing.

Applications and Common Issues Addressed

• Restores proper fuel delivery in Mitsubishi Eclipse and Galant models experiencing fuel starvation
• Resolves inaccurate fuel gauge readings due to faulty fuel level sender
• Eliminates fuel pressure fluctuations affecting engine performance
• Replaces worn or damaged in-tank fuel pump modules to prevent stalling or hard starts
• Addresses fuel contamination issues with the included internal strainer

Installation Notes and Tips

• Ensure vehicle compatibility with Mitsubishi Eclipse or Galant before installation
• Disconnect the battery and relieve fuel system pressure prior to removal
• Handle the fuel pump module carefully to avoid damage to the float arm and electrical terminals
• Use the included gasket and seal to prevent fuel leaks during reassembly
• Verify all electrical connections are secure and free of corrosion

Quality Assurance and Warranty Information

The Delphi FG1265 fuel pump module assembly is a standard replacement part manufactured to meet OEM specifications for Mitsubishi Eclipse and Galant vehicles. It undergoes rigorous testing to ensure reliable performance and durability. This product includes a fuel level sender assembly and is backed by Delphi's quality standards. Warranty coverage details should be confirmed at the point of purchase.
