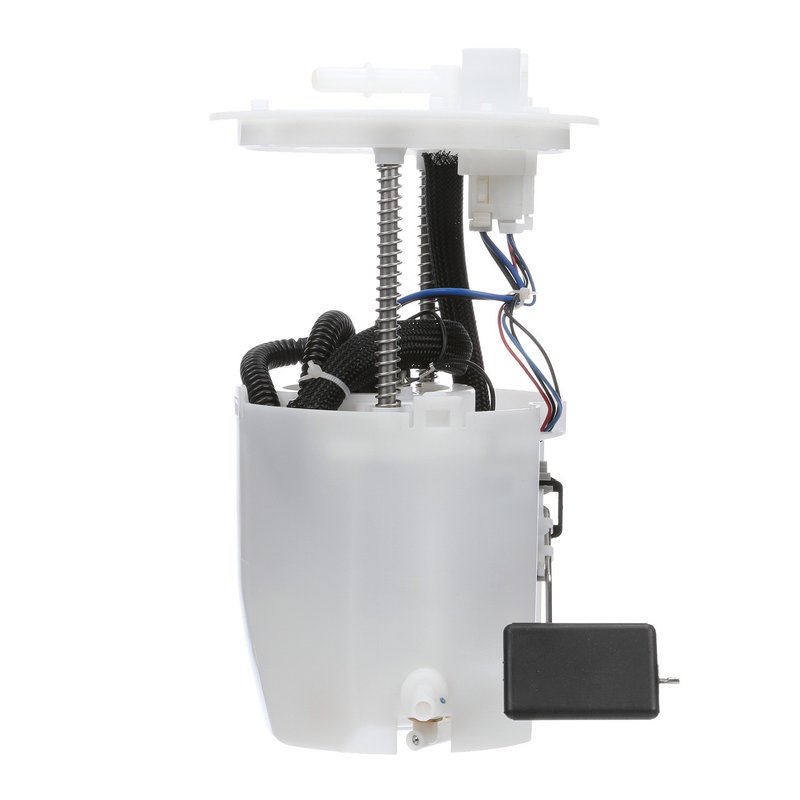

Delphi FG1266 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Mitsubishi Eclipse and Galant

The Delphi FG1266 fuel pump module assembly is designed to provide consistent fuel delivery for Mitsubishi Eclipse and Galant models. This in-tank electric fuel pump ensures proper fuel pressure and flow, supporting optimal engine performance.

• 12.0 Volt electric fuel pump with integrated regulator
• Compatible with gasoline fuel systems
• Includes fuel level sender assembly with float arm
• Internal strainer inlet and quick connect outlet (0.375 inch diameter)
• Maximum system pressure of 44 psi and maximum pump pressure of 47 psi
• Five male blade terminals for secure electrical connections
• Includes gasket and seal for proper installation
• Average flow rating of 23 gallons per hour and average current draw of 5 amps

Technical Details and Features

The Delphi FG1266 fuel pump module assembly is engineered as a standard replacement part for Mitsubishi Eclipse and Galant vehicles. It operates at 12 volts and is designed for gasoline fuel systems. The pump features an internal strainer inlet to prevent debris from entering the fuel system and a quick connect outlet with a 0.375-inch outside diameter for efficient fuel delivery. The assembly includes a fuel level sender with a float arm, allowing accurate fuel gauge readings. Electrical connections are made via five male blade terminals, ensuring reliable power supply. The pump maintains a system pressure of 44 psi and can handle a maximum pressure of 47 psi, supporting consistent engine performance under various driving conditions.

Compatible Vehicles and Applications

• Replacement fuel pump module for Mitsubishi Eclipse models
• Suitable for Mitsubishi Galant fuel systems
• Designed for in-tank installation in gasoline-powered vehicles
• Addresses fuel delivery issues such as low fuel pressure or inconsistent fuel gauge readings
• Ideal for restoring proper fuel system function in affected Mitsubishi models

Installation Notes and Tips

When installing the Delphi FG1266 fuel pump module assembly, ensure the vehicle’s fuel tank is properly drained and cleaned to prevent contamination. The included gasket and seal should be installed carefully to avoid leaks. Verify electrical connections to the five blade terminals are secure and free of corrosion. Since this is an in-tank pump, handle the assembly with care to avoid damage to the internal strainer and fuel level sender components. Follow manufacturer instructions included in the package for proper installation procedures.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for fit and function. The FG1266 part number undergoes rigorous testing to ensure durability and reliable performance in Mitsubishi Eclipse and Galant vehicles. This standard replacement grade component includes a gasket, seal, and instruction sheet to support proper installation. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
