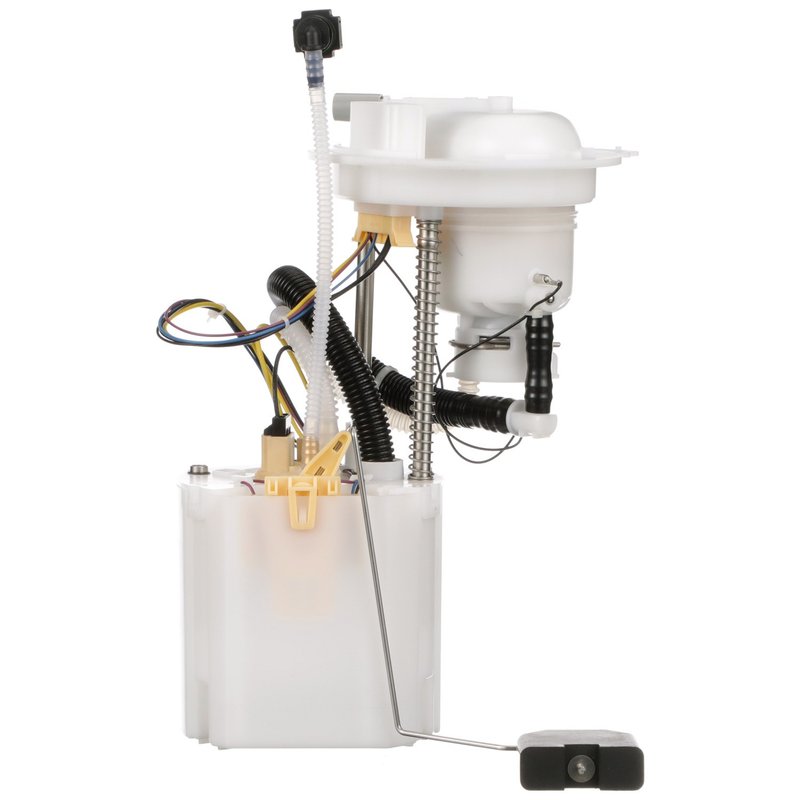

Delphi FG1268 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Volkswagen CC and Passat

The Delphi FG1268 fuel pump module assembly is designed specifically for Volkswagen CC and Passat models, providing consistent fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures optimal performance for gasoline engines requiring a 12-volt system.

Key Features of Delphi FG1268 Fuel Pump Module

• Outlet outside diameter: 0.313 inches for precise fuel line connection
• Operates at 12.0 volts suitable for standard automotive electrical systems
• Includes an internal fuel pressure regulator maintaining up to 87 psi maximum pressure
• Equipped with a built-in fuel level sender assembly for accurate fuel gauge readings
• Features a quick connect outlet type and blade terminal type with 5 male terminals
• Internal strainer included to filter fuel before pump intake
• Average flow rating of 37 liters per hour supports efficient fuel delivery
• Designed as an in-tank electric pump module assembly compatible with gasoline fuel

Detailed Description of the Delphi FG1268 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG1268) is engineered for Volkswagen CC and Passat vehicles requiring a reliable in-tank fuel delivery system. The electric pump operates at 12 volts and includes an internal regulator to maintain system pressure at 80 psi, with a maximum pressure rating of 87 psi. The module features a quick connect outlet with a 0.313-inch diameter, ensuring secure and leak-free fuel line attachment. The integrated fuel level sender assembly provides accurate fuel level data to the vehicle’s dashboard. The internal strainer protects the pump by filtering contaminants before fuel enters the system. With five male blade terminals, the module supports stable electrical connections. This standard replacement grade part is supplied with a float arm, seal, and installation instructions for straightforward installation.

Common Applications and Issues Addressed

• Restores proper fuel pressure and flow in Volkswagen CC and Passat models
• Resolves fuel gauge inaccuracies caused by faulty fuel level sender assemblies
• Eliminates engine performance issues related to weak or failing fuel pumps
• Prevents fuel delivery interruptions due to clogged or damaged internal strainers
• Replaces worn or damaged in-tank fuel pump modules to maintain engine reliability

Installation Notes and Tips

• Ensure vehicle battery is disconnected before beginning installation to avoid electrical hazards
• Verify compatibility with Volkswagen CC or Passat model year before installation
• Handle the fuel pump module carefully to avoid damage to the float arm and terminals
• Use the included seal to prevent fuel leaks and ensure proper tank sealing
• Follow the provided instruction sheet for step-by-step installation guidance

Quality Assurance and Warranty Information

The Delphi FG1268 fuel pump module assembly is manufactured to meet OEM specifications for Volkswagen vehicles. This standard replacement part undergoes rigorous quality control to ensure durability and reliable operation. While specific warranty terms may vary, Delphi products typically include a limited warranty covering defects in materials and workmanship. Refer to the product documentation or supplier for detailed warranty information.
