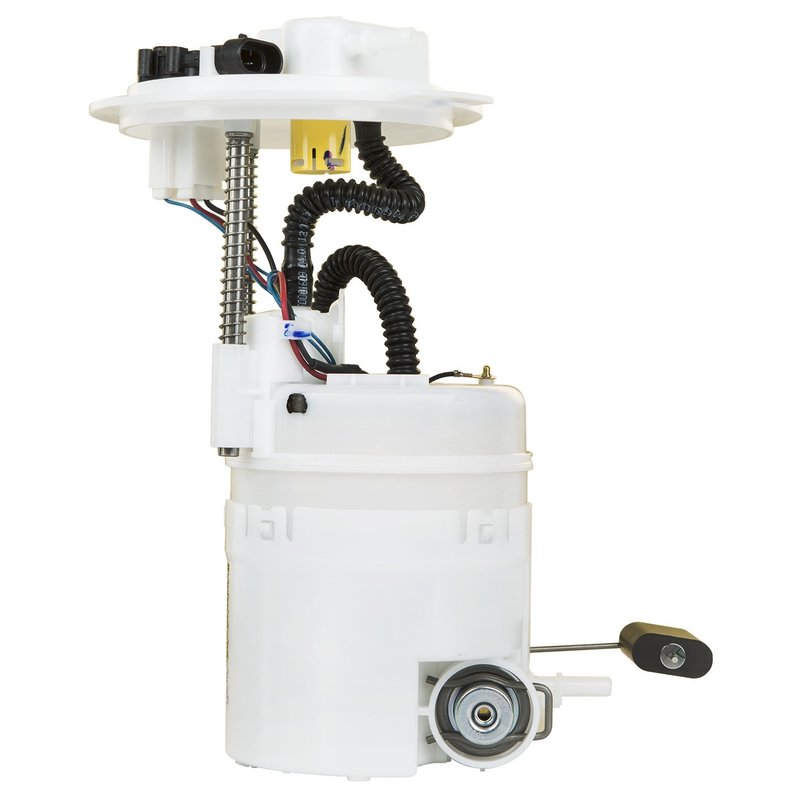

Delphi FG1272 Fuel Pump Module Assembly - Left

Delphi Fuel Pump Module Assembly for Hyundai Santa Fe

The Delphi FG1272 fuel pump module assembly is designed specifically for Hyundai Santa Fe models requiring a reliable in-tank electric fuel pump. Engineered to deliver consistent fuel flow and pressure, this module ensures optimal engine performance and fuel efficiency.

• Electric fuel pump with 12.0 volts operation
• Includes internal strainer and fuel level sender assembly
• Maximum pressure rating of 80 psi with system pressure at 51 psi
• Quick connect outlet type with 0.313 inch outside diameter
• Blade-type male terminals with 4-terminal configuration
• Compatible with gasoline fuel systems
• Standard replacement grade for dependable performance
• Includes regulator and vapor pressure sensor for precise fuel management

Technical Details and Features

The Delphi FG1272 fuel pump module assembly is an in-tank electric pump designed for Hyundai Santa Fe vehicles. It operates at 12 volts and features a maximum pressure capacity of 80 psi, supporting a system pressure of 51 psi to maintain consistent fuel delivery. The pump includes an internal strainer and a fuel level sender assembly with a float arm, providing accurate fuel level readings. The outlet is a quick connect type with a 0.313 inch outside diameter, and the module uses blade-type male terminals with four connections to ensure secure electrical contact. This assembly is compatible with gasoline fuel systems and includes a regulator and vapor pressure sensor to optimize fuel pressure and emissions control.

Common Applications and Problem Resolution

• Replaces failing or noisy fuel pumps in Hyundai Santa Fe models
• Resolves fuel delivery issues causing engine hesitation or stalling
• Corrects inaccurate fuel level readings due to faulty sender units
• Addresses low fuel pressure problems affecting engine performance
• Eliminates vapor lock and fuel system pressure inconsistencies

Installation Notes and Tips

Installation of the Delphi FG1272 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. Use appropriate tools to carefully disconnect the quick connect fuel lines and electrical terminals. Verify that the new module’s terminal configuration and outlet size match the original equipment. After installation, check for fuel leaks and proper fuel pressure operation before completing the job.

Quality Assurance and Warranty

This Delphi fuel pump module assembly is manufactured to meet or exceed OEM specifications for Hyundai Santa Fe vehicles. It is a standard replacement grade part designed for reliable operation and durability. The product includes a fuel level sender assembly and vapor pressure sensor to maintain system integrity. Delphi provides a limited warranty covering defects in materials and workmanship, ensuring confidence in the product’s performance.
