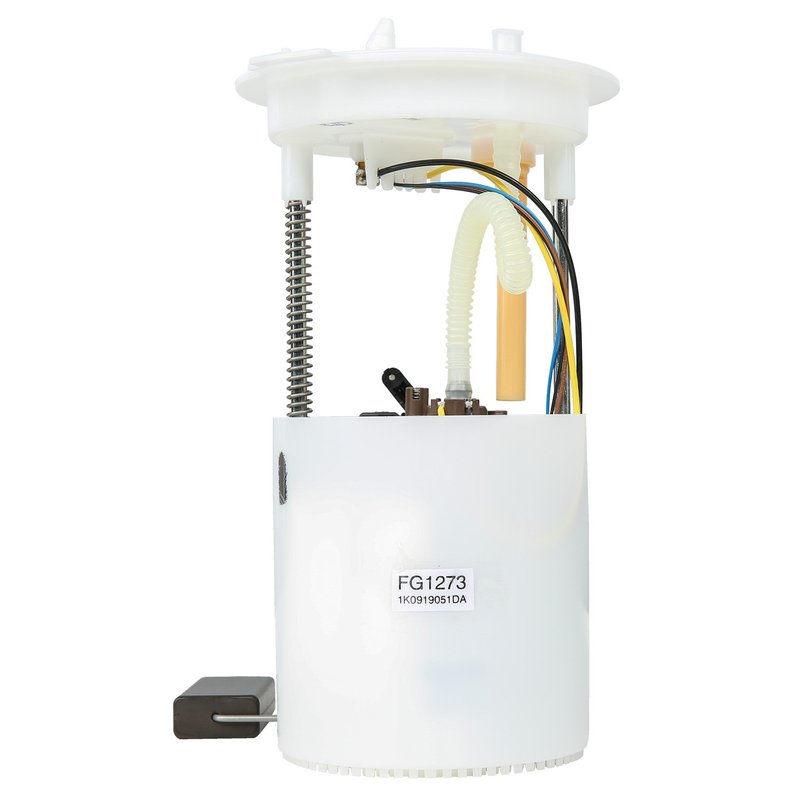

Delphi FG1273 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Volkswagen Vehicles

The Delphi FG1273 fuel pump module assembly is designed specifically for Volkswagen Beetle, Golf, and Jetta models. This in-tank electric fuel pump ensures consistent fuel delivery and accurate fuel level readings for optimal engine performance.

• Electric fuel pump with 12.0 voltage operation
• Compatible with gasoline fuel systems
• Includes internal strainer and fuel level sender assembly
• Quick connect outlet with 0.313 inch outside diameter
• System pressure rated at 51 psi with maximum pressure of 87 psi
• Blade-type male terminals, 5 in total
• Average flow rating of 29 liters per hour and average current draw of 8 amps

Technical Details and Features

The Delphi FG1273 fuel pump module assembly is engineered as a standard replacement part for Volkswagen Beetle, Golf, and Jetta models. It operates at 12 volts and is designed for gasoline fuel systems. The pump features an internal strainer inlet and a quick connect outlet with two outlets measuring 0.313 inches in diameter. It delivers a system pressure of 51 psi and can handle a maximum pressure of 87 psi, ensuring reliable fuel flow under various driving conditions.

The module includes a fuel level sender assembly with resistance values ranging from 52 ohms (empty) to 292 ohms (full), providing accurate fuel gauge readings. The pump uses blade-type male terminals with a total of five terminals for secure electrical connections. The average current draw is 8 amps, and the average flow rating is 29 liters per hour, suitable for maintaining proper fuel delivery in the specified Volkswagen models.

Compatible Volkswagen Models and Applications

This fuel pump module assembly is compatible with the following Volkswagen vehicles:

• Volkswagen Beetle
• Volkswagen Golf
• Volkswagen Jetta

It is designed for in-tank installation and is intended to replace the original fuel pump module assembly in these models, ensuring proper fit and function.

Common Issues Addressed by the Delphi FG1273 Fuel Pump

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel level readings on the dashboard
• Reduced fuel pressure leading to poor engine performance
• Fuel pump noise or failure due to clogged or damaged internal strainer
• Electrical connection problems affecting pump operation

Installation Notes and Tips

When installing the Delphi FG1273 fuel pump module assembly, ensure the vehicle’s battery is disconnected to prevent electrical hazards. The module is designed for in-tank installation and includes a float arm for fuel level sensing. Verify that the quick connect outlets and blade terminals are properly secured to avoid fuel leaks and electrical issues. It is recommended to inspect the fuel tank and clean any debris before installation to prolong pump life.

Quality Assurance and Warranty Information

The Delphi FG1273 is a standard replacement grade fuel pump module assembly manufactured to meet OEM specifications for Volkswagen Beetle, Golf, and Jetta models. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Always refer to the product documentation for exact warranty terms.
