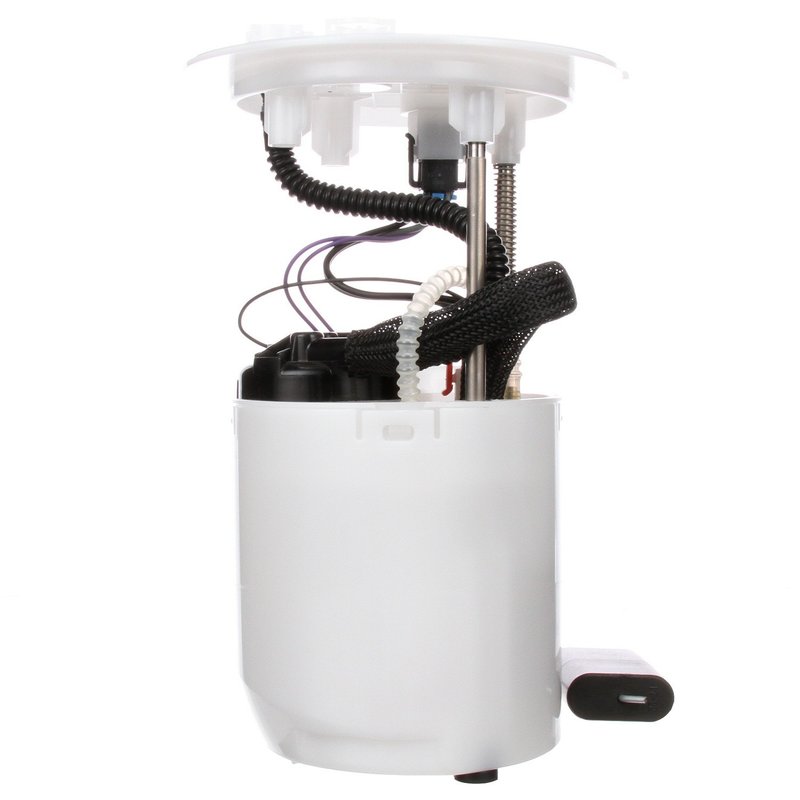

Delphi FG1274 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Toyota Sienna

The Delphi FG1274 fuel pump module assembly is designed specifically for Toyota Sienna models requiring a dependable in-tank fuel delivery solution. This electric fuel pump module ensures consistent fuel pressure and flow, supporting optimal engine performance.

• Outlet outside diameter: 0.313 inches
• Operates at 12.0 volts for standard automotive electrical systems
• Compatible with gasoline fuel type
• Includes integrated fuel pressure regulator
• Maximum pressure rating of 80 psi
• Blade-type male terminals with four connections
• Comes with gasket and internal strainer for fuel filtration
• Push-in outlet type with a single outlet port
• In-tank installation with internal strainer and fuel level sender assembly included
• Average current draw of 9 amps and flow rating of 20 liters per hour
• Standard replacement grade for reliable performance

Detailed Product Description

The Delphi FG1274 fuel pump module assembly is engineered for use in Toyota Sienna vehicles, providing a precise fuel delivery system that maintains a system pressure of 58 psi. This electric pump module features an internal strainer and fuel level sender assembly, ensuring clean fuel supply and accurate fuel level readings. The included regulator maintains consistent fuel pressure up to 80 psi, supporting efficient engine operation. The module’s blade-type male terminals with four connections facilitate secure electrical integration, while the included gasket ensures a proper seal during installation. Designed for gasoline fuel systems, this in-tank pump module offers a push-in outlet for straightforward connection to the fuel line.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Toyota Sienna
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel level readings due to faulty sender assembly
• Addresses fuel delivery interruptions from clogged or damaged strainers
• Eliminates electrical connection problems with reliable blade terminal design

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to prevent electrical hazards
• Verify compatibility with Toyota Sienna model year and fuel system specifications
• Use the included gasket to prevent fuel leaks and maintain proper sealing
• Handle the fuel level sender assembly carefully to avoid damage
• Follow manufacturer instructions for torque specifications on mounting components

Quality Assurance and Warranty

The Delphi FG1274 fuel pump module assembly is manufactured to meet standard replacement quality requirements, ensuring reliable operation within Toyota Sienna fuel systems. The product includes a fuel level sender assembly and internal strainer to maintain fuel cleanliness and accurate fuel monitoring. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Refer to the product documentation for exact warranty terms.
