Delphi FG1275 Fuel Pump Module Assembly
OE Quality 60-Day Returns
Delphi

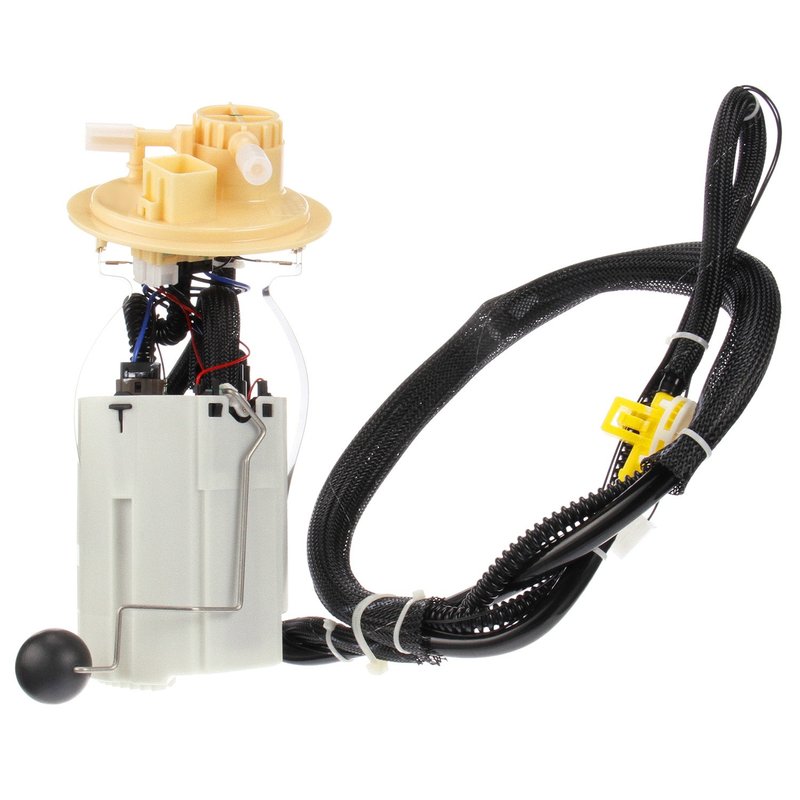

Delphi FG1275 Fuel Pump Module Assembly

Brand Delphi FG1275
Average Current Draw 10
Average Flow Rating 49
Fuel Level Sender Assembly Included Yes
Fuel Type Gas
Gasket Or Seal Included No
In Tank or External In Tank
Inlet Type Strainer
Internal Or External Strainer Internal
Item Grade Standard Replacement
Lock Ring Included No
Maximum Pressure 106.0
Outlet Outside Diameter 0.313
Outlet Quantity 3
Outlet Type Quick Connect
Package Contents Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet
Pump Type Electric
Regulator Included No
Resistance Ohms Empty 392.0
Resistance Ohms Full 12.0
Strainer Included Yes
System Pressure 55 psi
Terminal Gender Male
Terminal Quantity 7
Terminal Type Blade
Vapor Pressure Sensor No
Voltage 12.0
Fits Volvo · 31 vehicles

Standard replacement. Built as a fuel pump module assembly for straightforward service.

Electric pump. Delivers 49 average flow rating with 106 maximum pressure.

OE heritage. Backed by 100 years of OE experience and supplier knowledge.

Cross-references Bosch 69958, Carter P76325M and URO 30761745 for the same application. See all 19.

$86.07Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $86.07
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Fuel Pump Module Assembly options

Delphi FG1275 Fuel Pump Module Assembly

The Delphi FG1275 fuel pump module assembly is a standard replacement for select Volvo applications, including XC90, S60, S80, XC70, and V70 models. Built from Delphi’s OE heritage and fuel system experience, it combines an in-tank electric pump, fuel level sender, and strainer in one service assembly.

  • 12.0-volt electric in-tank fuel pump module
  • Maximum pressure: 106.0
  • Average flow rating: 49
  • Average current draw: 10
  • Fuel level sender assembly included
  • Internal strainer included
  • Quick-connect outlet type with 3 outlets
  • Blade terminals, 7-terminal male connection
  • Gas fuel type
  • Standard replacement grade for select Volvo fuel systems

OE-Style Fuel Delivery Performance

Delphi FG1275 is engineered for direct fuel delivery service in select Volvo XC90 and Volvo S60 applications, along with S80, XC70, and V70 fitments listed below. The module is built for in-tank operation and includes the fuel level sender assembly, helping restore fuel delivery and tank level reporting in one repair. Delphi’s OE background and broad aftermarket coverage are reflected in the module’s design and application coverage.

This part cross-references Bosch 69958 and Carter P76325M for the same application.

Vehicle Fitment

  • Fits 2005-2014 Volvo XC90, N/A. Notes: Clean fuel tank before installing fuel pump to prevent future seal problems.
  • Fits 2005-2007 Volvo S60, N/A. Notes: Clean fuel tank before installing fuel pump to prevent future seal problems.
  • Fits 2005-2006 Volvo S60, N/A. Notes: with Plastic Tank; fuel tank contamination is the leading cause of premature fuel pump failure. Use of fuel tank cleaning kit FC01 is recommended.
  • Fits 2005-2006 Volvo S80, N/A. Notes: Clean fuel tank before installing fuel pump to prevent future seal problems.
  • Fits 2005-2006 Volvo XC70, N/A. Notes: Clean fuel tank before installing fuel pump to prevent future seal problems.
  • Fits 2005 Volvo S60, N/A. Notes: From Chassis # 425140; with Plastic Tank; fuel tank contamination is the leading cause of premature fuel pump failure. Use of fuel tank cleaning kit FC01 is recommended.
  • Fits 2005 Volvo S60, N/A. Notes: From Chassis # 425140; fuel tank contamination is the leading cause of premature fuel pump failure. Use of fuel tank cleaning kit FC01 is recommended.
  • Fits 2005 Volvo V70, N/A. Notes: with Plastic Tank; fuel tank contamination is the leading cause of premature fuel pump failure. Use of fuel tank cleaning kit FC01 is recommended.
  • Fits 2005 Volvo XC90, N/A. Notes: From Chassis # 167187; fuel tank contamination is the leading cause of premature fuel pump failure. Use of fuel tank cleaning kit FC01 is recommended.
  • Fits 2005 Volvo XC90, N/A. Notes: with 18 Gallon Tank; To Chassis # 167186; fuel tank contamination is the leading cause of premature fuel pump failure. Use of fuel tank cleaning kit FC01 is recommended.
  • Fits 2003-2004 Volvo XC90, N/A. Notes: with 18 Gallon Tank; fuel tank contamination is the leading cause of premature fuel pump failure. Use of fuel tank cleaning kit FC01 is recommended.

What This Pump Module Helps Address

  • Hard starting caused by weak or failing fuel delivery
  • Engine stalling from inconsistent in-tank pump output
  • Incorrect fuel level readings from a worn sender assembly
  • Low fuel pressure conditions in select Volvo fuel systems
  • Fuel starvation symptoms related to a contaminated tank or restricted strainer

Installation Notes

Before installing the Delphi FG1275, clean the fuel tank thoroughly to reduce the risk of repeat pump failure and seal issues. Several listed Volvo applications call for plastic tank or chassis-specific verification, so confirm the exact vehicle configuration before service. The package includes the fuel pump module assembly with float arm, seal, and instruction sheet; no regulator, lock ring, or gasket/seal beyond the included seal is listed.

Quality Assurance

Delphi draws on more than a century of OE experience and supplier knowledge used by major automakers. That OE background is built into this fuel pump module assembly, along with application coverage for a wide range of Volvo model years.

Related reading

This part fits 31 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelDrive TypePositionNotes
2014VolvoXC90——N/AClean fuel tank before installing fuel pump to prevent future seal problems.
2013VolvoXC90——N/AClean fuel tank before installing fuel pump to prevent future seal problems.
2012VolvoXC90——N/AClean fuel tank before installing fuel pump to prevent future seal problems.
2011VolvoXC90——N/AClean fuel tank before installing fuel pump to prevent future seal problems.
2010VolvoXC90——N/AClean fuel tank before installing fuel pump to prevent future seal problems.
2009VolvoXC90——N/AClean fuel tank before installing fuel pump to prevent future seal problems.
2008VolvoXC90——N/AClean fuel tank before installing fuel pump to prevent future seal problems.
2007VolvoS60R—N/AClean fuel tank before installing fuel pump to prevent future seal problems.
2007VolvoXC90——N/AClean fuel tank before installing fuel pump to prevent future seal problems.
2006VolvoS60R—N/AClean fuel tank before installing fuel pump to prevent future seal problems.
2006VolvoS602.5T—N/Awith Plastic Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2006VolvoS60T5—N/Awith Plastic Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2006VolvoS802.5T AWD—N/AClean fuel tank before installing fuel pump to prevent future seal problems.
2006VolvoS80—FWDN/AClean fuel tank before installing fuel pump to prevent future seal problems.
2006VolvoXC70Base—N/AClean fuel tank before installing fuel pump to prevent future seal problems.
2006VolvoXC90——N/AClean fuel tank before installing fuel pump to prevent future seal problems.
2006VolvoXC90—FWDN/AClean fuel tank before installing fuel pump to prevent future seal problems.
2005VolvoS60R—N/AClean fuel tank before installing fuel pump to prevent future seal problems.
2005VolvoS602.5T—N/AFrom Chassis # 425140; with Plastic Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2005VolvoS602.5T AWD—N/AFrom Chassis # 425140; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2005VolvoS60T5—N/Awith Plastic Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2005VolvoS602.4—N/AFrom Chassis # 425140; with Plastic Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2005VolvoS802.5T AWD—N/AClean fuel tank before installing fuel pump to prevent future seal problems.
2005VolvoS80—FWDN/AClean fuel tank before installing fuel pump to prevent future seal problems.
2005VolvoV70T5—N/Awith Plastic Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2005VolvoXC70Base—N/AClean fuel tank before installing fuel pump to prevent future seal problems.
2005VolvoXC90——N/AClean fuel tank before installing fuel pump to prevent future seal problems.
2005VolvoXC90—FWDN/AFrom Chassis # 167187; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2005VolvoXC90——N/Awith 18 Gallon Tank; To Chassis # 167186; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2004VolvoXC90——N/Awith 18 Gallon Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2003VolvoXC90——N/Awith 18 Gallon Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
Directly replaces or cross-references 19 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Bosch — 69958Carter — P76325MURO — 307617453074199430741994-030761745-03079244930792449-03126113331261133-03126113731261137-03126181931261819-0A41013DFG1275E8846MSP5068MSP5106M
